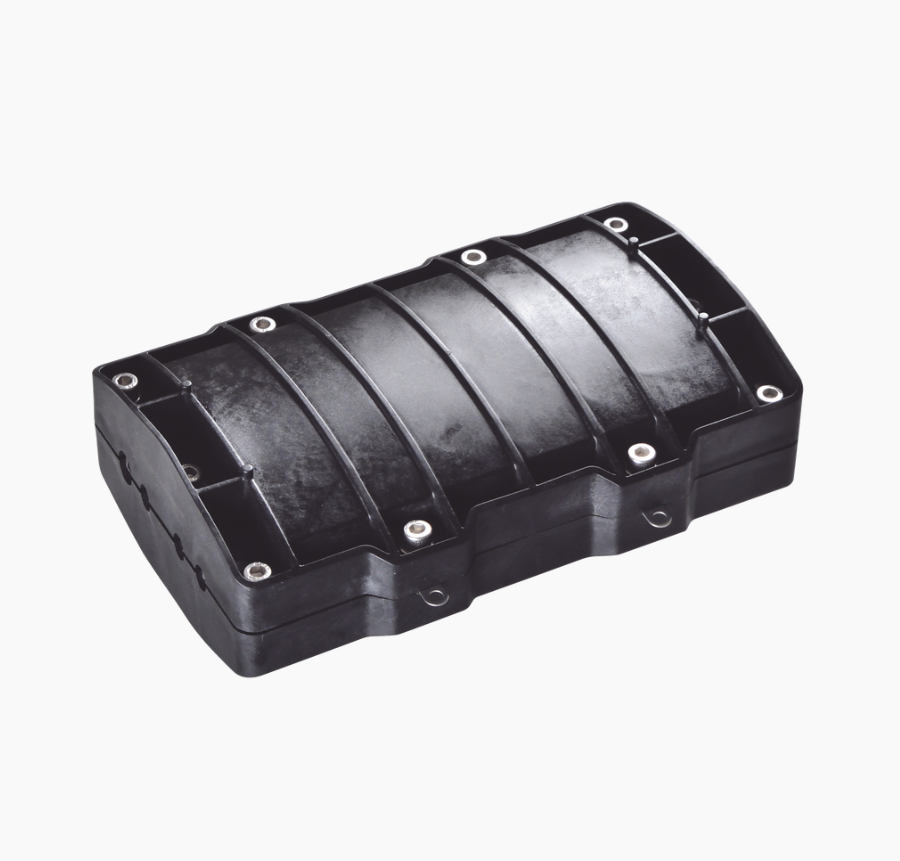

Epcom LPSC320-H8 Fiberhome Fiber Splice Closure up to 48 splices Outdoor IP68

The Epcom LPSC320-H8 is an outdoor fiber splice closure engineered for reliable protection of fusion splices in demanding field environments. Its horizontal, mechanically locked enclosure is constructed from high-impact polypropylene, providing a rugged and weather-resistant housing suited for both aerial and duct installation scenarios. Rated IP68, the closure delivers continuous protection against dust ingress and sustained water immersion, making it a dependable choice for outside-plant fiber deployments where long-term environmental integrity is critical. Supporting up to 48 splices and accommodating multiple cable entry configurations, the LPSC320-H8 offers the flexibility installation teams need for trunk, distribution, and drop-point applications in telecommunications, municipal broadband, and campus fiber networks.

Key features & benefits

• Horizontal Design with Mechanical Lock — The horizontal form factor and integrated mechanical locking mechanism ensure a secure, repeatable seal every time the closure is accessed, reducing the risk of accidental opening or misalignment in aerial or duct-mounted installations.
• IP68 Outdoor Rating — Full IP68 certification confirms protection against both total dust ingress and prolonged water immersion, giving outside-plant technicians confidence that splices remain protected in direct-buried, conduit, or aerial exposure conditions.

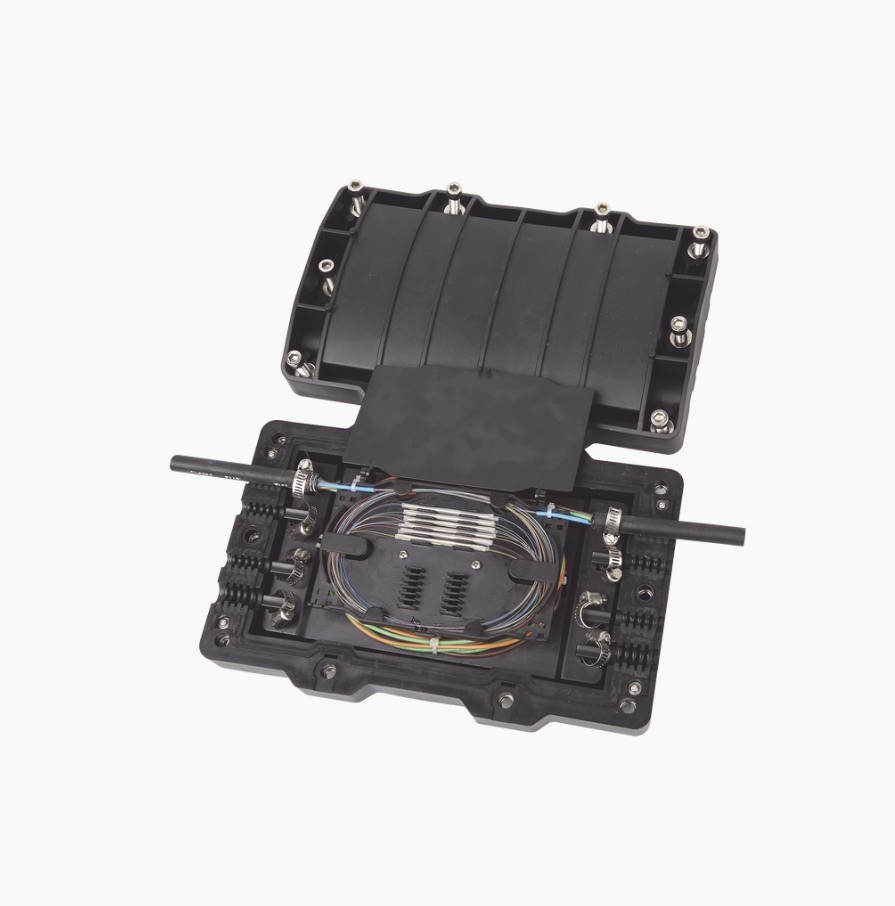

• Up to 48 Fusion Splices — The closure accommodates up to 48 individual fusion splices, making it suitable for high-fiber-count trunk cables as well as mid-span access points where multiple distribution fibers are spliced in a single location.
• Flexible Cable Entry Ports — Six small cable entry ports sized for Ø 6–8 mm cables and two large ports sized for Ø 9–12 mm cables provide versatile routing options for mixed cable diameters, minimizing the need for additional adapters in the field.
• High-Impact Polypropylene Construction — The enclosure body is molded from polypropylene selected for high impact resistance, delivering a strong yet lightweight housing that withstands the mechanical stresses of installation, temperature cycling, and UV exposure inherent in outdoor plant environments.
• Aerial and Duct Installation Versatility — Designed to support both aerial lashing and conduit/duct deployment, the LPSC320-H8 adapts to a wide range of outside-plant topologies without requiring separate hardware variants, streamlining inventory for contractors and network operators.
• Compatibility with ADSS, Mini ADSS, and Mini Figure 8 Fiber — Native compatibility with ADSS, Mini ADSS, and Mini Figure 8 cable types means the closure integrates directly with the most common self-supporting and lightweight fiber cable constructions used in modern fiber-to-the-premises and backhaul deployments.
• Complete Installation Kit Included — Every unit ships with 48 fusion splice protection sleeves (60 mm), nylon ties, a bare fiber protection tube, plastic dummy plugs, a spanner, waterproof cement, insulating tape, hanging line installation accessories, and an instruction manual, enabling a fully self-contained installation without sourcing additional consumables.
