FIRE-LITE
Firelite BG-12L Dual-Action Manual Pull Station ADA Fire Alarm
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
PRODUCT OVERVIEW

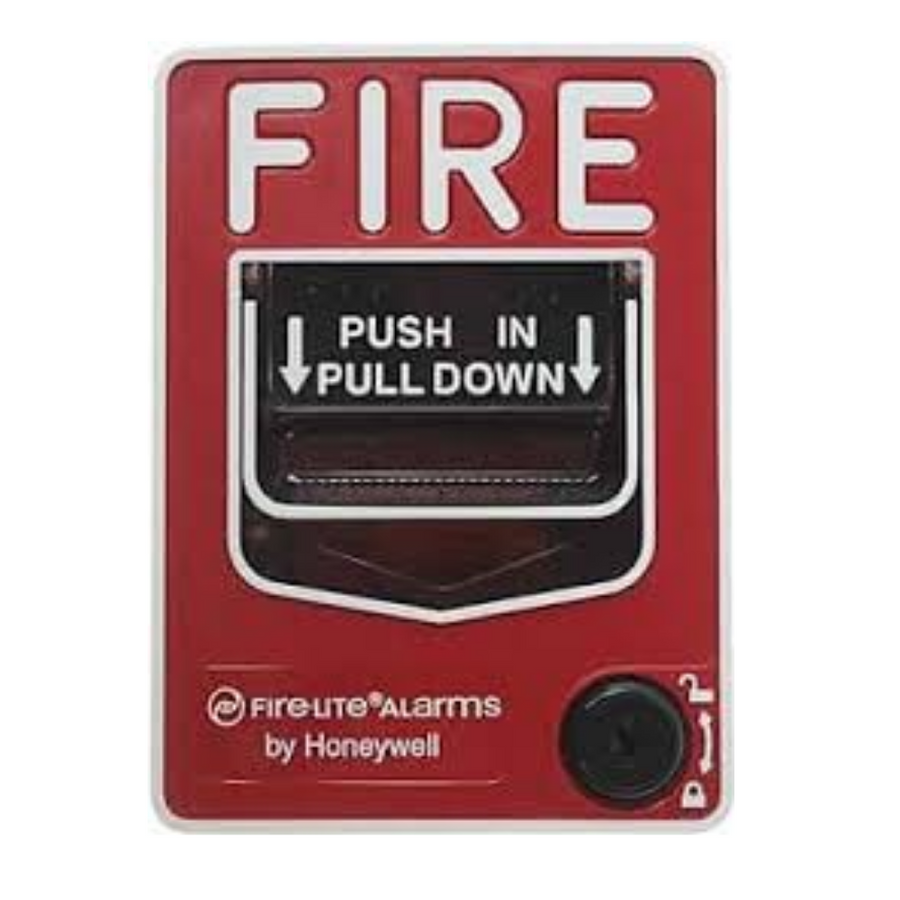

The Fire-Lite BG-12L is a non-coded, dual-action manual pull station that provides one alarm initiating input. Its durable polycarbonate construction, key-lock reset, and ADA-compliant operation make it suitable for fire alarm systems.
PRODUCT TYPE
Fire Alarm
KEY FEATURES
• Non-coded dual-action manual pull station
• Requires push-in then pull-down operation to initiate an alarm
• Provides one fire alarm initiating input
• Dual-action design helps reduce accidental activations
• Key-lock reset allows authorized personnel to restore the station
• SPST normally open switch
• Screw terminals accept wiring up to 12 AWG
• Durable polycarbonate housing
• Molded operating instructions with Braille
• UL 38 Listed for manually actuated signaling boxes
• Pull force of 5 lbs or less to meet ADA guidance
TECHNICAL SPECIFICATIONS
• Brand: Fire-Lite
• Model: BG-12L
• Device Type: Manual Pull Station
• Operation: Non-coded, dual-action
• Contact Type: SPST Normally Open
• Reset Method: Key-lock reset
• Terminal Type: Screw terminals
• Maximum Wire Size: 12 AWG
• Housing Material: Polycarbonate
• Operating Force: 5 lbs maximum
• Compliance: ADA guidance
• Listing: UL 38
• Weight: 0.6 lb
• Dimensions: 9 × 6 × 3 in
