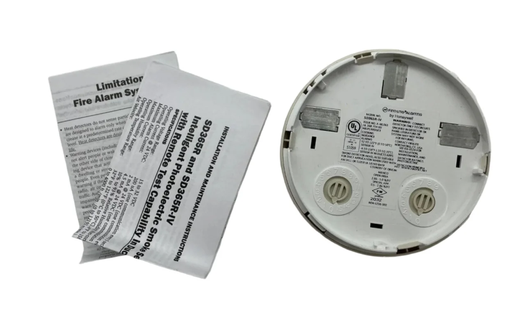

Firelite SD365R-IV Intelligent Addressable Photoelectric Smoke Detector

PRODUCT OVERVIEW

The Fire-Lite SD365R-IV is an intelligent addressable plug-in photoelectric smoke detector with remote test capability for compatible Fire-Lite addressable fire alarm control panels. Designed for use with System Sensor DNR and DNRW duct detector housings.

PRODUCT TYPE

Fire Alarm

KEY FEATURES

• Intelligent addressable plug-in photoelectric smoke detector
• Remote test capability supported through compatible Fire-Lite control panels
• Supports LiteSpeed and CLIP SLC communication protocols
• Enhanced optical sensing chamber for smoke detection
• Rotary decimal addressing for detector point identification
• Two integrated status LEDs that blink during polling and latch during alarm
• Built-in functional test switch activated using an external magnet
• Designed for use with System Sensor DNR and DNRW duct detector housings
• Compatible with multiple Fire-Lite intelligent detector bases and accessories

TECHNICAL SPECIFICATIONS

• Brand: Fire-Lite
• Model: SD365R-IV
• Color: Ivory
• Detector Type: Intelligent addressable photoelectric smoke detector
• Remote Test: Supported
• Communication Loop: Fire-Lite SLC
• Supported Protocols: LiteSpeed and CLIP
• Operating Voltage: 15 to 32 VDC peak (from SLC)
• Standby Current: 200 μA maximum average at 24 VDC (LED enabled)
• Alarm Current: 4.5 mA maximum at 24 VDC
• Status Indicators: Two LEDs
• Addressing: Rotary decimal switches
• Functional Test: External magnet-activated test switch
• Operating Temperature (Installed in DNR/DNRW Housing): -4°F to 158°F (-20°C to 70°C)
• Humidity Range: 10% to 93% RH, non-condensing
• Compatible Mounting Bases:
• B300-6-IV 6-inch standard flanged low-profile base
• B501-IV 4-inch flangeless base
• B200S-IV intelligent addressable sounder base (LiteSpeed)
• B224BI-IV isolator detector base
• B224RB-IV relay detector base
• Compatible Accessories:
• RA100Z remote LED annunciator (3–32 VDC; for use with B501 and B300-6)
• TR300-IV trim ring
• System Compatibility: Compatible with Fire-Lite intelligent addressable fire alarm control panels supporting LiteSpeed and CLIP protocols on the SLC loop

INTENDED USE / APPLICATIONS

Designed for intelligent addressable smoke detection in System Sensor DNR and DNRW duct detector housings used with compatible Fire-Lite addressable fire alarm control panels.
