Cambium Networks FORCE-300-US Force 300-25 5GHz 25dBi Sector Antenna 802.11ac
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
Force 300-25 5 GHz (US)
The high-capacity, low-latency wireless solution for demanding network backbones.
Quality of Service (QoS)
A powerful multi-level prioritization scheme configurable by the network operator to enable differentiated service delivery.
Robust Security
128-bit AES encryption, L2 and L3 firewall rules, multi-level user support, HTTP/SSH support provide enhanced security.
Flexible Operation Modes
Provides extremely low latency for PTP deployments, highly scalable non‑GPS sync mode, and TDD operation for synchronized towers.
New Channel Size & Modulation
Supports channel sizes from 20 MHz to 80 MHz and modulation up to 256 QAM.

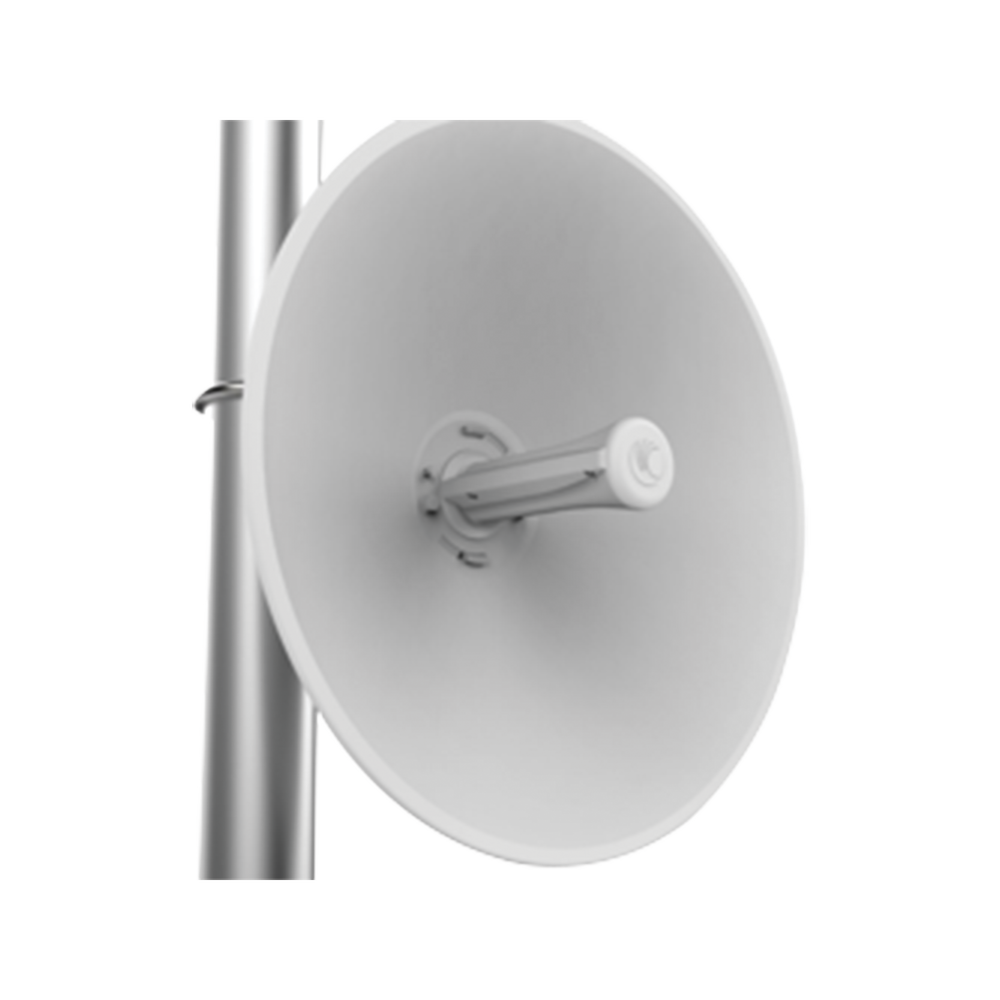

Cambium Force 300-25 Integrated Unit
INTEGRATED LIVE SPECTRUM ANALYZER
Allows continuous radio spectrum monitoring and live action without dropping or disrupting the link.
Technical Specifications
| MIMO & Modulation: | 2x2 MIMO / OFDM |
| Frequency Range: | 5.150–5.970 GHz (country dependent) |
| Max Output Power: | 0 to +27 dBm |
| Antenna Gain: | 25 dBi |
| Channel Width: | (1x20, 1x40, 1x80 MHz) |
| Channel Spacing: | Configurable in 5 MHz steps |
| Ethernet Interface: | 10/100/1000BaseT, auto-negotiated |
| Input Voltage / PoE: | 30 V (Cambium PoE or Standard PoE) |
| Max Power Consumption: | 12 Watts |
| Outdoor Protection: | IP55 Weatherproof |
| MAC Layer / Protocols: | Cambium Proprietary / IPv4, UDP, TCP, IP, ICMP, STP, IGMP Snooping |
| Management: | HTTPS, SSH, SNMPv2c, VLAN 802.1Q (802.1p) |
Main Features
- Gigabit Ethernet port.
- Integrated 25 dBi parabolic antenna.
- Includes mounting bracket with tilt adjustment.
- PoE Injector included in the packaging.
- Supports Cambium PoE and standard passive PoE (30 Vdc).
- 100,000 PPS Maximum performance for demanding voice and video surveillance applications.
Cambium Networks Software Ecosystem
cnMaestro™
On-premises or cloud-based software platform for secure end-to-end network control, real-time wireless management, and zero-touch provisioning.
LINKPlanner
Model "what-if" scenarios based on geography, distance, and antenna heights to optimize system performance before purchasing. Free and easy-to-use link design tool.
cnArcher™
Free mobile app that gives field technicians the information they need to correctly configure and align Cambium PMP and ePMP subscriber modules.
cnHeat
Generates highly accurate RF propagation predictions and derived services based on 3D models and GIS data with up to 1-meter precision.
Product Video Support
Key Features
- 2x2 MIMO Technology With 256 QAM Modulation for Maximum Efficiency
- Channel Width Support From 20 MHz to 80 MHz for Flexible Deployment
- 128-Bit AES Encryption and Layer 2/3 Firewall for Enhanced Security
- Remote Management via HTTPS, SSH, and SNMPv2c Protocols
- Integrated Spectrum Analyzer for Live Radio Frequency Monitoring
- IP55 Weatherproof Rating for Reliable Outdoor Operation
