CAMBIUM NETWORKS
Cambium Networks FORCE400C(US) Force 400-C 5GHz 802.11ax Point-to-Point Backhaul
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
Force 400-C(US) 5 GHz
The high-capacity, low-latency wireless backhaul solution for demanding network backbones.
Quality of Service (QoS)
A powerful multi-level prioritization scheme configurable by the network operator to allow the delivery of differentiated services.
Robust Security
128-bit AES encryption, L2 and L3 firewall rules, support for multiple user levels, and HTTP/SSH compatibility provide enhanced security.
Flexible Operation Modes
Provides extremely low latency for PTP deployments, a highly scalable mode without GPS sync, and TDD operation for synchronized towers.
New Channel Size & Modulation
Supports channel size configuration from 20 MHz up to 80 MHz and modulates up to 256 QAM high density.

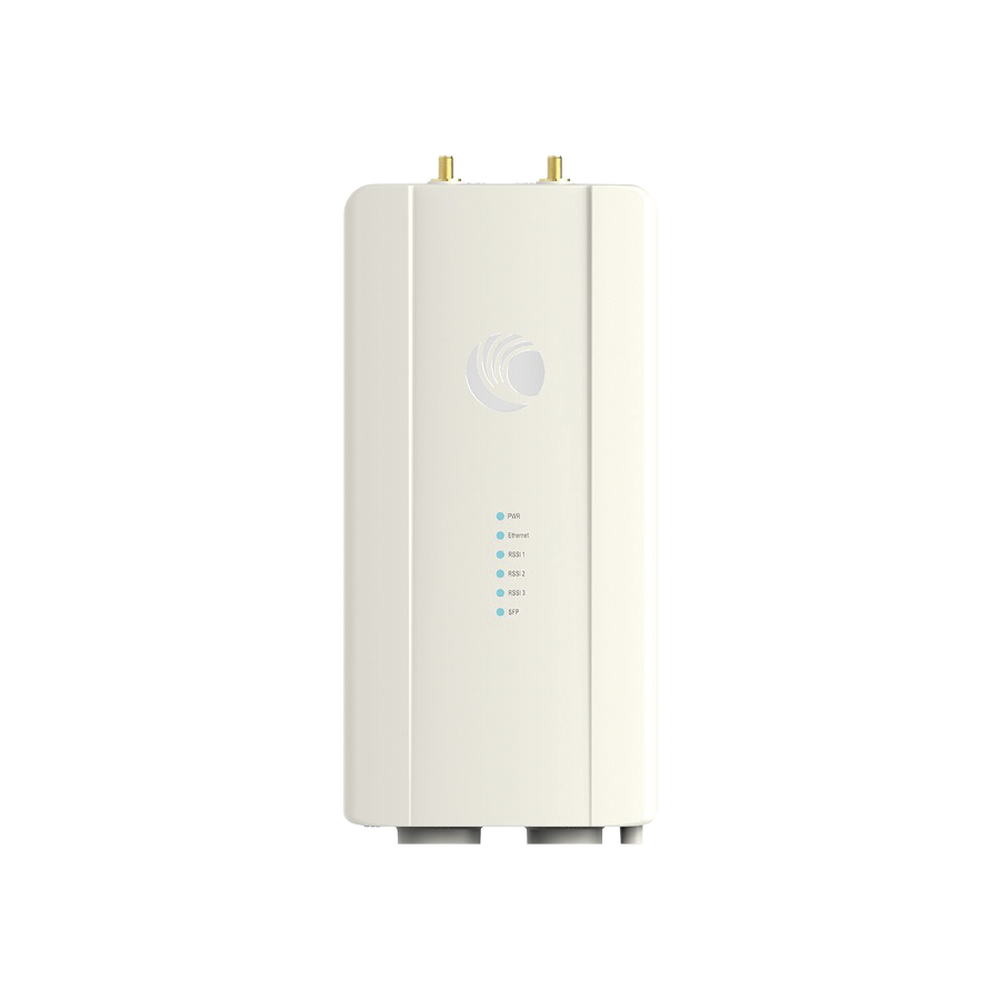

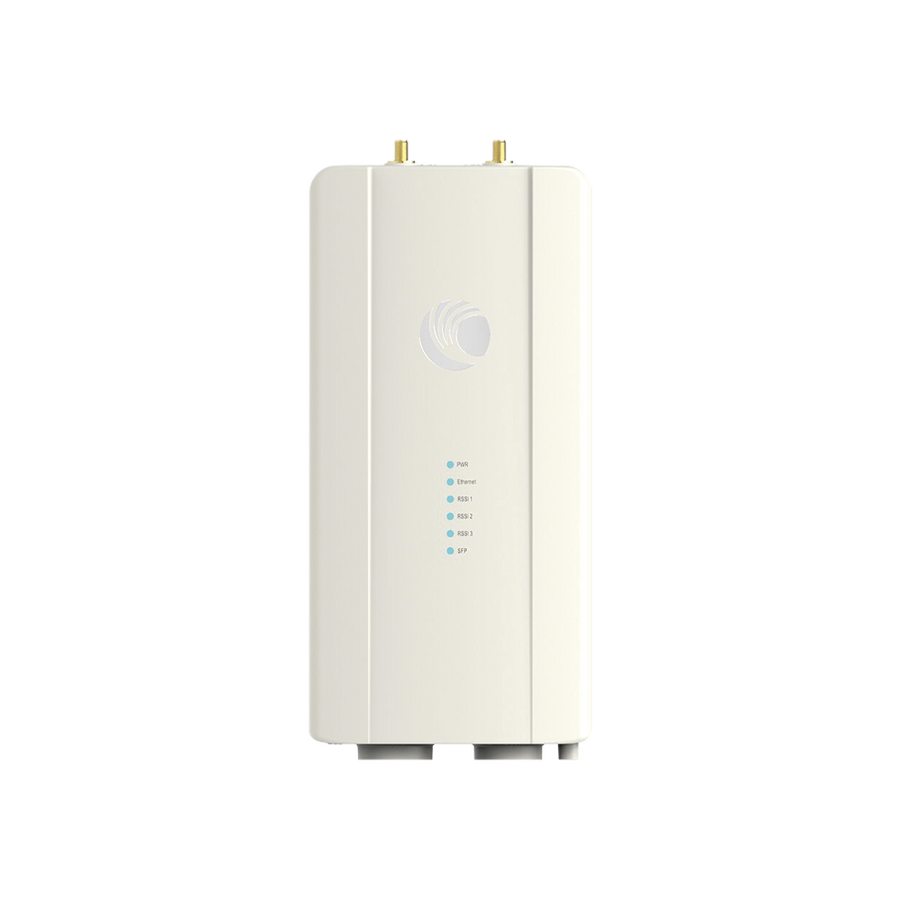

Cambium Force 400-C Connectorized Unit
INTEGRATED LIVE SPECTRUM ANALYZER
Supports continuous radio spectrum monitoring and allows live actions without dropping or disrupting the link.
Technical Specifications
| MIMO & Modulation: | 2x2 MIMO / OFDM |
| Frequency Range: | 4,910 – 6,135 MHz (Country dependent) |
| Max Output Power: | 29 dBm |
| Connectors: | 2 x RP-SMA Female (SMAI) |
| Channel Width: | Configurable (1x20, 1x40, 1x80 MHz) |
| Channel Spacing: | Configurable in 5 MHz increments |
| Ethernet Structure: | 10/100/1000 BaseT (Auto-negotiated) |
| Input Voltage / PoE: | 30 V (Cambium PoE or Standard PoE) |
| Max Power Consumption: | 12 Watts |
| Environmental Rating: | IP55 Weatherproof |
| MAC Layer / Protocols: | Cambium Proprietary / IPv4, UDP, TCP, IP, ICMP, STP, IGMP Snooping |
| Management: | HTTPs, SSH, SNMPv2c, VLAN 802.1Q (802.1p) |
Main Features
- Gigabit Ethernet Port.
- PoE Power Supply Included.
- Supports Cambium PoE and standard passive PoE (30Vdc).
- Maximum performance for critical voice, high-speed data, and megapixel IP CCTV applications.
Cambium Networks Software Ecosystem
cnMaestro™
On-premises or cloud-based software platform for secure end-to-end network control, real-time wireless management, and zero-touch provisioning.
LINKPlanner
Model "what-if" scenarios based on geography, distance, and antenna heights to optimize system performance before purchasing. Free and easy-to-use link design tool.
cnArcher™
Free mobile app that gives field technicians the information they need to correctly configure and align Cambium PMP and ePMP subscriber modules.
cnHeat
Generates highly accurate RF propagation predictions and derived services based on 3D models and GIS data with up to 1-meter precision.
Product Video Support
Key Features
- Low Latency 3-5 ms Ideal for Triple Play Services
- Adaptive Traffic Balancing for Upload and Download Optimization
- Advanced QoS for Voice, Video and Data Prioritization
- 128-Bit AES Encryption With Integrated L2/L3 Firewall
- Configurable Channel Width up to 80 MHz With 256-QAM
- Connectorized Design Compatible With 5 GHz Antennas
