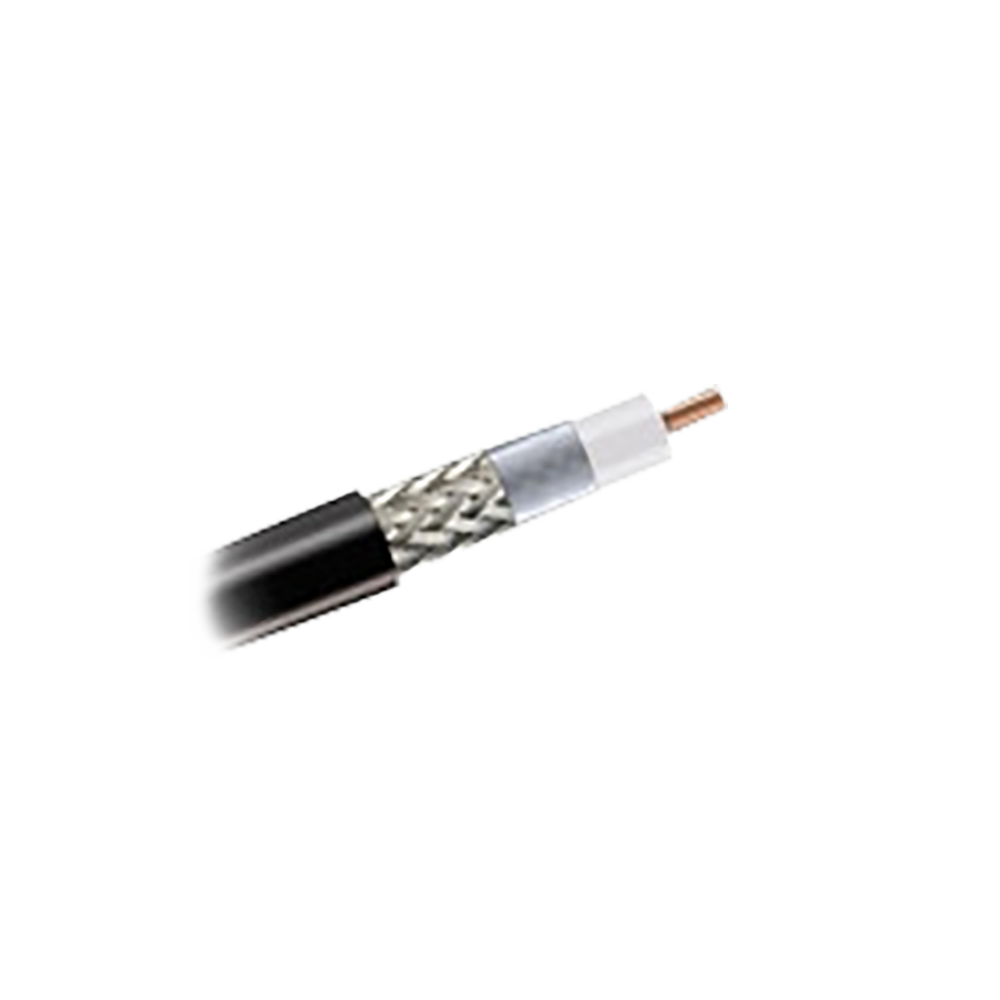

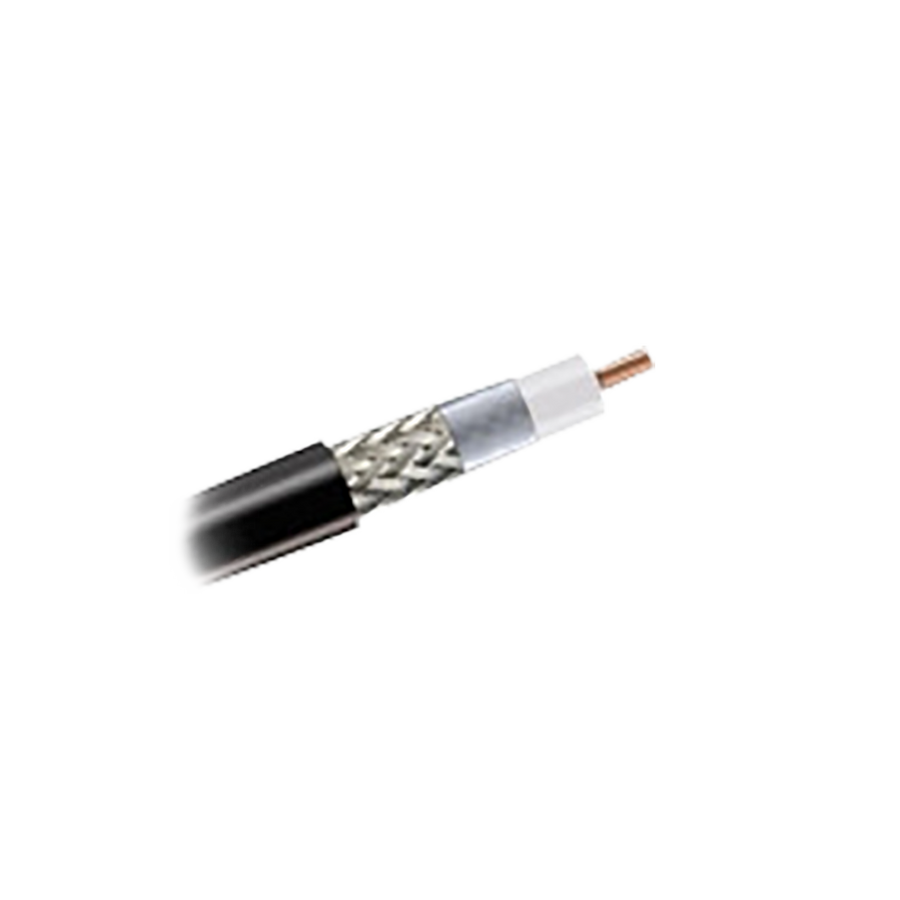

CommScope FSJ4-50BFT 50 Ohm Coaxial RF Cable 1-10200 MHz
Product identifier
SKU
FSJ4-50BFT
$15.41
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
| Electrical Specifications | |
| Cable Impedance | 50 ohm ±1 ohm |
| Capacitance | 25.2 pF/ft | 82.7 pF/m |
| dc Resistance, Inner Conductor | 0.820 ohms/kft | 2.690 ohms/km |
| dc Resistance, Outer Conductor | 1.560 ohms/kft | 5.120 ohms/km |
| dc Test Voltage | 2500 V |
| Inductance | 0.207 µH/m | 0.063 µH/ft |
| Insulation Resistance | 100000 Mohms•km |
| Jacket Spark Test Voltage (rms) | 5000 V |
| Operating Frequency Band | 1 – 10200 MHz |
| Peak Power | 22.5 kW |
| Velocity | 81% |
Key Features
- 50 Ohm Impedance With 1 Ohm Tolerance for Precise Signal Transmission
- 25.2 pF/ft Capacitance Ensures Stable Electrical Performance
- Low 0.820 Ohm/kft DC Resistance for Inner Conductor
- 1.560 Ohm/kft DC Resistance for Outer Conductor
- Wide 1-10200 MHz Operating Frequency Band for Versatile Applications
- 81% Velocity of Light Transmission Speed for Efficient Signal Propagation
