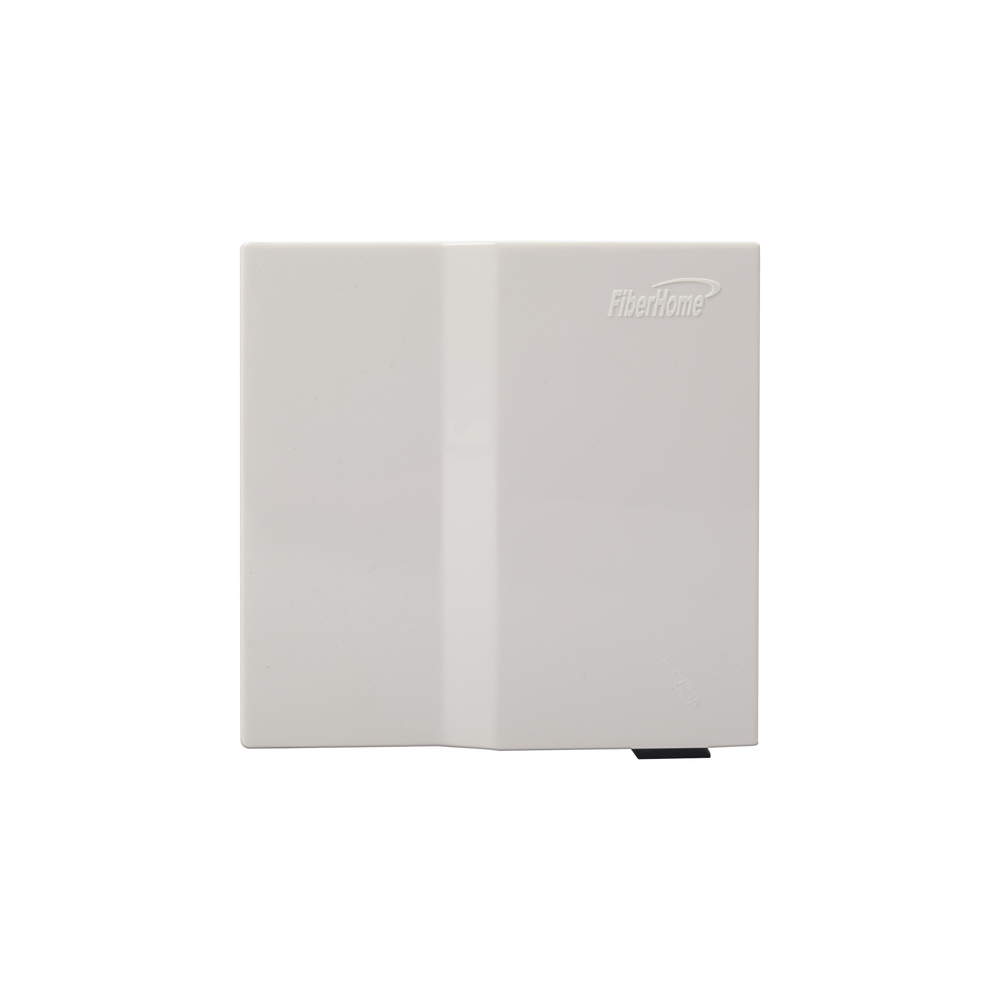

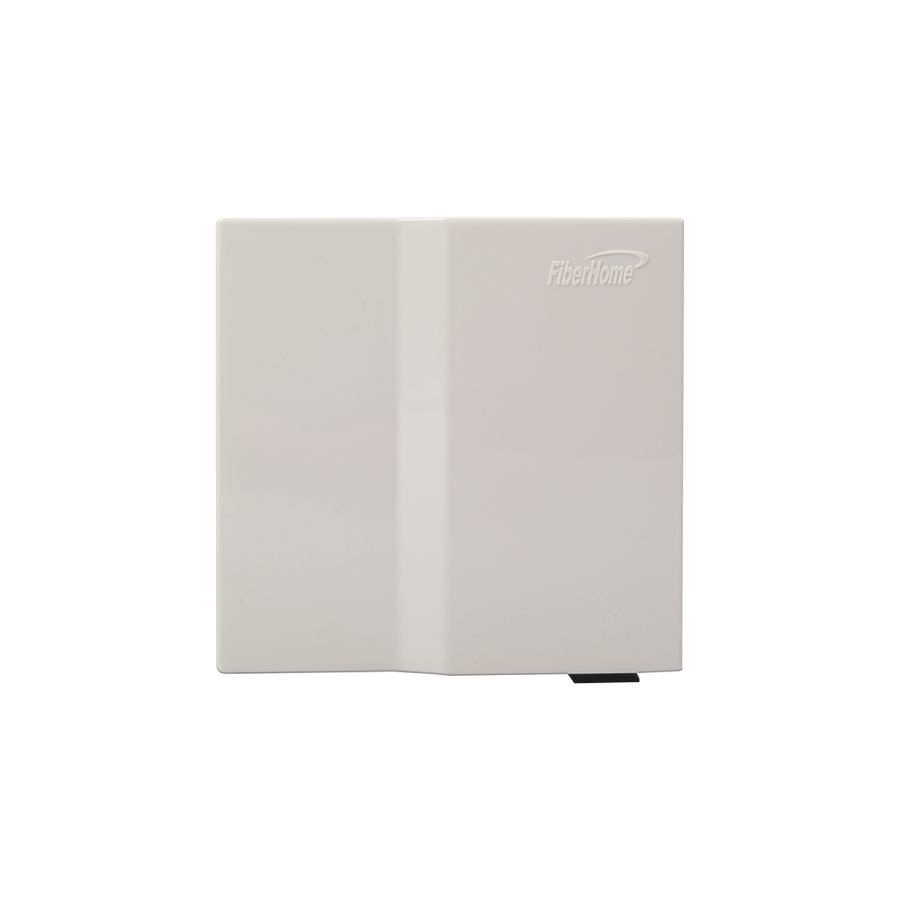

Fiberhome FTB-501 Indoor Fiber Outlet with one SC/APC adapter, White

FTB-501 is a compact fiber terminal used at the final fiber termination point in the customer premises. It will provide mechanical protection and manage fiber control in an attractive format suitable for customer premises usage. It is used to terminate the internal fiber cable in the customer premise to a point ready for connection to an Optical Network Unit (ONU) both for Multi-Dwelling Unit (MDU) and Single Dwelling Unit (SDU).

Features:

• Compact size fiber faceplate
• Ability to allow cable entry from the rear or bottom of the unit
• Proper routing, bend radius protection, and strain relief of the incoming cable
• Drop cable terminated with field assembly or fusion splice with pigtail
• Material is ABS/PC, which is flame retardant

Specification:

• Dimension (mm): 86x86x23
• Adapter type: 1 x SC/APC
• Installation: Wall surface mounted, indoor application
• Cable diameter: ≤Φ 4mm (Drop cable)
• Protection Level: IP30
• Color: White

Key Features

• Integrated SC/APC Coupler for Professional Fiber Connections
• Compact Design With 3.4 x 3.4 x 0.9 in Dimensions
• IP30 Protection Rating for Safe Indoor Installation
• Flame Retardant ABS Plastic Material for Safety
• Supports Drop Cable up to 4 mm Diameter
• Flexible Rear or Bottom Cable Entry Options
