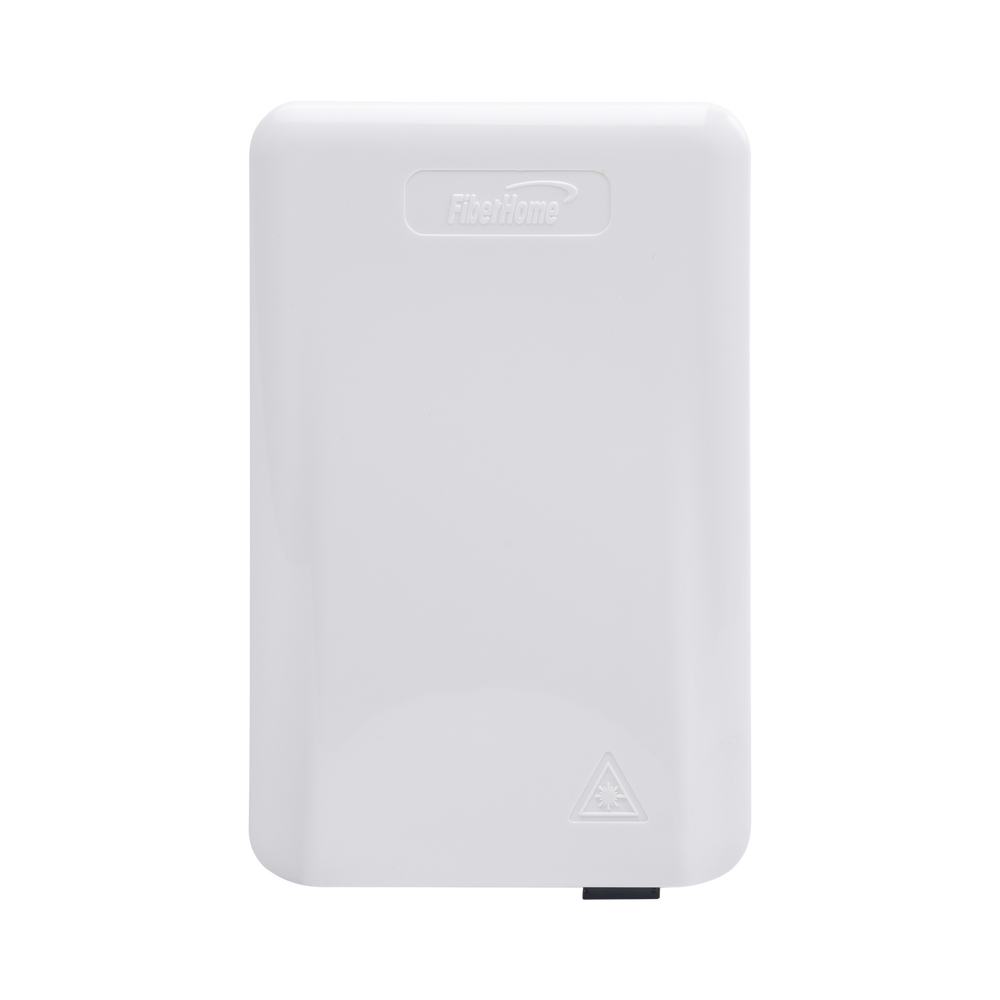

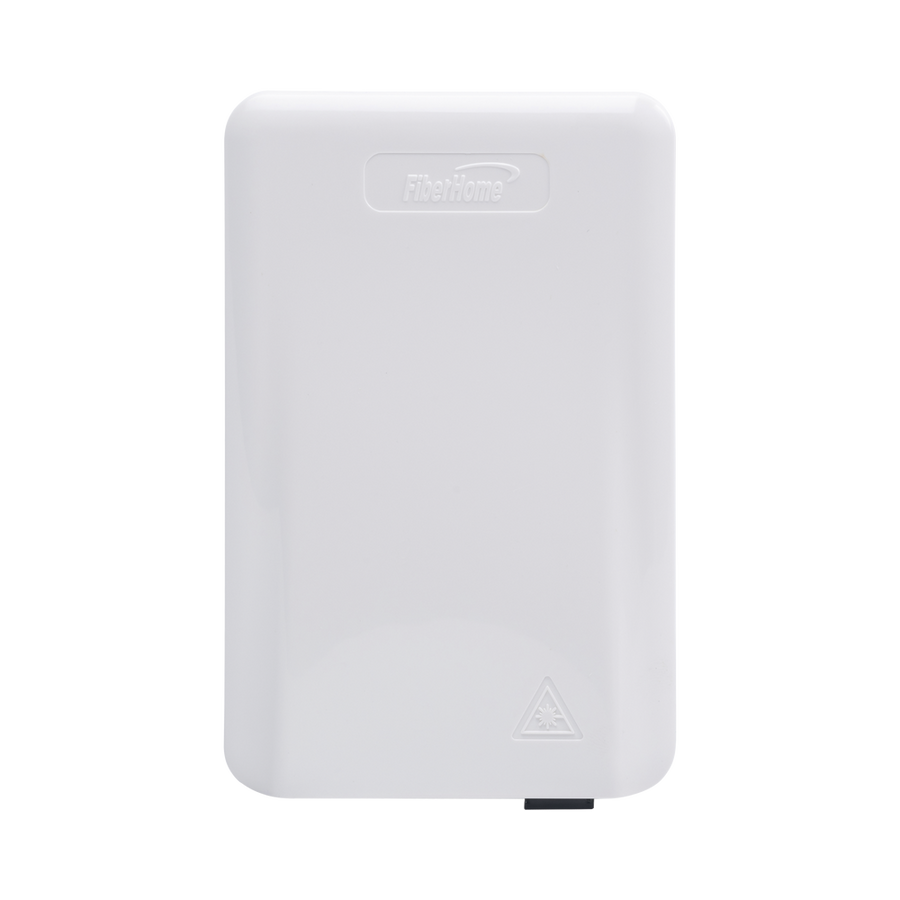

Fiberhome FTB-506 Indoor Fiber Outlet with 2 SC/APC Adaptors, White

FTB-506 is a compact fiber terminal used at the final fiber termination point in the customer premises. It will provide mechanical protection and manage fiber control in an attractive format suitable for customer premises usage. It is used to terminate the internal fiber cable in the customer premise to a point ready for connection to an Optical Network Unit (ONU/ONT) both for Multi-Dwelling Unit (MDU) and Single Dwelling Unit (SDU).

Features:

• Allows to keep 2 fusion splices or 2 field terminated connectors
• Proper routing, bend radius protection, and strain relief of the incoming cable
• Drop cable terminated with field assembly or fusion splice with pigtail
• Material is ABS/PC, which is flame retardant

Specification:

• Dimension: 78 x 120 x 25.4 mm
• Installation: Wall surface mounted, indoor application
• Maximum cable diameter for round drop cable: ≤Φ 5 mm x1 cable
• Maximum cable diameter for flat drop cable: 2 x 3 mm x2 cables
• Protection Level: IP30
• Color: White

Key Features

• Compact Dimensions of 3.1 x 4.7 x 1 in for Space-Saving Installation
• 2 SC/APC Couplers for Professional Optical Fiber Termination
• Flame Retardant ABS Material for Enhanced Safety and Durability
• Compatible With Drop Fiber for Field Installation Applications
• IP30 Protection Rating for Reliable Indoor Use Environments
• Optimized Bend Radius and Cable Strain Relief Protection
