Fiberhome FTB-522-SCA Fiber Optic Termination Box for Indoor Installation, Wall Mounting, 8 SC/APC single-mode adaptors up to 24 Splices

FIBERHOME

Fiberhome FTB-522-SCA Fiber Termination Box 8-Port SC/APC 24-Splice

Product identifier
SKU FTB-522-SCA
$31.59
Available to order

Lead time confirmed after order.

Request a quote Need help confirming fit? Talk to a specialist →
  • Product availability confirmed before fulfillment.
  • Support in English, Spanish and Portuguese.
  • 30-day returns and RMA support.

Product details

FTB-522-SCA Fiber Termination Box

FTTH NETWORK ACCESS & TERMINATION SOLUTION

Professional Fiber Splicing & Termination

The FTB-522-SCA is a high-performance termination box designed for the critical "last mile" of FTTH networks. It provides a centralized point for fiber splicing, termination, storage, and scheduling. Its compact, non-toxic, and non-corrosive design makes it the gold standard for indoor wall-mounted installations.

Top Highlights

  • ✓ Compact Wall-Mount Design (Indoor)
  • ✓ Non-Toxic & Non-Corrosive Material
  • ✓ Organized Fiber Routing & Management
  • ✓ Field Assembly Connector Ready
  • ✓ 8 SC/APC Adapters Pre-Installed

Technical Specifications

Dimensions (H×W×D): 9" x 5.1" x 2.3"
(230 x 130 x 60 mm)
Splicing Capacity: 24 Splices
Termination Capacity: 8 Ports
Cable Port OD: 0.27" ~ 0.31"
(7 ~ 8 mm)
Splitter Capacity: 1pc 1:8 (900µm)

Detailed Visuals

Front Profile

Side View

Adapter Ports

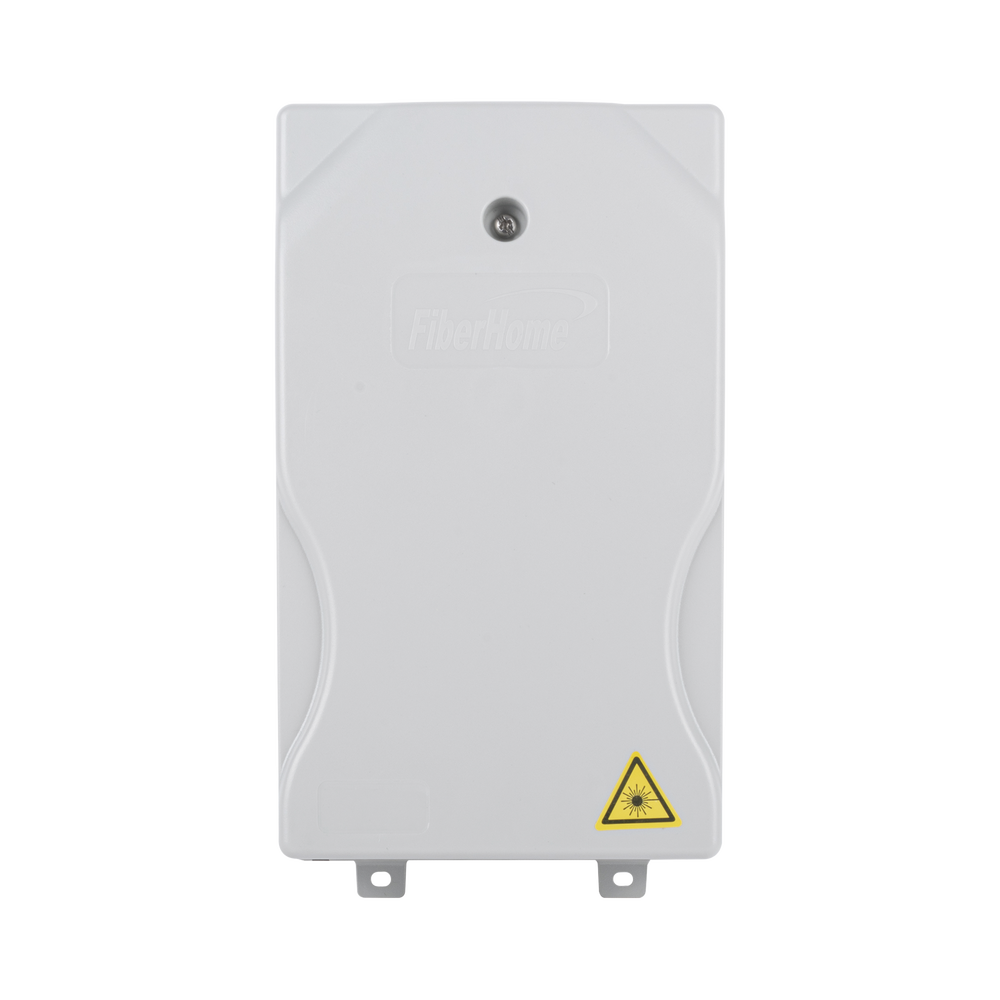

Front Profile with Cover

Installation Video Guide

Watch the step-by-step assembly and fiber routing instructions below:

Notice: 8 SC/APC adapters are pre-installed. 1:8 Splitters are available separately and are not included in the standard package.

Key Features

  • Capacity for 24 Optical Fiber Fusion Splices
  • 8 High-Precision SC/APC Simplex Couplers
  • 2 Distribution Ports for 0.28-0.31 in Cable
  • 8 Dedicated Drop Fiber Output Ports
  • Integrated Space for Optional 1:8 Micro Splitter
  • Compact Design for Indoor Wall Mount Installation
