Gamewell · Fire Alarm

Gamewell-FCI GFANN-80-W 80 Character LCD Remote Fire Annunciator, White

Part number / SKU
GFANN-80-W
  • Remote LCD fire annunciator
  • Surface mount
  • UL, FM, MEA, CSFM

Works with: Fire alarm control panels with ANN-Bus terminal Confirmed by the manufacturer


$304.99

In stock

Warranty
Manufacturer warranty

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

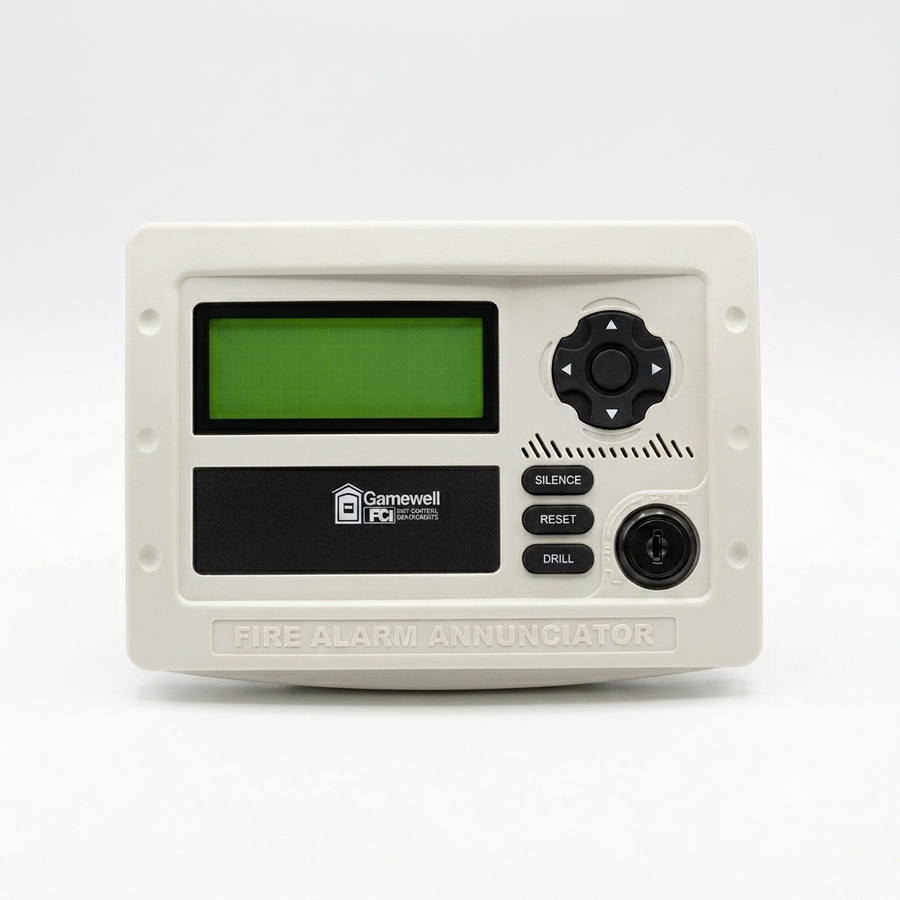

The Gamewell-FCI GFANN-80-W is a compact, backlit remote fire annunciator in white with an 80 character LCD (20 characters by 4 lines) that mirrors the fire alarm control panel display. It connects to the panel ANN-Bus terminals over a 2-wire serial interface and needs minimal panel programming.

Status LEDs show AC power, alarm, trouble, supervisory and alarm silence. Acknowledge, signal silence, drill and reset switches can be enabled or disabled at the panel, and a keyswitch enables the switches and locks the enclosure, which is supervised for tamper. Power comes over two more wires from the host panel or a remote UL Listed filtered power supply, and the unit surface mounts to a wall or to a single-gang, double-gang or 4 in square box.

  • Best for: a remote point to view panel status and run acknowledge, silence, drill and reset away from the main panel.
  • System fit: fire alarm control panels with an ANN-Bus terminal; powered by the host panel or a remote UL Listed filtered supply.
  • Important to know: installation and programming must be done by a qualified fire alarm technician per local code.

Why teams choose it

Built for fire alarm systems

  • Full text display

    80 character backlit LCD mirrors the panel display, including zone and custom labels.

  • Remote controls

    acknowledge, signal silence, drill and reset, each enabled or disabled at the panel.

  • Secure access

    keyswitch enables controls and locks the tamper supervised enclosure.

  • Simple wiring

    2-wire ANN-Bus serial link plus 2 power wires.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKUGFANN-80-W
General
Brand Gamewell-FCI
Model GFANN-80-W
Device Type Remote LCD fire annunciator
Display Backlit LCD, 80 characters (20 x 4 lines)
Displayed Data Device type identifiers, point alarm, trouble and supervisory status, zone labels, custom labels, time and date
Status LEDs AC power, alarm, trouble, supervisory, alarm silence
Controls Acknowledge, signal silence, drill, reset (enable or disable at panel)
Keyswitch Enables controls and locks enclosure; keyswitch can be enabled or disabled at panel
Sounder Local sounder, enable or disable at panel
Electrical
Communication 2-wire serial to panel ANN-Bus terminals
Power Supply 2 wires from host panel or remote UL Listed filtered power supply
Physical
Color White
Mount Type Surface mount
Mount Type Detail To wall, single-gang, double-gang or 4 in square box
Tamper Enclosure supervised for tamper
Listings and Approvals
Agency Approvals UL, FM, MEA, CSFM
Approval Details UL S2424; FM Approved; MEA 442-06-E; CSFM 7165-1703:0166
Standards UL 864, 9th Edition
