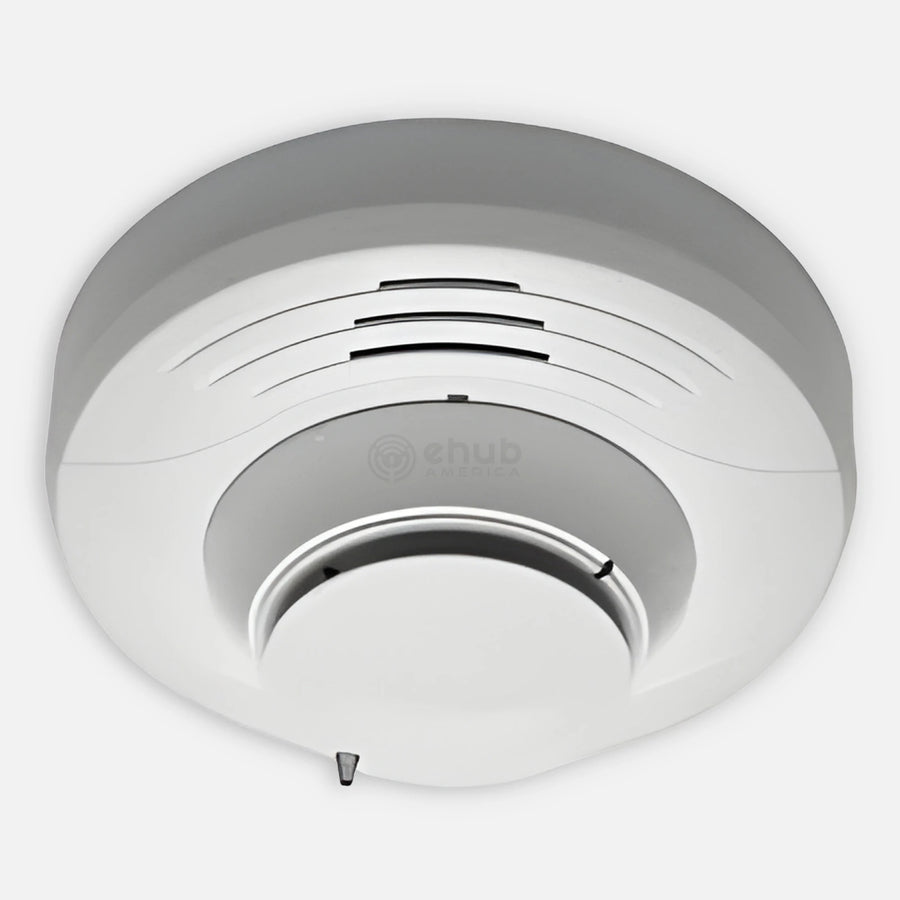

Gamewell-FCI MCS-PTIR Multi-Criteria Photo, Heat and Infrared Intelligent Detector

Part number / SKU
MCS-PTIR
  • Intelligent detector
  • Photoelectric, thermal, infrared
  • Addressable
  • UL, FM, CSFM

$88.99

In stock

Warranty
Manufacturer warranty

Free Economy shipping available at checkout

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The Gamewell-FCI MCS-PTIR is an intelligent multi-criteria fire detector that combines photoelectric smoke, thermal and infrared sensing in one head to sense multiple components of a fire. It uses analog addressable communications with Gamewell-FCI fire alarm control panels.

Using multiple sensors lets the detector reject certain nuisance alarm triggers, such as theater smoke, and it gives distinct smoke and heat alarms, so a site can use a local photoelectric alarm setting with a general evacuation thermal setting. The thermal element provides fixed temperature and rate of rise detection, the address is set with rotary address switches, dual LEDs give 360 degree visibility, and the detector has low standby current. It is UL listed (S1195), FM Approved and CSFM approved (7272-1703:0508), and meets UL 268 7th edition and UL 521 listing requirements.

  • Best for: areas where nuisance alarm triggers such as theater smoke make single-sensor smoke detection a concern.
  • System fit: Gamewell-FCI analog addressable fire alarm systems.
  • Important to know: installation and programming must be done by a qualified fire alarm technician per local code.

Why teams choose it

Built for fire alarm systems

  • Three sensing elements

    photoelectric, thermal and infrared in one detector.

  • Separate smoke and heat alarms

    supports a local photoelectric alarm with a general evacuation thermal setting.

  • Heat detection modes

    fixed temperature and rate of rise.

  • Visible status

    dual LEDs for 360 degree visibility.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKUMCS-PTIR
General
Brand Gamewell-FCI
Model MCS-PTIR
Device Type Intelligent detector
Device Type Detail Multi-criteria
Detection Type Photoelectric, thermal, infrared
Detection Type Detail Photoelectric smoke, thermal, infrared
Heat Detection Fixed temperature and rate of rise
Sensing Elements 3
Addressing Addressable
Addressing Detail Analog communications, rotary address switches
Alarm Outputs Distinct smoke and heat alarms
Indicator Dual LEDs, 360 degree visibility
Listings and Approvals
Agency Approvals UL, FM, CSFM
Approval Details UL S1195; FM Approved; CSFM 7272-1703:0508
Standards UL 268 7th edition; UL 521
