GRANDSTREAM

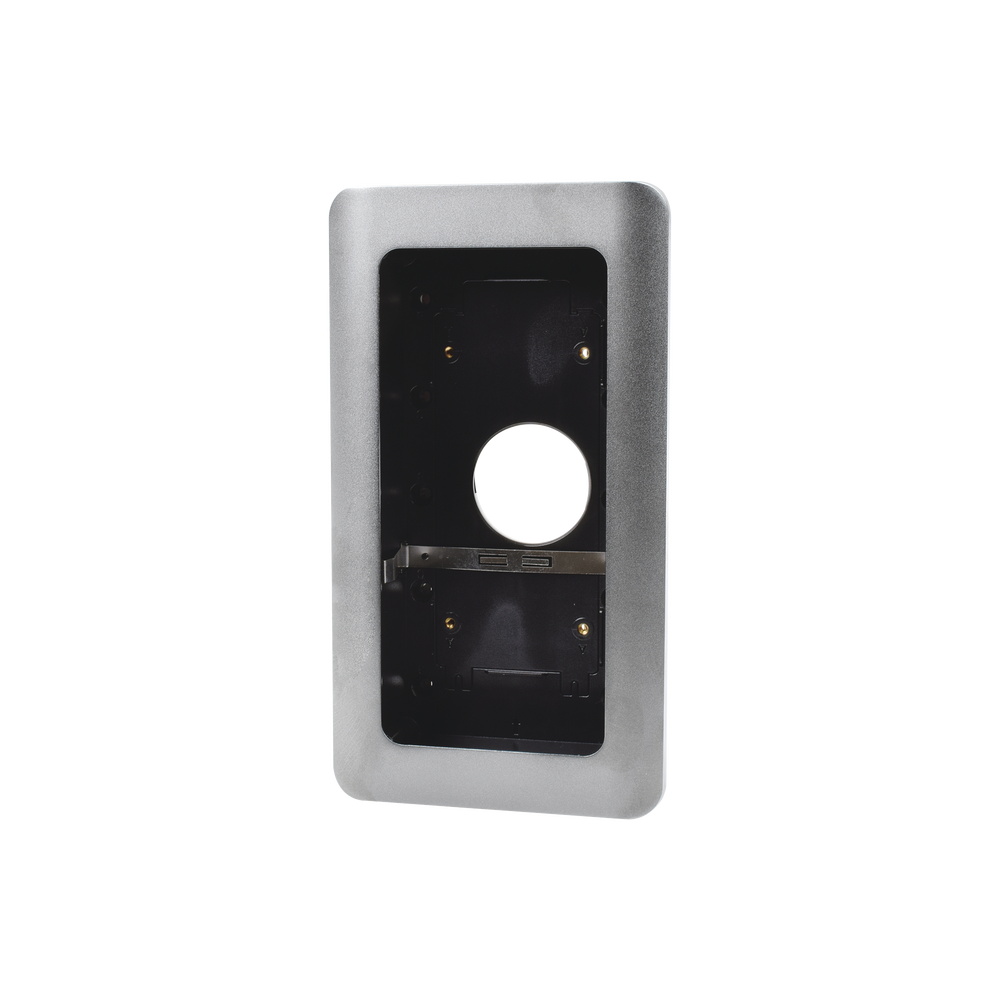

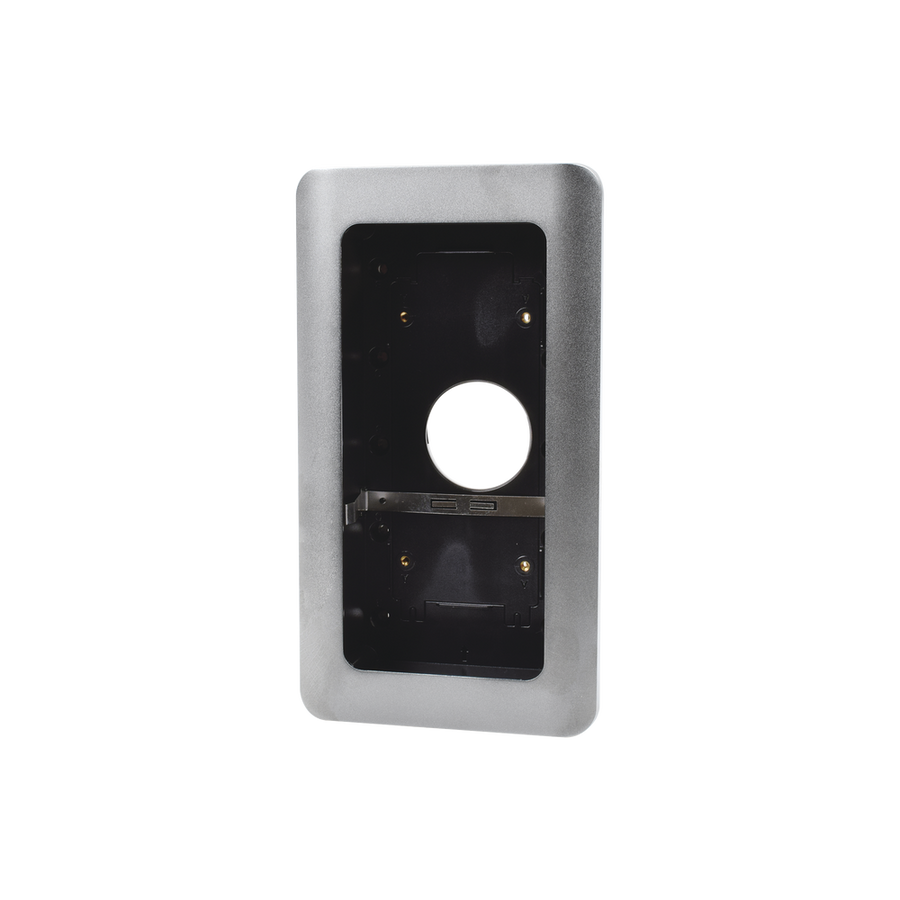

Grandstream GDS-37X0-INWALL Frame with Mounting in Wall for GDS37X0
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
The Wall Mount Kit is available for use with the GDS3710 IP Video Doorphone. This mounting kit allows the GDS3710 to be placed aligned within a wall and not on the surface of the wall. It supports a solid wall installation of plaster (hollow wall) with bolts. When installing the GDS3710 or the Wall Mounting Kit, please follow the local code regarding construction and electrical installations. It is suggested to install the device with the base of the device.
The box contains
1 installation bracket
1 cover plate
1 plastic box
1 drilling template
Quick reference guide
1 metal frame
Set of 6 fasteners and screws
12 screws (2 different lengths)
12 nuts (two different styles)
6 security screws
1 hexagonal safety key
Space Required on the Wall
99.8mm (3.93 inches) x 193.88mm (7.63 inches), 35mm deep (1.38 inches)
Key Features
- Designed for Grandstream GDS3710 IP Video Door Phone
- Flush Mount Installation for Clean Wall Surface Finish
- Compatible With Solid and Hollow Drywall Construction
- Includes Precise Drilling Template for Accurate Installation
- Complete Hardware Kit With 12 Screws and 12 Nuts
- 6 Security Fasteners and Hex Key for Tamper Resistance
