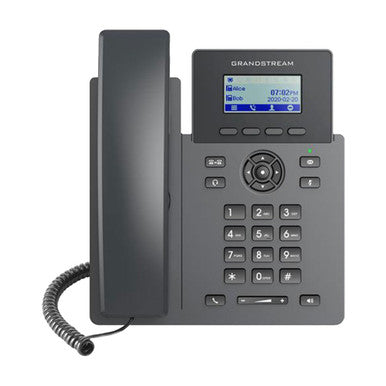

Grandstream GRP2601P 2-Line IP Phone PoE 5-Way Conferencing

PRODUCT OVERVIEW

Part of the GRP series of Carrier-Grade IP Phones, the GRP2601 is an essential 2-line model designed with zero-touch provisioning for mass deployment and easy management. It features a sleek design and a suite of next-generation features including 5-way voice conferencing to maximize productivity, integrated PoE (GRP2601P), EHS support for Plantronics, Jabra, and Sennheiser headsets and multi-language support. The GRP series includes carrier-grade security features to provide enterprise-level security, including secure boot, dual firmware images and encrypted data storage. For cloud provisioning and centralized management, the GRP2601 is supported by Grandstream’s Device Management System (GDMS), which provides a centralized interface to configure, provision, manage and monitor deployments of Grandstream endpoints. Built for the basic needs of on-site or remote desktop workers and designed for easy deployment by enterprises, service providers and other high-volume markets, the GRP2601 offers an easy-to-use and easy-to-deploy voice endpoint.

PRODUCT TYPE

IP Phones

KEY FEATURES

• 2 SIP account, 2 lines
• GDMS online device management and provisioning
• 5-way audio conferencing for easy conference calls
• Equipped with noise shield technology to minimize background noise
• Electronic Hook Switch (EHS) support for Plantronics, Jabra, and Sennheiser headsets
• The GRP2601P includes built-in PoE to power the device and give it a network connection
• Enterprise-level protection including secure boot, dual firmware images and encrypted data storage
• Protocols/Standards: SIP RFC3261, TCP/IP/UDP, RTP/RTCP, RTCP-XR, HTTP/HTTPS, ARP, ICMP, DNS(A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR069, SNMP, 802.1x, TLS, SRTP, IPv6
• Network Interfaces: Dual switched auto-sensing 10/100 Mbps Ethernet ports, integrated PoE (GRP2601P only)
• Graphic Display: 132 x 48 (2.21’’) LCD display
• Feature Keys: 4 XML programmable context sensitive soft keys, 5 (navigation, menu) keys. 8 dedicated function keys for: MESSAGE (with LED indicator), TRANSFER, HEADSET, MUTE, SEND/REDIAL, SPEAKERPHONE, VOL+, VOL
• Voice Codecs and Capabilities: Support for G.729A/B, G.711µ/a-law, G.726, G.722(wideband), G.723,iLBC, OPUS, in- band and out-of-band DTMF(in audio, RFC2833, SIP INFO), VAD, AEC, CNG, PLC, AGC
• Telephony Features: Hold, transfer, forward, 5-way conference, call park, call pickup, downloadable phonebook(XML, LDAP, up to 2000 items), call waiting, call log(up to 800 records), off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot-desking, personalized music ringtones and music on hold, server redundancy and fail-over
• Auxiliary Ports: RJ9 headset jack (allowing EHS with Plantronics & Jabra &Sennheiser headsets)
• Base Stand: Yes, 1 angle position available (45°), Wall Mountable (wall mount sold separately)
• QoS: Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS
• Security: User and administrator level passwords, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, SRTP, TLS, 802.1x media access control, secure boot
• Multi-language: English, Chinese, Korean, Japanese, German, Italian, French, Spanish, Portuguese, Russian, Croatian and more

TECHNICAL SPECIFICATIONS

• Brand: Grandstream
• Model: GRP2601P
• Product Type: IP Phones
• 2 SIP account, 2 lines
• GDMS online device management and provisioning
• 5-way audio conferencing for easy conference calls
• Equipped with noise shield technology to minimize background noise
• Electronic Hook Switch (EHS) support for Plantronics, Jabra, and Sennheiser headsets
• The GRP2601P includes built-in PoE to power the device and give it a network connection
• Enterprise-level protection including secure boot, dual firmware images and encrypted data storage
• Protocols/Standards: SIP RFC3261, TCP/IP/UDP, RTP/RTCP, RTCP-XR, HTTP/HTTPS, ARP, ICMP, DNS(A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR069, SNMP, 802.1x, TLS, SRTP, IPv6
• Network Interfaces: Dual switched auto-sensing 10/100 Mbps Ethernet ports, integrated PoE (GRP2601P only)
• Graphic Display: 132 x 48 (2.21’’) LCD display
• Feature Keys: 4 XML programmable context sensitive soft keys, 5 (navigation, menu) keys. 8 dedicated function keys for: MESSAGE (with LED indicator), TRANSFER, HEADSET, MUTE, SEND/REDIAL, SPEAKERPHONE, VOL+, VOL
• Voice Codecs and Capabilities: Support for G.729A/B, G.711µ/a-law, G.726, G.722(wideband), G.723,iLBC, OPUS, in- band and out-of-band DTMF(in audio, RFC2833, SIP INFO), VAD, AEC, CNG, PLC, AGC
• Telephony Features: Hold, transfer, forward, 5-way conference, call park, call pickup, downloadable phonebook(XML, LDAP, up to 2000 items), call waiting, call log(up to 800 records), off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot-desking, personalized music ringtones and music on hold, server redundancy and fail-over
• Auxiliary Ports: RJ9 headset jack (allowing EHS with Plantronics & Jabra &Sennheiser headsets)
• Base Stand: Yes, 1 angle position available (45°), Wall Mountable (wall mount sold separately)
• QoS: Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS
• Security: User and administrator level passwords, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, SRTP, TLS, 802.1x media access control, secure boot
• Multi-language: English, Chinese, Korean, Japanese, German, Italian, French, Spanish, Portuguese, Russian, Croatian and more
• Upgrade/Provisioning: Firmware upgrade via FTP/TFTP / HTTP / HTTPS, mass provisioning using GDMS/TR069 or AES encrypted XML configuration file
• Power & Green Energy Efficiency: Universal Power Supply Input 100-240VAC 50-60Hz; Output +5VDC, 600mA;PoE: IEEE802.3af Class 1, 3.84W; IEEE802.3az (EEE) (GRP2601P Only)
• Temperature and Humidity: Operation: 0°C to 40°C
• Storage: -10°C to 60°C
• Humidity: 10% to 90% Non-condensing
• Package Content: GRP2601/2601P phone, handset with cord, base stand, universal power supply (GRP2601 only), network cable, Quick Installation Guide
• Physical Dimension: 208mm (L) x 180mm (W) x 63.4mm (H) (with handset) Unit weight: 650g
• Package weight: 810g (860g for GRP2601)
• Compliance: FCC: Part 15 Class B; FCC Part 68 HAC;
• CE: EN 55032; EN 55035; EN 61000-3-2; EN 61000-3-3; EN 62368-1;
• RCM: AS/NZS CISPR32; AS/NZS 62368.1; AS/CA S004;

INTENDED USE / APPLICATIONS

• Business voice communications
• Office, reception, and institutional environments
• Integration with compatible SIP/VoIP systems
