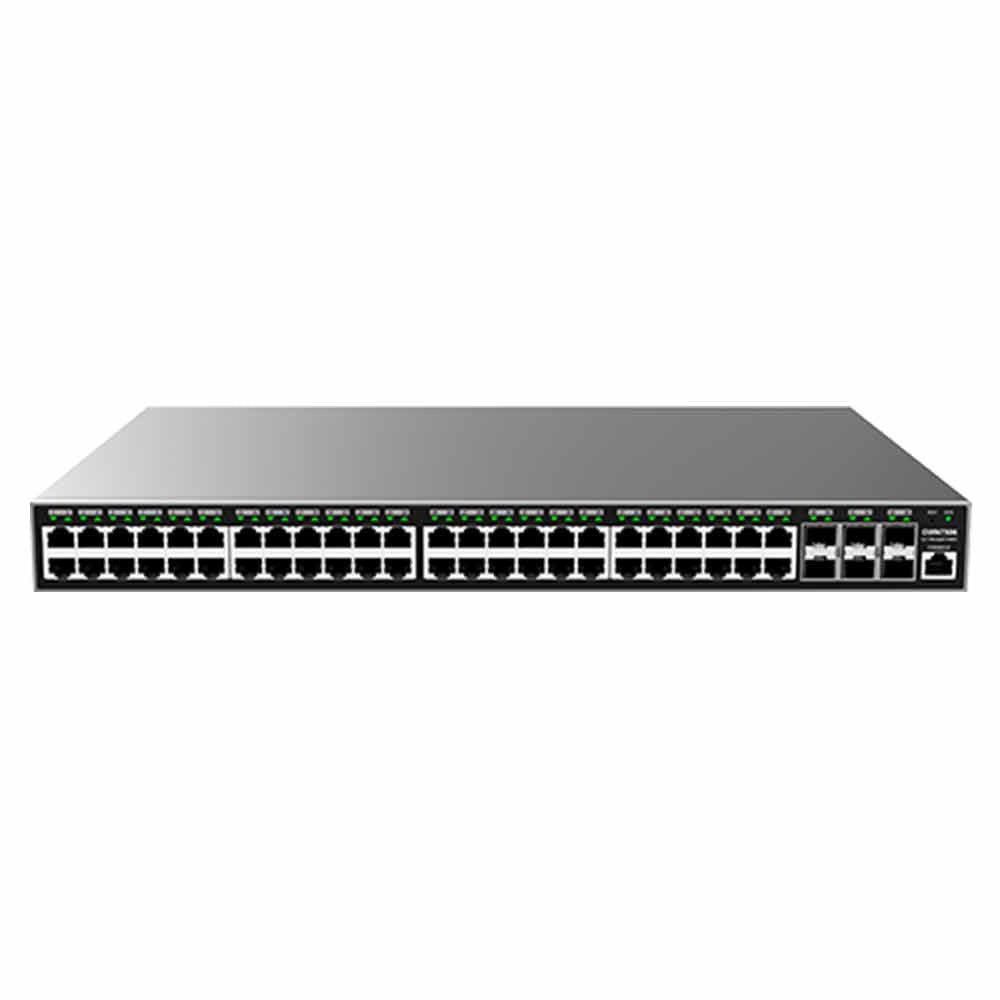

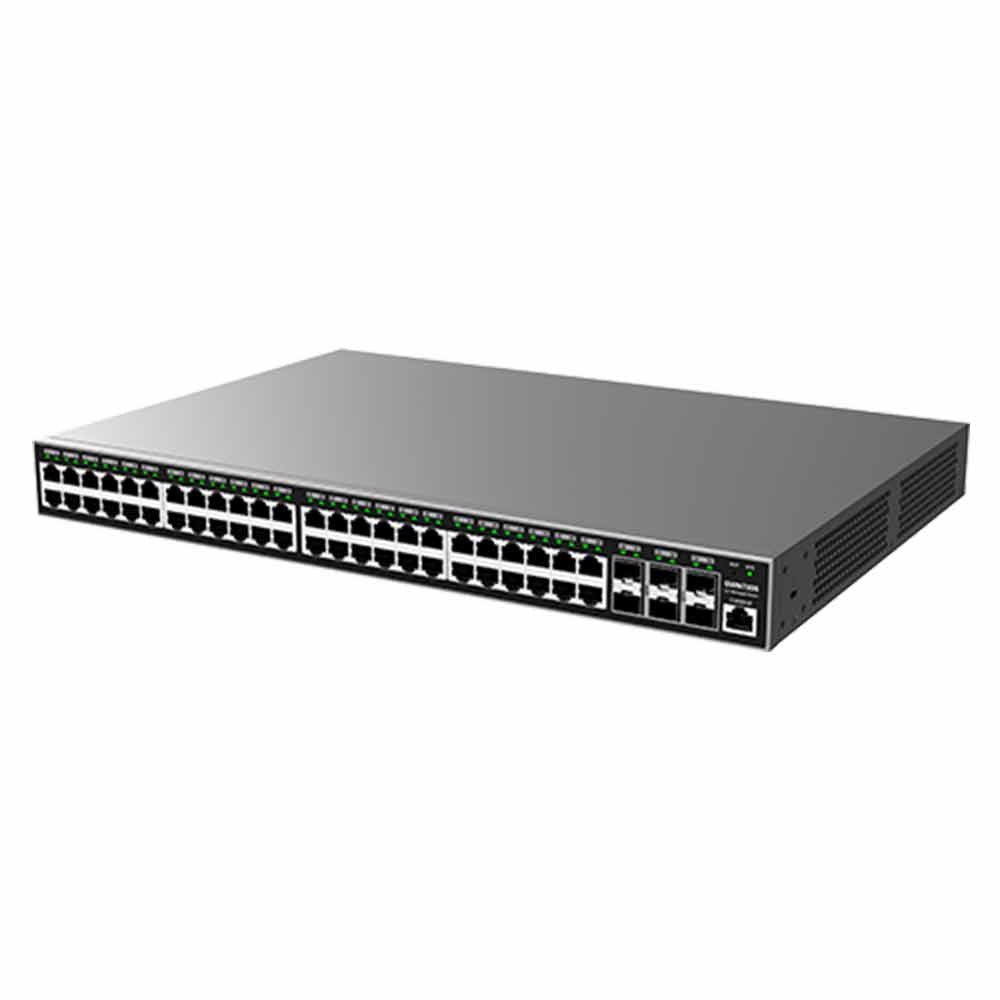

Grandstream GWN7806P 48-Port Gigabit PoE+ Layer 2+ Managed Switch, 6x 10G SFP+, 400 W

Part number / SKU
GWN7806P
  • 48x 1 GbE RJ45 PoE+
  • Internal AC power supply
  • Rackmount 1U

$610.41

In stock

Warranty
Manufacturer warranty

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The Grandstream GWN7806P is a Layer 2+ managed PoE switch with 48 Gigabit PoE/PoE+ ports and six 10G SFP+ ports, for networks that need PoE+ on every copper port. It is managed from GWN.Cloud, GDMS Networking or the on-premise GWN Manager, or locally through its web interface with an embedded controller.

Grandstream lists 216 Gbps switching capacity and 108 Gbps non-blocking throughput with a 16 MB packet buffer. All 48 copper ports deliver IEEE 802.3af/at PoE at up to 30 W each from a 400 W total budget, fed by an integrated 470 W power supply. The 1U unit has three fans, mounts in a rack or on a desk, and is rated for 0 to 45 °C.

Layer 2+ features include 4K VLANs, 27 link aggregation groups, STP/RSTP/MSTP, IGMP and MLD snooping, static routing, 4K ACLs and DHCP server and relay. Security covers 802.1X, RADIUS and TACACS+, ARP inspection, IP source guard, DHCP snooping and DoS prevention, with dual image redundancy.

  • Best for: networks that need 48 Gigabit PoE+ ports with 10G SFP+ uplinks.
  • System fit: Grandstream GWN780x Layer 2+ series; GWN.Cloud, GDMS Networking, GWN Manager and embedded controller; SNMP, SSH and console.
  • Important to know: PoE budget is 400 W shared across 48 ports, up to 30 W per port; routing is static only; SFP+ modules are not included.

Why teams choose it

Built for reliable networks

  • Powers 48 devices

    IEEE 802.3af/at PoE+ on all 48 ports, 30 W per port, 400 W total.

  • 10G uplinks

    six SFP+ ports with 216 Gbps switching capacity and 108 Gbps non-blocking throughput.

  • Cloud or local management

    GWN.Cloud, GDMS Networking, GWN Manager or the embedded web controller.

  • Access security

    802.1X, RADIUS and TACACS+, ARP inspection, IP source guard and DHCP snooping.

Specifications

Technical specifications

Product identifiers
SKUGWN7806P
General
Brand Grandstream
Model GWN7806P
Series GWN780x
Device Type Layer 2+ managed PoE switch
Form Factor Rackmount 1U
Interfaces
Ethernet Ports 48x 1 GbE RJ45 PoE+
SFP+ Ports 6x 10G SFP+
SFP+ Module Support 6x SM-10G, 6x MM-10G, 3x RJ45-10G at intervals
DAC Support DAC cables 5 m or shorter
Console Port 1
Reset Reset pinhole
Performance
Switching Capacity 216 Gbps
Non-Blocking Throughput 108 Gbps
Forwarding Mode Store-and-forward
Packet Buffer 16 MB
Latency Under 4 µs
MAC Address Table 32K
VLANs 4K
Link Aggregation 27 groups
Spanning Tree STP, RSTP, MSTP, 64 instances
ACL Entries 4K
Layer L2+, static routing
Power
PoE Standard IEEE 802.3af/at
PoE Ports 48
PoE Per Port 30 W max
PoE Budget 400 W
Power Method Internal AC power supply
Integrated Power Supply 470 W
Physical
Dimensions 440 x 301 x 44 mm
Weight 5.1 kg
Cooling 3 fans
Mounting Desktop or rack; rack brackets included
Lock Slot Kensington
Environmental
Operating Temperature 0 to 45 °C
Operating Humidity 10 to 90%, non-condensing
Storage Temperature -10 to 60 °C
Software and Management
Management GWN.Cloud, GDMS Networking, GWN Manager, embedded controller, web GUI
Protocols SNMP, RMON, LLDP/LLDP-MED, syslog, HTTPS, SSH, Telnet
Multicast IGMP and MLD snooping
DHCP Server, relay, Options 82, 60, 160, 43
QoS SP, WRR, WFQ, SP-WRR, SP-WFQ; traffic shaping, rate limiting
Security 802.1X, RADIUS, TACACS+, ARP inspection, IP source guard, DHCP snooping, DoS prevention, port security
Reliability Dual image, dual system file redundancy
IP Versions IPv4 and IPv6
Listings and Approvals
Certifications FCC, CE, RCM, IC, UKCA

In the box

  • GWN7806P switch
  • 1.2 m 10 A AC power cable
  • 25 cm ground cable
  • 4 rubber footpads
  • 2 rack mount kits
  • 8 screws
  • Anti-trip power cord retainer
  • Quick installation guide
