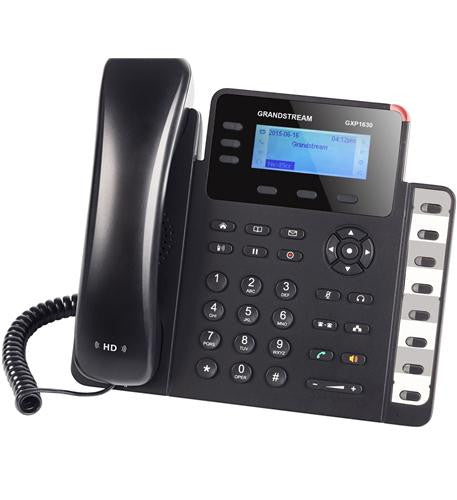

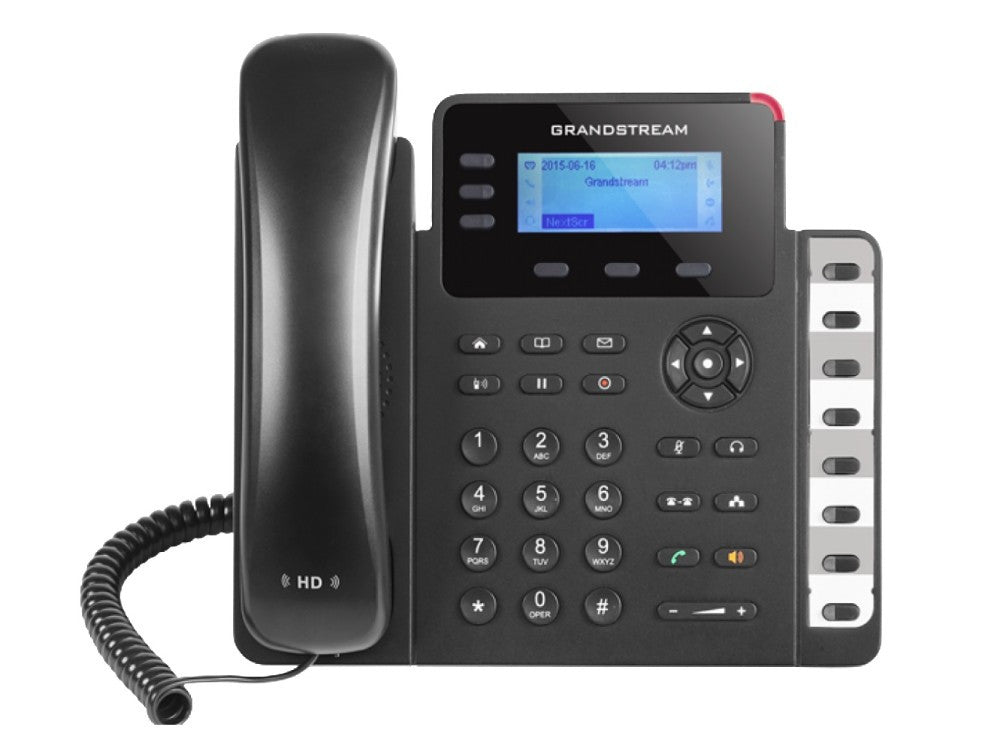

Grandstream GXP1630 3-Line Gigabit IP Phone HD Audio PoE 4-Way Conference

PRODUCT OVERVIEW

The GXP1630 is a powerful IP phone for small-to-medium businesses (SMBs). This Linux-based model includes 3 lines, 3 XML programmable soft keys, 8 BLF keys and 4-way conferencing. A 132x64 backlit LCD screen creates a clear display for easy viewing. Additional features such as dual switched gigabit network ports, HD audio, multi-language support, integrated PoE and call-waiting allow the GXP1630 to be a high quality, versatile and dependable office phone.

PRODUCT TYPE

IP Phones

KEY FEATURES

• 3 lines, 3 SIP accounts, 3 call apperances, 3 softkeys
• Dual-switched auto-sensing 10/100/1000mbps network ports
• Includes 8 dualcolored BLF/speed dial keys
• Built-in PoE to power the device and give it a network connection
• HD audio to maximize audio quality, full-duplex speakerphone
• Use with Grandstream’s UCM series of IP PBXs for Zero Config provisioning
• Electronic Hook Switch (EHS) support for Plantronics headsets
• Automated provisioning options include TR-069 and config files
• TLS and SRTP security encryption technology to protect calls and accounts
• 4-way audio conferencing for easy conference calls
• Protocols/Standards: SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP
• Network Interfaces: Dual switched auto-sensing 10/100/1000 Mbps Ethernet ports, integrated PoE
• Graphic Display: 132 x 64 backlit graphical LCD display
• Feature Keys: 3 line keys with dual-color LED and 3 SIP accounts, 3 XML programmable context sensitive soft keys, 5 (navigation, menu) keys, 8 BLF keys, 13 dedicated function keys for MUTE, HEADSET, TRANSFER, CONFERENCE, SEND and REDIAL, SPEAKERPHONE, VOLUME, PHONEBOOK, MESSAGE, HOLD, PAGE/INTERCOM, RECORD, HOME
• Voice Codecs: Support for G.711µ/a, G.722 (wide-band), G.723 (pending), G.726-32, G.729 A/B, iLBC (pending), Opus (pending), in-band and out-of-band DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC
• Telephone Features: Hold, transfer, forward (unconditional/no-answer/busy), call park/pickup, 4-way conference, shared-call-appearance (SCA) / bridged-line appearance (BLA), downloadable phone book (XML, LDAP, up to 500 items), call waiting, call history (up to 200 records), off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot desking, personalized music ringtones, server redundancy & fail-over
• Headset Jack: RJ9 headset jack (allowing EHS with Plantronics headsets)
• HD Audio: Yes, HD handset and speakerphone with support for wideband audio

TECHNICAL SPECIFICATIONS

• Brand: Grandstream
• Model: GXP1630
• Product Type: IP Phones
• 3 lines, 3 SIP accounts, 3 call apperances, 3 softkeys
• Dual-switched auto-sensing 10/100/1000mbps network ports
• Includes 8 dualcolored BLF/speed dial keys
• Built-in PoE to power the device and give it a network connection
• HD audio to maximize audio quality, full-duplex speakerphone
• Use with Grandstream’s UCM series of IP PBXs for Zero Config provisioning
• Electronic Hook Switch (EHS) support for Plantronics headsets
• Automated provisioning options include TR-069 and config files
• TLS and SRTP security encryption technology to protect calls and accounts
• 4-way audio conferencing for easy conference calls
• Protocols/Standards: SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP
• Network Interfaces: Dual switched auto-sensing 10/100/1000 Mbps Ethernet ports, integrated PoE
• Graphic Display: 132 x 64 backlit graphical LCD display
• Feature Keys: 3 line keys with dual-color LED and 3 SIP accounts, 3 XML programmable context sensitive soft keys, 5 (navigation, menu) keys, 8 BLF keys, 13 dedicated function keys for MUTE, HEADSET, TRANSFER, CONFERENCE, SEND and REDIAL, SPEAKERPHONE, VOLUME, PHONEBOOK, MESSAGE, HOLD, PAGE/INTERCOM, RECORD, HOME
• Voice Codecs: Support for G.711µ/a, G.722 (wide-band), G.723 (pending), G.726-32, G.729 A/B, iLBC (pending), Opus (pending), in-band and out-of-band DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC
• Telephone Features: Hold, transfer, forward (unconditional/no-answer/busy), call park/pickup, 4-way conference, shared-call-appearance (SCA) / bridged-line appearance (BLA), downloadable phone book (XML, LDAP, up to 500 items), call waiting, call history (up to 200 records), off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot desking, personalized music ringtones, server redundancy & fail-over
• Headset Jack: RJ9 headset jack (allowing EHS with Plantronics headsets)
• HD Audio: Yes, HD handset and speakerphone with support for wideband audio
• Base Stand: Yes, 2 angled positions available, wall mountable
• Headset Jack: Yes
• QoS: Layer 2 QoS (802.1Q, 802.1P) and Layer 3 QoS (ToS, DiffServ, MPLS)
• Security; User and administrator level access control, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, TLS, SRTP, HTTPS, 802.1x media access control
• Multi-language: English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, simplified and traditional Chinese, Korean, Japanese and more
• Upgrade/Provisioning: Firmware upgrade via TFTP / HTTP / HTTPS, mass provisioning using TR-069 or AES encrypted XML configuration file
• Physical Dimension: 222.5mm (L) x 208.5mm (W) x 76.2mm (H) (with handset) Unit weight: 0.8kg
• Package weight: 1.2kg
• Temperature and Humidity: Operation: 0°C to 40°C
• Storage: -10°C to 60°C
• Humidity: 10% to 90%

INTENDED USE / APPLICATIONS

• Business voice communications
• Office, reception, and institutional environments
• Integration with compatible SIP/VoIP systems
