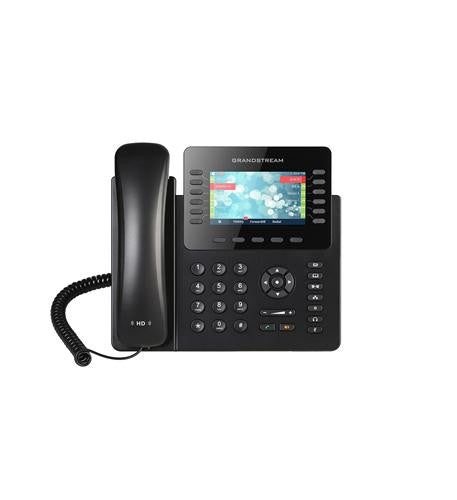

Grandstream GXP2170 Enterprise IP Phone 12 Line Keys Dual Gigabit PoE

PRODUCT OVERVIEW

Grandstream GXP2170 An Enterprise IP Phone for High-Volume Users

PRODUCT TYPE

IP Phones

KEY FEATURES

• 12 dual-color line keys (with 6 SIP accounts), 5 XML programmable contextsensitive soft keys
• Dual switched auto-sensing 10/100/1000Mbps Gigabit network ports
• 48 digitally programmable & customizable BLF/fastdial keys, and supports up to 4 cascaded GXP2200EXT Modules
• Built-in Bluetooth for syncing headsets and mobile devices for contact books, calendars & call transferring
• HD audio to maximize audio quality and clarity; full duplexspeakerphone
• Built-in PoE to power the devices and give it a network connection
• Supports EHS compatible Plantronics’s headsets
• Automated provisioning options include TR-069 and XML config files
• Built-in USB port for importing and exporting data
• TLS and SRTP security encryption technology to protect calls and accounts
• 5-way audio conferencing for easy conference calls
• Use with Grandstream’s UCM6100 series IP PBX appliance for Zero-Config provisioning, 1-touch call recording & more
• Protocols/Standards: SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS(A record, SRV, NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR069, 802.1x, TLS, SRTP, IPV6
• Network Interfaces: Dual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with inte- grated PoE
• Graphic Display: 4.3 inch (480x272) TFT color LCD
• Bluetooth: Yes, integrated
• Feature Keys: 12 line keys with up to 6 SIP accounts, 5 XML programmable context sensitive softkeys, 5 navigation/menu keys, 11 dedicated function keys for : MESSAGE(with LED indicator), PHONEBOOK, TRANSFER, CONFERENCE, HOLD, HEADSET, MUTE, SEND/REDIAL, SPEAKERPHONE, VOL+, VOL
• Voice Codecs: Support for G7.29A/B, G.711µ/a-law, G.726, G.722(wide-band), in-band and outof-band DTMF(in audio, RFC2833, SIP INFO)

TECHNICAL SPECIFICATIONS

• Brand: Grandstream
• Model: GXP2170
• Product Type: IP Phones
• 12 dual-color line keys (with 6 SIP accounts), 5 XML programmable contextsensitive soft keys
• Dual switched auto-sensing 10/100/1000Mbps Gigabit network ports
• 48 digitally programmable & customizable BLF/fastdial keys, and supports up to 4 cascaded GXP2200EXT Modules
• Built-in Bluetooth for syncing headsets and mobile devices for contact books, calendars & call transferring
• HD audio to maximize audio quality and clarity; full duplexspeakerphone
• Built-in PoE to power the devices and give it a network connection
• Supports EHS compatible Plantronics’s headsets
• Automated provisioning options include TR-069 and XML config files
• Built-in USB port for importing and exporting data
• TLS and SRTP security encryption technology to protect calls and accounts
• 5-way audio conferencing for easy conference calls
• Use with Grandstream’s UCM6100 series IP PBX appliance for Zero-Config provisioning, 1-touch call recording & more
• Protocols/Standards: SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS(A record, SRV, NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR069, 802.1x, TLS, SRTP, IPV6
• Network Interfaces: Dual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with inte- grated PoE
• Graphic Display: 4.3 inch (480x272) TFT color LCD
• Bluetooth: Yes, integrated
• Feature Keys: 12 line keys with up to 6 SIP accounts, 5 XML programmable context sensitive softkeys, 5 navigation/menu keys, 11 dedicated function keys for : MESSAGE(with LED indicator), PHONEBOOK, TRANSFER, CONFERENCE, HOLD, HEADSET, MUTE, SEND/REDIAL, SPEAKERPHONE, VOL+, VOL
• Voice Codecs: Support for G7.29A/B, G.711µ/a-law, G.726, G.722(wide-band), in-band and outof-band DTMF(in audio, RFC2833, SIP INFO)
• Auxiliary Ports: RJ9 headset jack (allowing EHS with Plantronics headsets), USB, extension module port
• Telephony Features: Hold, transfer, forward, 5-way conference, call park, call pickup, shared-call-appearance(SCA)/bridged-line-appearance(BLA), downloadable phonebook(XML, LDAP, up to 2000 items), call waiting, call log(up to 500 records), XML customization of screen, off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot desking, personalized music ringtones and music on hold, server redundancy and fail-over
• HD Audio: Yes, HD handset and speakerphone with support for wideband audio
• Extension Module: Yes, can power up to 4 GXP2200EXT modules which features a 128x384 graphic LCD, 20 quick-dial/BLF keys which dual-color LED, 2 navigation keys, and less than 1.2W power consumption per unit.

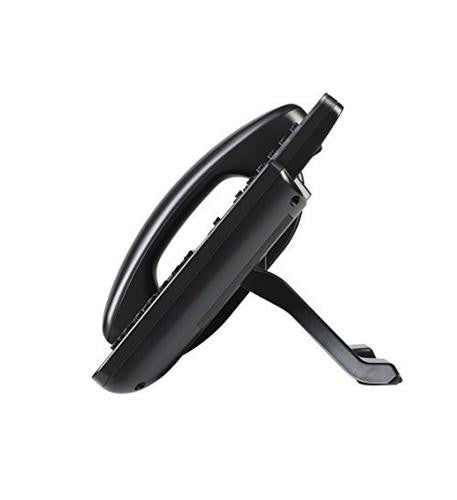

• Base Stand: Yes, 2 angle positions available, Wall Mountable QoS Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS
• Security: User and administrator level passwords, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, SRTP, TLS, 802.1x media access control
• Multi-language: English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, Chinese, Korean, Japanese
• Upgrade/Provisioning: Firmware upgrade via TFTP / HTTP / HTTPS, mass provisioning using TR-069 or AES encrypted XML configuration file.
• Power & Green Energy Efficiency: Universal power adapter included: Input:100-240V ; Output: +12V, 1.0A ; Integrated Power-over-Ethernet(802.3af)
• Max power consumption: 5.4W(without GXP2200EXT) or 9.2W(with 4 cascaded GXP2200EXTs)
• Physical Dimension: 228mm(W) x 206mm(L) x 46mm(H) Unit weight: 0.98kg

INTENDED USE / APPLICATIONS

• Business voice communications
• Office, reception, and institutional environments
• Integration with compatible SIP/VoIP systems
