Grandstream HT813 Hybrid ATA 1 FXS 1 FXO PSTN VoIP T.38 Fax

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐈𝐓𝐋𝐄
Grandstream HT813 Hybrid ATA 1 FXS 1 FXO PSTN VoIP T.38 Fax

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐎𝐕𝐄𝐑𝐕𝐈𝐄𝐖

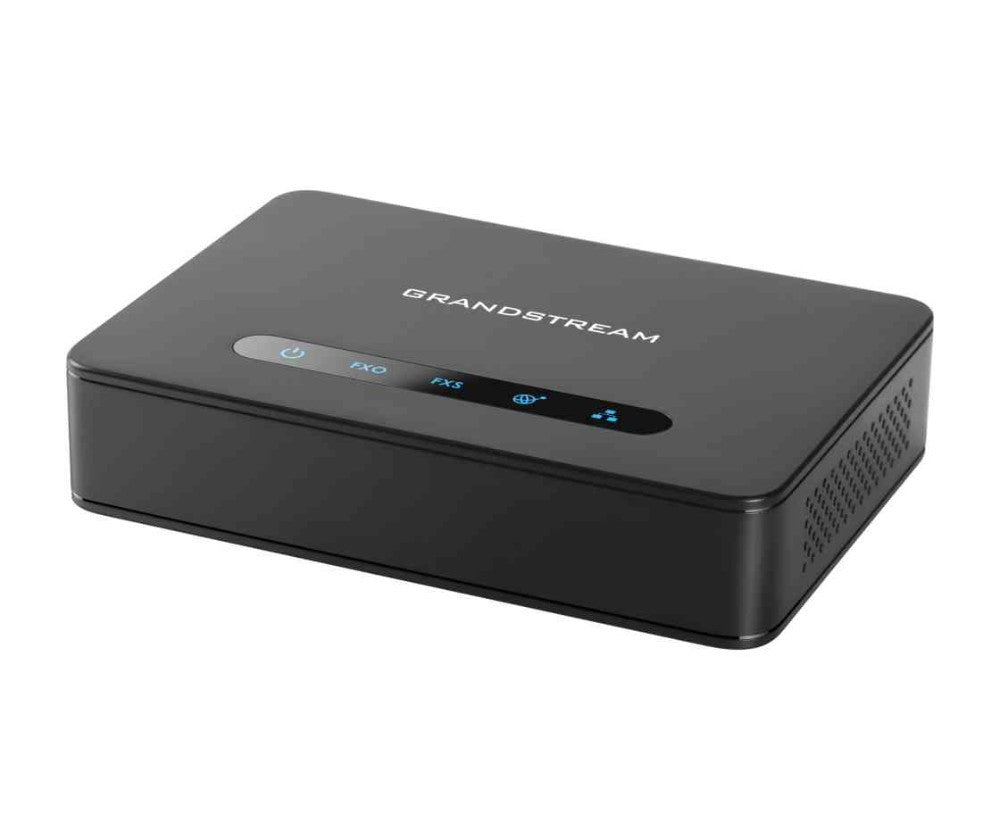

The HT813 is an analog telephone adapter that features 1 analog telephone FXS port and 1 PSTN line FXO port in order to offer backup lifeline support using a PSTN line. The integration of a FXO and FXS port enables this hybrid ATA to support remote calling to and from the PSTN line. For added flexibility, the FXS port extends VoIP service to one analog device. Users can convert their analog technology to VoIP thanks to the HT813’s ultra-compact size, HD voice quality, advanced VoIP functionality, high-end security protection and multiple auto provisioning options. These advanced features also allow service providers to offer high quality IP service to customers looking to upgrade to VoIP.

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐘𝐏𝐄 / 𝐂𝐀𝐓𝐄𝐆𝐎𝐑𝐘
Networking
IP Phones

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐊𝐄𝐘 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒
• Supports 2 SIP profiles through 1 FXS port and 1 FXO port
• Dual 100Mbps LAN and WAN ports
• Lifeline support (FXS port will be hardrelayed to FXO port) in case of power outage
• 3-way voice conferencing per port
• Automated & secure provisioning options using TR069
• Supports T.38 Fax for reliable Faxover-IP
• Failover SIP server automatically switches to secondary server if main server loses connection
• Strong AES encryption with security certificate per unit
• Telephone Interfaces: One (1) RJ11 FXS port, One (1) RJ11 FXO PSTN line port with lifeline support
• Network Interface: Two (2) 10/100Mbps ports (RJ45) with integrated NAT router
• LED Indicators: POWER, LAN, WAN, FXS, FXO
• Factory Reset Button: Yes
• Voice, Fax, Modem: Telephone Features: Caller ID display or block, call waiting, flash, blind or attended transfer, forward, hold, do not disturb, 3-way conference
• Voice Codecs: G.711 with Annex I (PLC) and Annex II (VAD/CNG), G.723.1, G.729A/B, G.726, iLBC, OPUS, dynamic jitter buffer, advanced line echo cancellation
• Fax over IP: T.38 compliant Group 3 Fax Relay up to 14.4kpbs and auto-switch to G.711 for Fax Pass-through
• Short/Long Haul: Ring Load 3 REN: Up to 1km on 24 AWG
• Caller ID: Bellcore Type 1 & 2, ETSI, BT, NTT, and DTMF-based CID
• Disconnect Methods: Busy Tone, Polarity Reversal/Wink, Loop Current

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐓𝐄𝐂𝐇𝐍𝐈𝐂𝐀𝐋 𝐒𝐏𝐄𝐂𝐈𝐅𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Brand: Grandstream
• Model: HT813
• Product Type: IP Phones
• Supports 2 SIP profiles through 1 FXS port and 1 FXO port
• Dual 100Mbps LAN and WAN ports
• Lifeline support (FXS port will be hardrelayed to FXO port) in case of power outage
• 3-way voice conferencing per port
• Automated & secure provisioning options using TR069
• Supports T.38 Fax for reliable Faxover-IP
• Failover SIP server automatically switches to secondary server if main server loses connection
• Strong AES encryption with security certificate per unit
• Telephone Interfaces: One (1) RJ11 FXS port, One (1) RJ11 FXO PSTN line port with lifeline support
• Network Interface: Two (2) 10/100Mbps ports (RJ45) with integrated NAT router
• LED Indicators: POWER, LAN, WAN, FXS, FXO
• Factory Reset Button: Yes
• Voice, Fax, Modem: Telephone Features: Caller ID display or block, call waiting, flash, blind or attended transfer, forward, hold, do not disturb, 3-way conference
• Voice Codecs: G.711 with Annex I (PLC) and Annex II (VAD/CNG), G.723.1, G.729A/B, G.726, iLBC, OPUS, dynamic jitter buffer, advanced line echo cancellation
• Fax over IP: T.38 compliant Group 3 Fax Relay up to 14.4kpbs and auto-switch to G.711 for Fax Pass-through
• Short/Long Haul: Ring Load 3 REN: Up to 1km on 24 AWG
• Caller ID: Bellcore Type 1 & 2, ETSI, BT, NTT, and DTMF-based CID
• Disconnect Methods: Busy Tone, Polarity Reversal/Wink, Loop Current
• Signaling: Network Protocols: TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS, DHCP, NTP, TFTP, TELNET, STUN, SIP (RFC3261), SIP over TCP/TLS, SRTP, TR-069
• QoS: Layer 2 (802.1Q VLAN, SIP/RTP 802.1p) and Layer 3 (ToS, Diffserv, MPLS) DTMF Method In-audio, RFC2833 and/or SIP INFO
• Provisioning and Control: HTTP, HTTPS, TFTP, SSH, TR-069, secure and automated provisioning using AES encryption, syslog
• Security: Media: SRTP
• Control: TLS/SIPS/HTTPS
• Management: Syslog support, telnet, SSH, remote management using web browser
• Physical: Universal Power Supply:
• Input: 100-240VAC, 50-60Hz
• Output: 12V/0.5A
• Environmental: Operational: 32º – 104ºF or 0º – 40ºC
• Storage: 14º – 140ºF or -10º – 60ºC

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
