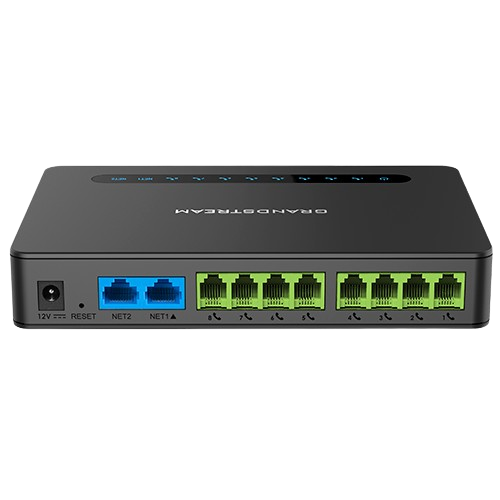

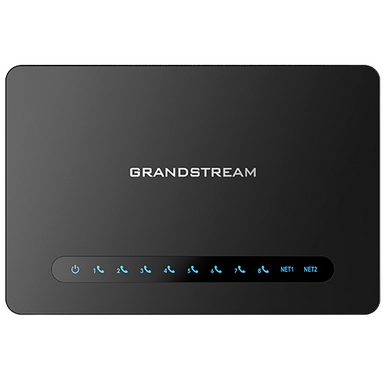

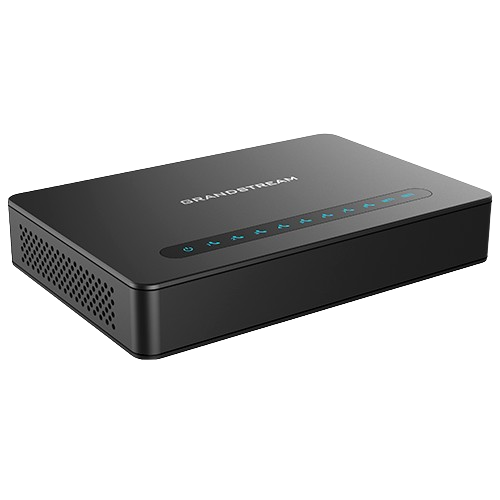

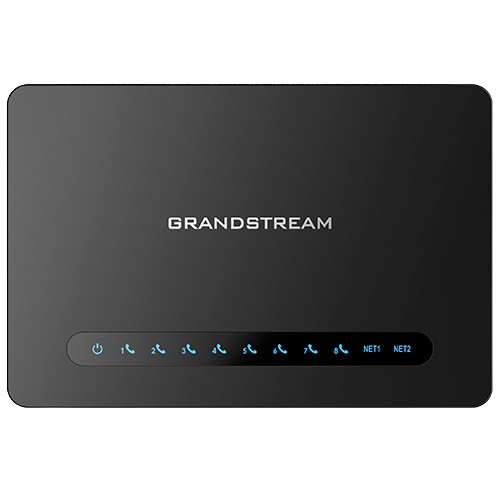

Grandstream HT818-V2 8-Port FXS VoIP Gateway Gigabit NAT Router SIP

PRODUCT OVERVIEW

Grandstream HT818-V2 Powerful 8 port FXS Gateway with Gigabit NAT Router

PRODUCT TYPE

IP Phones

KEY FEATURES

• Supports 2 SIP profiles and 8 FXS ports
• Strong AES encryption with unique security certificate per unit
• Automated & secure provisioning options using TR069
• 3-way voice conferencing per port
• Exceptional voice quality with wideband HD codec
• Supports T.38 Fax for reliable Faxover-IP
• Supports dual Gigabit network ports
• High performance NAT router
• Technical Specification
• Interfaces: Telephone Interfaces: Eight (8) RJ11 FXS ports; can be expanded by peering with an FXS gateway
• Network Interface: Two (2) 10/100/1000Mbps RJ45 ports
• LED Indicators: POWER, NET1, NET2, PHONE1, PHONE2, PHONE3, PHONE4, PHONE5, PHONE6, PHONE7, PHONE8
• Factory Reset Button: Yes
• Voice, Fax, Modem: Telephony Features: Caller ID display or block, call waiting, flash, blind or attended transfer, forward, hold, do not disturb, 3-way conference
• Voice Codecs: G.711 with Annex I (PLC) and Annex II (VAD/CNG), G.722, G.723.1, G.729A/B, G.726-32, iLBC, OPUS, dynamic jitter buffer,
• advanced line echo cancellation
• Fax over IP: T.38 compliant Group 3 Fax Relay up to 14.4kpbs and auto-switch to G.711 for Fax Pass-through
• Short/Long Haul Ring Load: 2 REN, up to 1km on 24AWG line

TECHNICAL SPECIFICATIONS

• Brand: Grandstream
• Model: HT818-V2
• Product Type: Routers/Switches
• Supports 2 SIP profiles and 8 FXS ports
• Strong AES encryption with unique security certificate per unit
• Automated & secure provisioning options using TR069
• 3-way voice conferencing per port
• Exceptional voice quality with wideband HD codec
• Supports T.38 Fax for reliable Faxover-IP
• Supports dual Gigabit network ports
• High performance NAT router
• Interfaces: Telephone Interfaces: Eight (8) RJ11 FXS ports; can be expanded by peering with an FXS gateway
• Network Interface: Two (2) 10/100/1000Mbps RJ45 ports
• LED Indicators: POWER, NET1, NET2, PHONE1, PHONE2, PHONE3, PHONE4, PHONE5, PHONE6, PHONE7, PHONE8
• Factory Reset Button: Yes
• Voice, Fax, Modem: Telephony Features: Caller ID display or block, call waiting, flash, blind or attended transfer, forward, hold, do not disturb, 3-way conference
• Voice Codecs: G.711 with Annex I (PLC) and Annex II (VAD/CNG), G.722, G.723.1, G.729A/B, G.726-32, iLBC, OPUS, dynamic jitter buffer, advanced line echo cancellation
• Fax over IP: T.38 compliant Group 3 Fax Relay up to 14.4kpbs and auto-switch to G.711 for Fax Pass-through
• Short/Long Haul Ring Load: 2 REN, up to 1km on 24AWG line
• Caller ID: Bellcore Type 1 & 2, ETSI, BT, NTT, and DTMF-based CID
• Dial Methods: DTMF, Pulse
• Disconnect Methods: Busy Tone, Polarity Reversal/Wink, Loop Current
• Signaling: Network Protocols: TCP/IP/UDP, RTP/RTCP (RFC1889, 1890), HTTP/HTTPS, ARP/RARP, ICMP, DNS, DHCP, NTP, TFTP, SSH, Telnet, STUN (RFC3489, 5389), SIP (RFC3261), SIP over TCP/TLS, SRTP, SNMP, TR-069, IMS/3GPP, IPoE
• QoS: Layer 2 (802.1Q VLAN, SIP/RTP 802.1p) and Layer 3 (ToS, Diffserv, MPLS), Traffic Shaping
• DTMF Method: In-audio, RFC2833 and/or SIP INFO
• Provisioning and Control: HTTP, HTTPS, SSH, TFTP, TR-069 , secure and automated provisioning using AES encryption, syslog
• Security: Media: SRTP
• Control: TLS/SIPS/HTTPS, SDP(RFC 2327), Refer (RFC 3515), Offer/Answer (RFC3265) SIP V2.0 (RFC 3261, 3262, 3264), RFC3261 ETC (3GPP TS24.629, RFC 3515, RFC 3891, RFC 3892)
• SIP Session Timer (RFC 4028)
• Management: Syslog support, SSH, remote management using web browser
• Physical: Universal Power Supply: Input: 100-240VAC, 50-60Hz
• Output: 12V/1.5A

INTENDED USE / APPLICATIONS

• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
