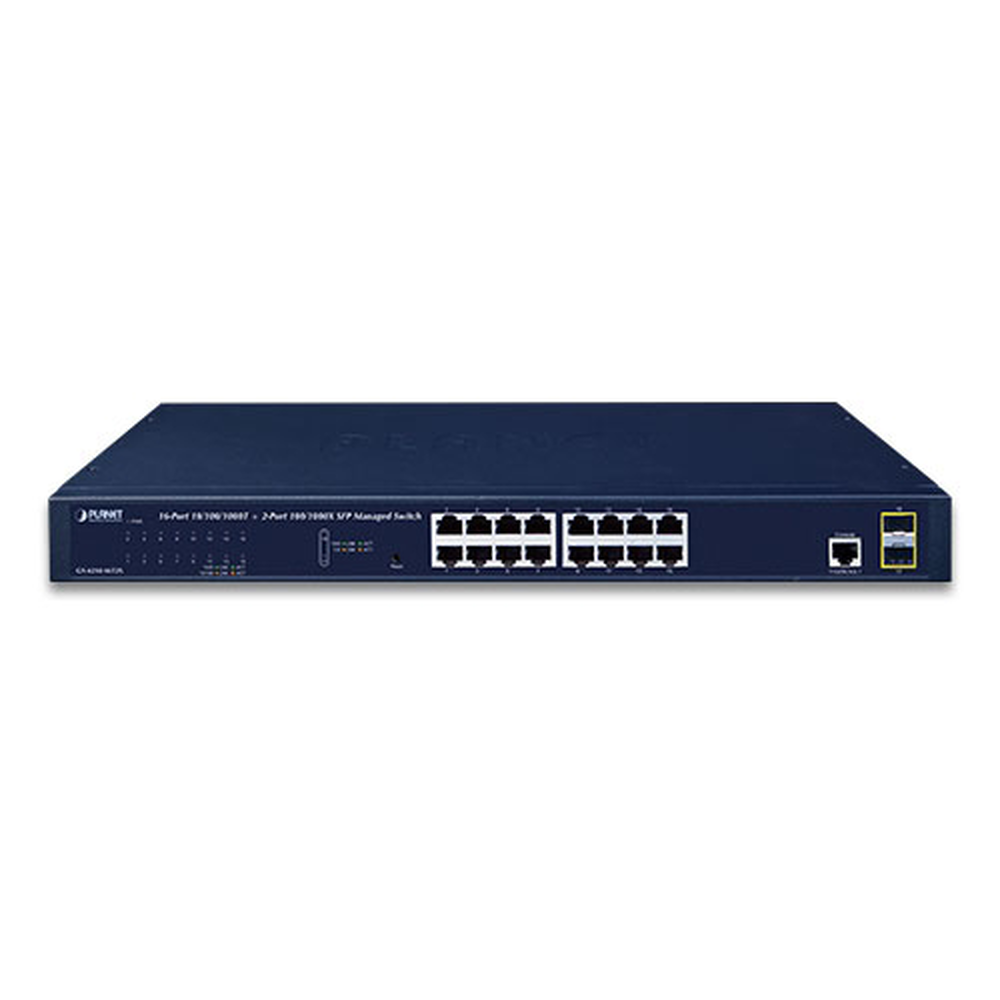

Planet GS-4210-16T2S Layer 2 Managed Switch with 16 Gigabit Ports, 2 SFP Ports, and Console Port

PLANET

Planet GS-4210-16T2S 16-Port Gigabit Managed Switch 2 SFP QoS

Product identifier
SKU GS-4210-16T2S
$82.99
Available to order

Lead time confirmed after order.

Request a quote Need help confirming fit? Talk to a specialist →
  • Product availability confirmed before fulfillment.
  • Support in English, Spanish and Portuguese.
  • 30-day returns and RMA support.

Product details

Switch QoS and Edge Security

The GS-4210-16T2S connects up to 16 high speed workstations in the Ethernet environment, in which its two SFP mini-GBIC interfaces provide an uplink to a department backbone.

Specifications
Hardware version 2
Copper ports 16 ports 10/100/1000BASE-T RJ45 auto-MDI/MDI-X
SFP/mini-GBIC slots
2 interfaces 100/1000BASE-X SFP, supporting 100/1000 Mbps dual mode
Console 1 serial port RS232 to RJ45 (115200, 8, N, 1)
Energy requirements 100~240 V AC, 50/60 Hz, 0,8 A (max)
Dimensions
445 x 207 x 45 mm (height 1U)
Weight 2kg
Performance 26.7Mpps @64 bytes
MAC address table 8K inputs
Layer 2 functions Port Mirroring, VLAN, Link Aggregation, Spanning Tree Protocol, IGMP Snooping, MLD Snooping, QoS, Ring
Management interface RS232 to RJ45 console, web browser web, Telnet, SNMP v1, v2c, SSHv2, TLS v1.2, SNMPv3
Operating temperature Temperatura: 0 ~ 50 grados C
Humedad relativa: 5 ~ 95 % (sin condensación)
Storage temperature Temperature: -10 ~ 70 degrees C
Relative humidity: 5 ~ 95 % (non-condensing)
Package includes:

-Managed Switch

-Quick configuration guide

-Cable RS232 to RJ45

-4 rubber feet

-Mounting for rack

-Power cable

-SFP port covers

Key Features

  • CloudNMS Platform Eliminates Need for Hardware Controllers
  • Centralized Management for Multi-Site Network Deployments
  • 26.7 Mpps Forwarding Rate at 64-Byte Packet Size
  • QoS Support for Traffic Prioritization and Bandwidth Control
  • Multiple Management Interfaces: Web, Telnet, SNMP, SSH
  • 8K MAC Address Table Capacity for Large Networks
