PLANET

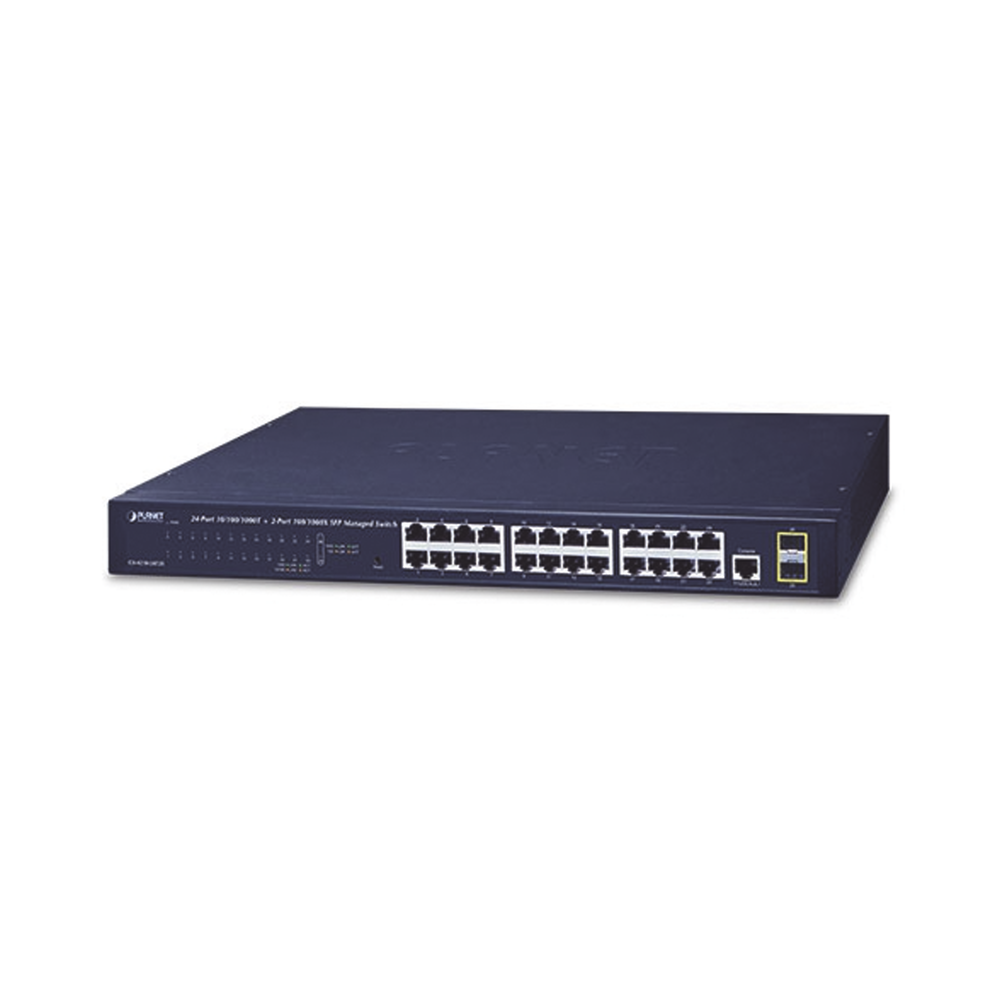

Planet GS-4210-24T2S 24-Port Gigabit PoE Managed Network Switch 2 SFP
Product identifier
SKU
GS-4210-24T2S
$147.65
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
Funcionalidades
| Hardware Specifications | |
|---|---|
| Hardware version | 2 |
| Copper ports | 24 ports 10/100/1000BASE-T RJ45 auto-MDI/MDI-X |
| Slots SFP/mini-GBIC | 2 interfaces 100/1000BASE-X SFP, compatible with 100/1000 Mbps dual-mode |
| Console | 1 port serial RS232 to RJ45 (115200, 8, N, 1) |
| Dimensions | 445 x 207 x 45 mm (height 1U) |
| Weight | 2,1 kg |
| Housing | Metal |
| Energy requirement | 100~240 V AC, 50/60 Hz, 0,8 A (max.) |
| Consumption/energy dissipation | max. 14 Watts/47 BTU |
| Switch fabric | 52 Gbps/non-blocking |
| MAC address table | 8K entries |
| Flow control |
IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex |
| Jumbo frame | 9216 bytes |
| Basic management interfaces |
RS232 to RJ45 Console Web browser Telnet SNMP v1, v2c |
| Storage temperature |
Temperature: -10 ~ 70 degrees C Relative humidity: 5 ~ 95 % (non-condensing) |
| Operating temperature |
Temperature: 0 ~ 50 degrees C Relative humidity: 5 ~ 95 % (non-condensing) |
| Layer 2 functions | Port Mirroring, VLAN, Link Aggregation, Spanning Tree Protocol, IGMP Snooping, MDL Snooping, Access Control List, QoS, Ring |
| Operating temperature |
Temperature: 0 ~ 50 degrees C Relative humidity: 5 ~ 95 % (non-condensing) |
| Storage temperature |
Temperature: -10 ~ 70 degrees C Relative humidity: 5 ~ 95 % (non-condensing) |
| Package includes | - 1 Switch GS-4210-24T2S - 1 installation guide - 1 Cable RS232 to RJ45 - 4 rubber legs - 2 mounting for rack - 1 power cable - Protector for SFP ports |
Key Features
- Non-Blocking 52 Gbps Switch Fabric for Maximum Performance
- Jumbo Frame Support up to 9216 Bytes for Efficient Data Transfer
- RS232 to RJ45 Console Interface for Easy Management
- Metal Housing 1U Rack Design for Durable Installation
- Operating Temperature Range 32°F to 122°F for Reliability
- Dual SFP Slots With 100/1000 Mbps Dual Mode Compatibility
