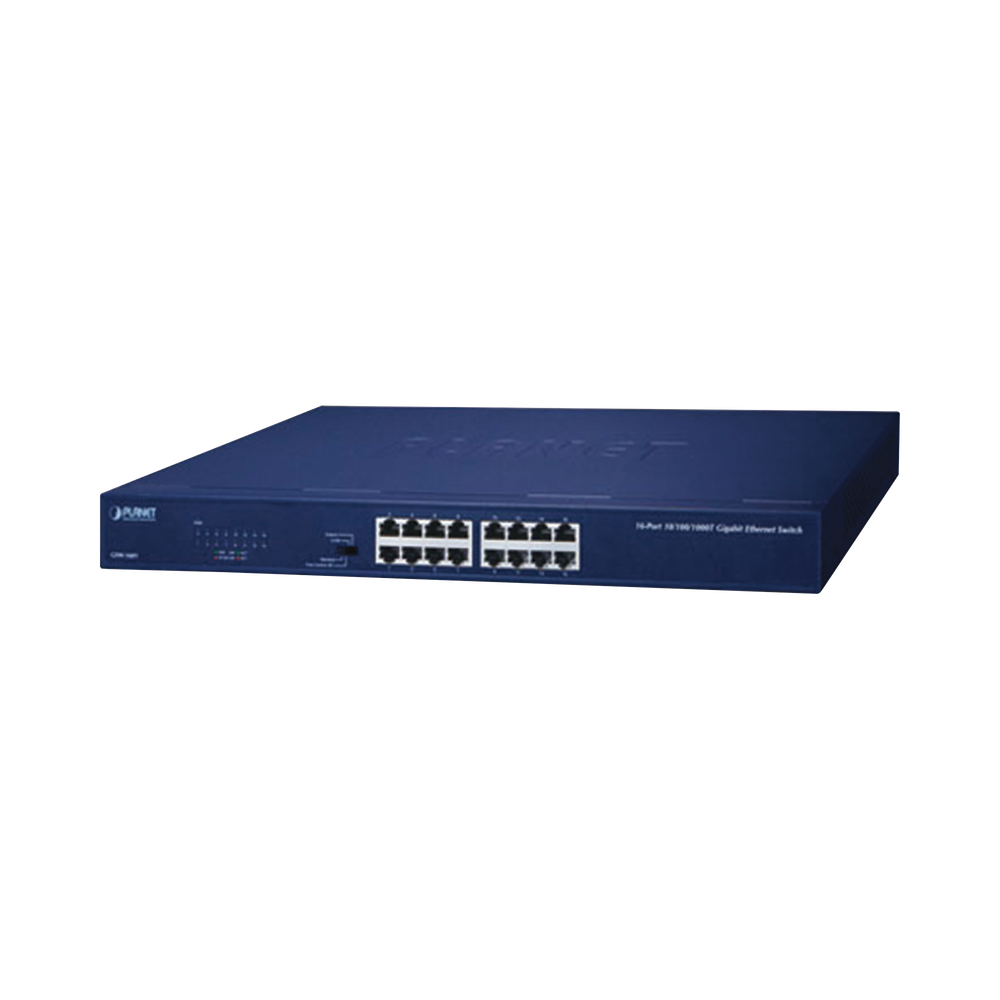

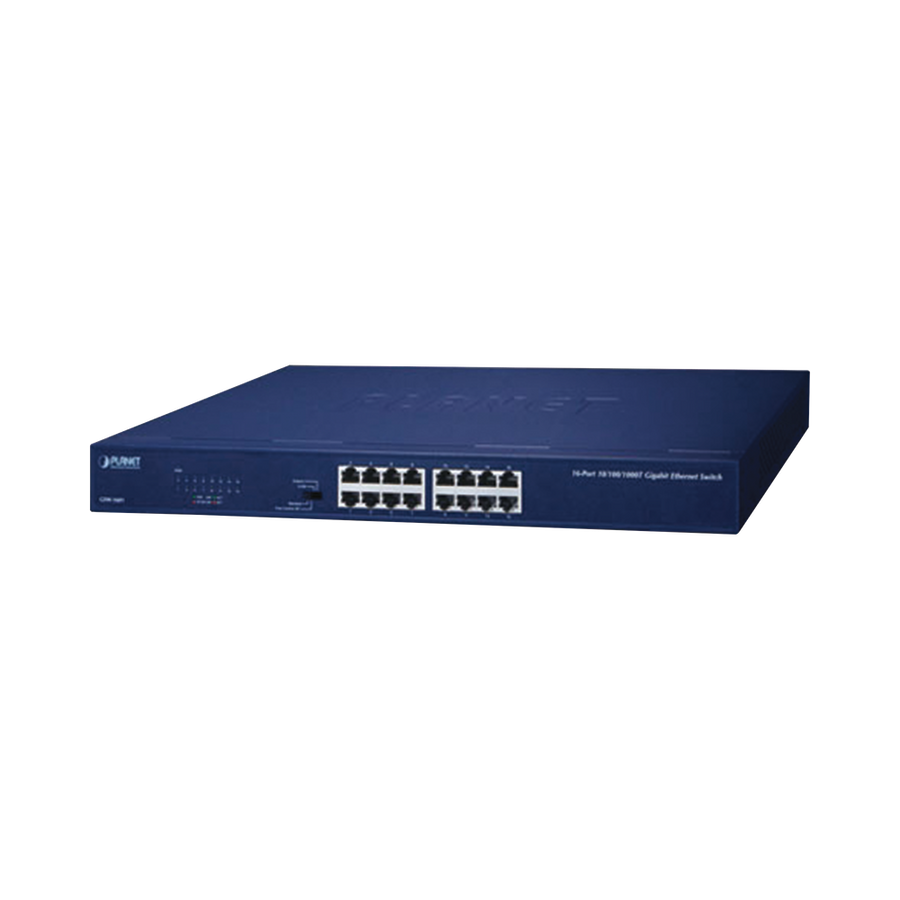

Planet GSW-1601 16-Port 10/100/1000 Mbps Gigabit Unmanaged Switch with Extended Mode for Distances up to 200m

PLANET

Planet GSW-1601 16-Port Gigabit Network Switch 32Gbps Extended Mode

Product identifier
SKU GSW-1601
$79.96
Available to order

Lead time confirmed after order.

Request a quote Need help confirming fit? Talk to a specialist →
  • Product availability confirmed before fulfillment.
  • Support in English, Spanish and Portuguese.
  • 30-day returns and RMA support.

Product details

VLAN Isolation Mode

VLAN operation mode features port-based VLAN function that can help prevent the connected clients' multicast or broadcast storm from influencing each other.

Extend Mode

Extend operation mode, operates on a per-port basis at 10Mbps duplex operation but can transmit data over a distance of up to 200 meters overcoming the 100m limit on Ethernet UTP cable.

Hardware Specifications
Hardware Version 9
10/100/1000BASE-T MDI/MDIX Ports
 16
Throughput (packet per second) 23,8Mpps
Switch fabric 32 Gbps
Weight 1,8 kg
Power Consumption/Dissipation 9,4 Watts/32 BTU
Power Requirements 100~240 V CA, 0,16 A, 50-60 Hz
Dimensions (W x D x H)
 440 x 208 x 44 mm, 1U of height
Switch Processing Scheme Store-and-Forward
Address Table 8K entries
Jumbo Packet Size 9K
Flow Control Back pressure for half duplex
IEEE 802.3x Pause Frame for full duplex
Dip switch

Operation mode selection:

Standard, Flow control off, VLAN, Extend　
Regulatory Compliance FCC Part 15 Class A, CE

Standards Compliance

 IEEE 802.3 (Ethernet)
IEEE 802.3u (Fast Ethernet)
IEEE 802.3ab (Gigabit Ethernet)
IEEE 802.3x (Full-Duplex Flow Control)
IEEE 802.3az Energy Efficient Ethernet (EEE)
Operating Operating Temperature: 0~50 degrees C
Relative Humidity: 5% to 95% (non-condensing)
Storage temperature
 Temperature: -10~70 degrees C
Relative Humidity: 5% to 95% (non-condensing)

Package content

- 1 Switch GSW-1601

- 1 power supplu cable

- 2 mounting for rack

- 1 user manual

Key Features

  • Plug and Play Installation With Rack Mount Capability
  • Extended Mode Enables 656 ft Transmission at 10 Mbps
  • 32 Gbps High Performance Switching Fabric for Maximum Throughput
  • Energy Efficient Design With Only 9.4 W Power Consumption
  • 8K MAC Address Table for Large Network Scalability
  • Port-Based VLAN Isolation for Enhanced Network Security
