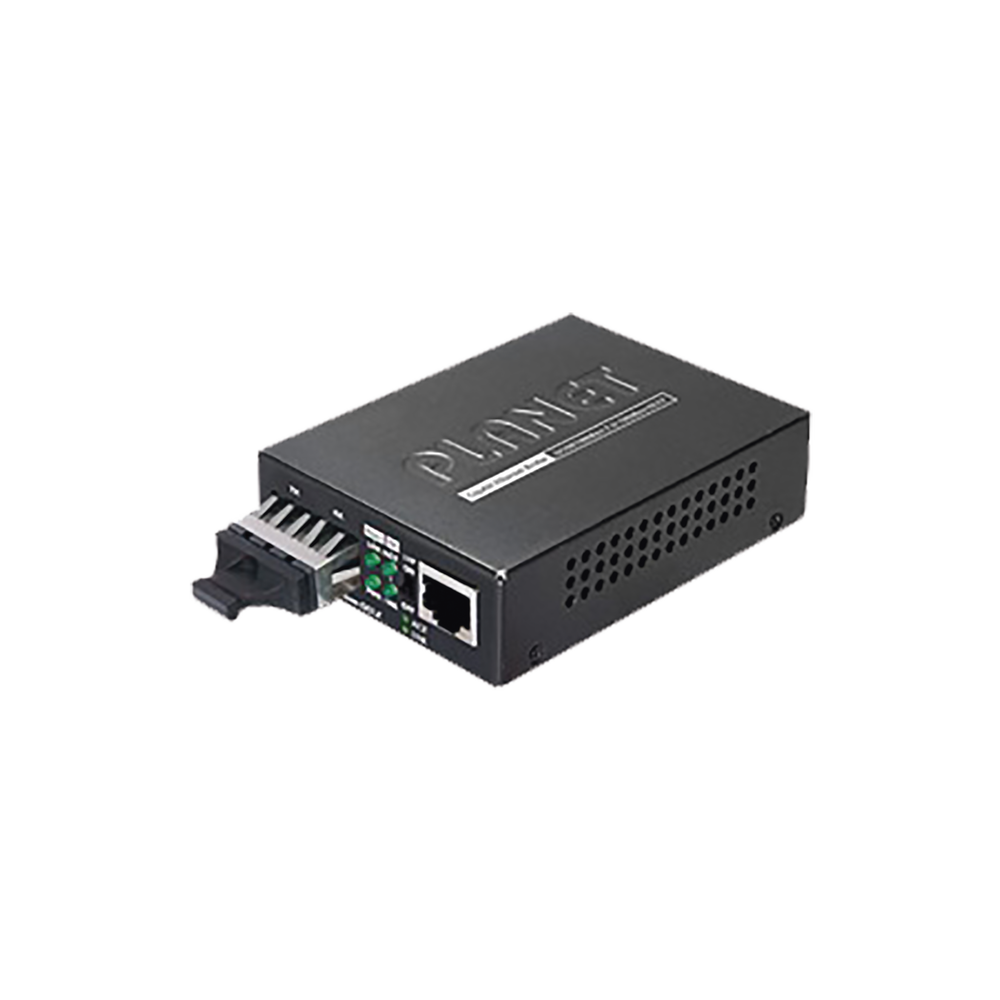

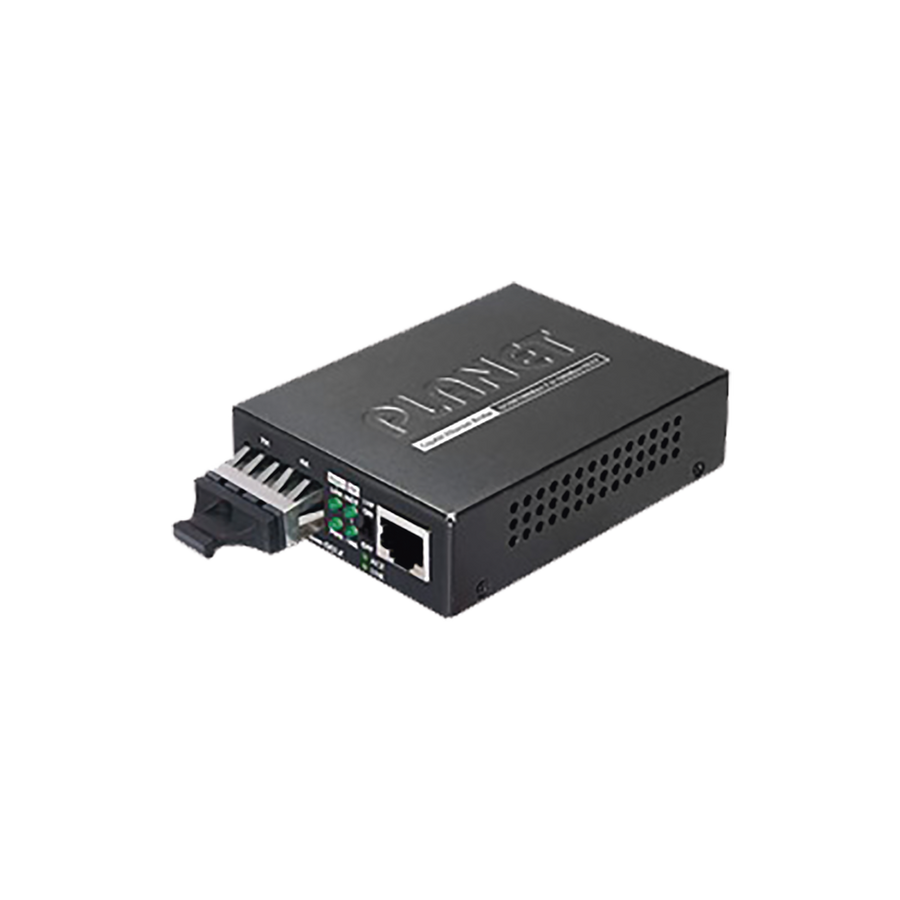

Planet GT-802S 1000Base-LX SFP Transceiver SC Single Mode 20km
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
Fiber-optic Networking for ISPs, Enterprises, and homes
With high performance of data transmission and easy installation, the GT-80x can build the ISP network solution of FTTH (Fiber to the Home) or FTTC (Fiber to the Curb) for ISPs and FTTBs (Fiber to the Building), for small office network environment of enterprises.
| Hardware Specifications | |
| Hardware Version | 6 |
| Ports | 1 port SC 1000BASE-LX: |
| Copper interface | Port RJ45 (auto-MDI/MDI-X) twisted pair |
| Optical interface | Yes |
| Fiber maximum distance | 20km |
| Optic wavelength | 1310nm |
| Max. optical launch power | -3dBm |
| Min. optical launch power | -9.5dBm |
| Max. input power | -3 |
| Min. input power | -20 |
| Optical link budget | 4,9 dB |
| Dip switch | LFP function (Disable / Enable) |
| Power consumption | 4,6 Watts/15 BTU (maximum) |
| Power input | 5V CC / 2A |
| Dimensions | 94 x 70 x 26 mm |
| Weight | 0,2 kg |
| Operating environment | Storage temperature: 0 to 50 degrees C |
| Storage environment | Storage temperature: -10 to 70 degrees C |
Key Features
- SC 1000Base-LX Port for Single Mode Fiber Connectivity
- Maximum Fiber Distance of 12.4 Miles for Long-Range Applications
- Low Power Consumption of Only 4.6 Watts Maximum
- Compact Design Measures 3.7 x 2.8 x 1.0 Inches
- Adjustable LFP Function With Dip Switch for Remote Management
- Continuous Operation From 32°F to 122°F Temperature Range
