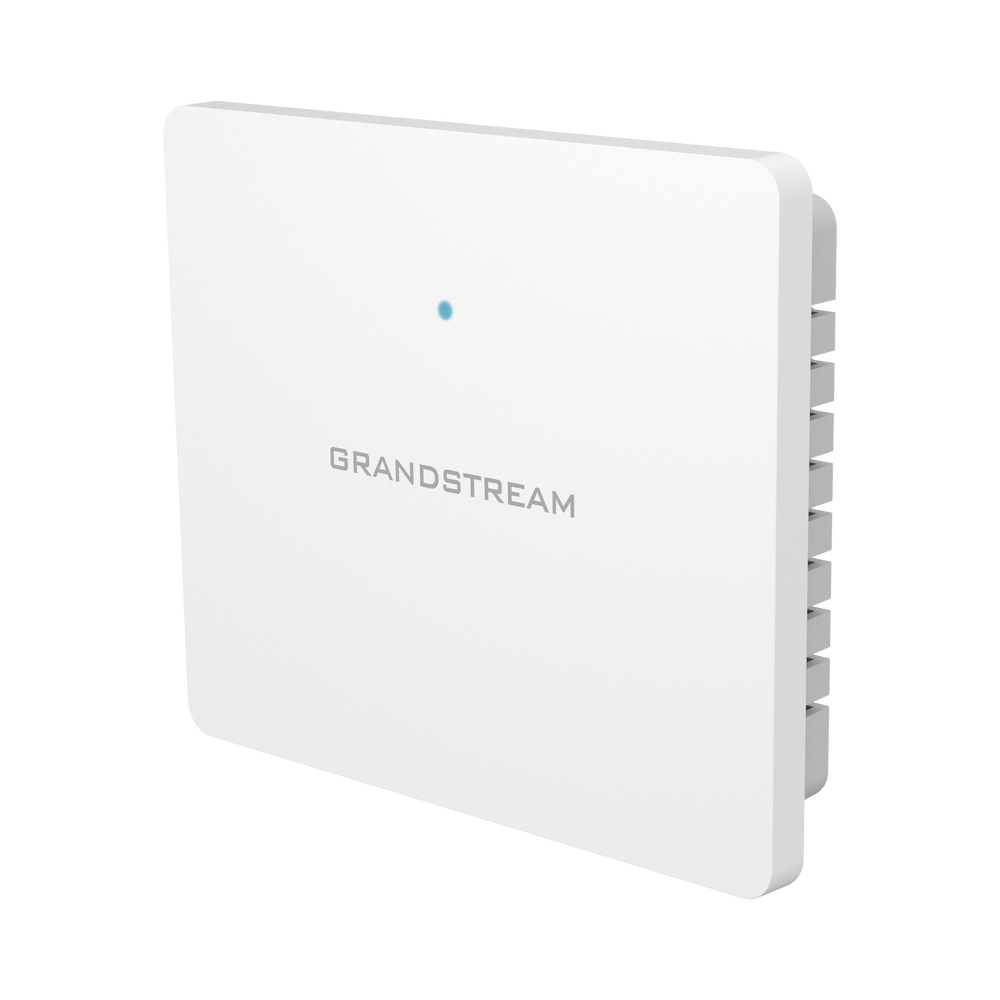

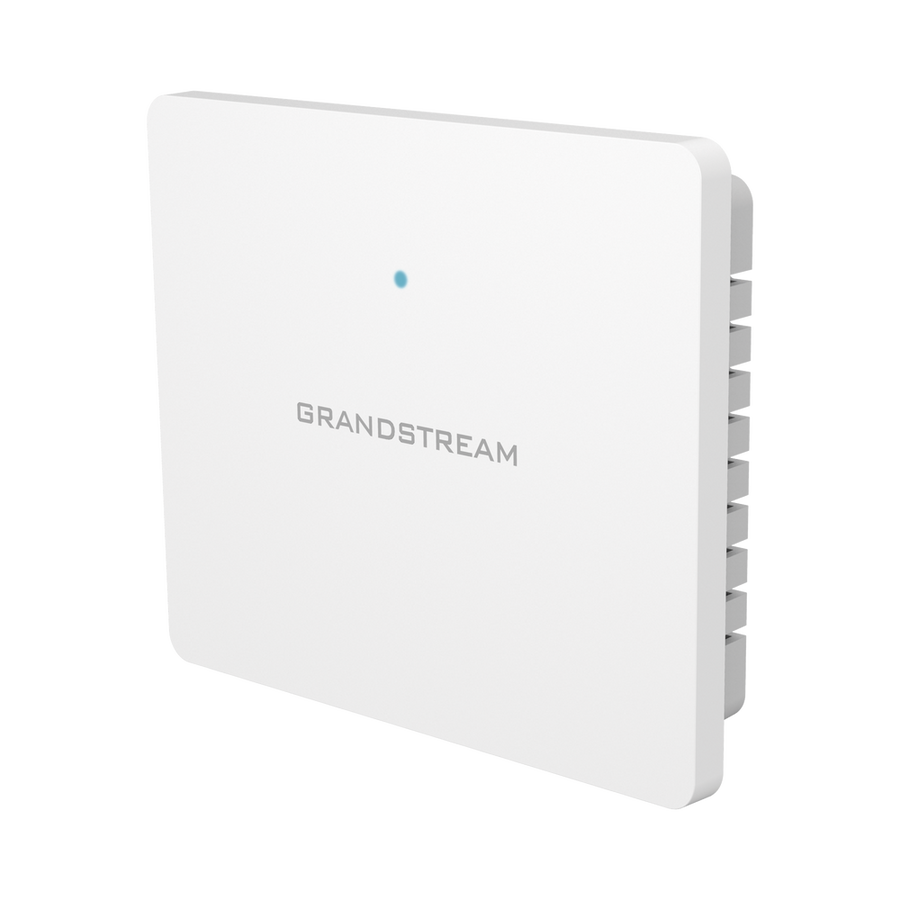

Grandstream GWN7603 802.11ac Wave-2 Wireless Access Point 1.27Gbps PoE

802.11ac Wave-2 Wi-Fi Access Point

The GWN7603 is a versatile, compact Wi-Fi access point that provides 4 Gigabit ports; two ports with PSE that can provide PoE and a network connection to other devices and one uplink port that can receive PoE to power the access point.

• 1.27Gbps aggregate wireless throughput, 1x Gigabit and 3x Gigabit wireline speed
• Up to 100 meters coverage range
• Self power adaptation upon auto detection of PoE/PoE+ and PSE
• Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
• Support up to 100+ Wi-Fi client devices
• Advanced QoS to ensure real-time performance of low-latency applications

• Client Devices: 100+
• 2.4G Throughput: 300Mbps (2x2:2 MU-MIMO); 400 Mbps with 256-QAM
• 5G Throughput: 867Mbps (2x2:2 MU-MIMO)
• Range: Up to 100 Meters
• Network Interfaces:
  • 1 x 10/100/1000M uplink Ethernet port with POE/POE+
  • 2 x 10/100/1000M Ethernet port with PSE
  • 1 x 10/100/1000M Ethernet port
• PoE/PoE+: Supports PoE 802.3af/ 802.3at; PSE max output per port: 12W;Max Consumption: 6.5W (Excluding PoE Output)
• Wi-Fi Standards: IEEE 802.11a/b/g/n/ac (Wave-2)
• SSIDs: 16 SSIDs total, 8 per radio (2.4Ghz and 5Ghz)
• Antennas: 2 dual band internal antennas
• Wi-Fi and Security Systems: WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
• Dimensions: 135mm x 115mm x 30mm
• Mounting: Indoor wall mount
