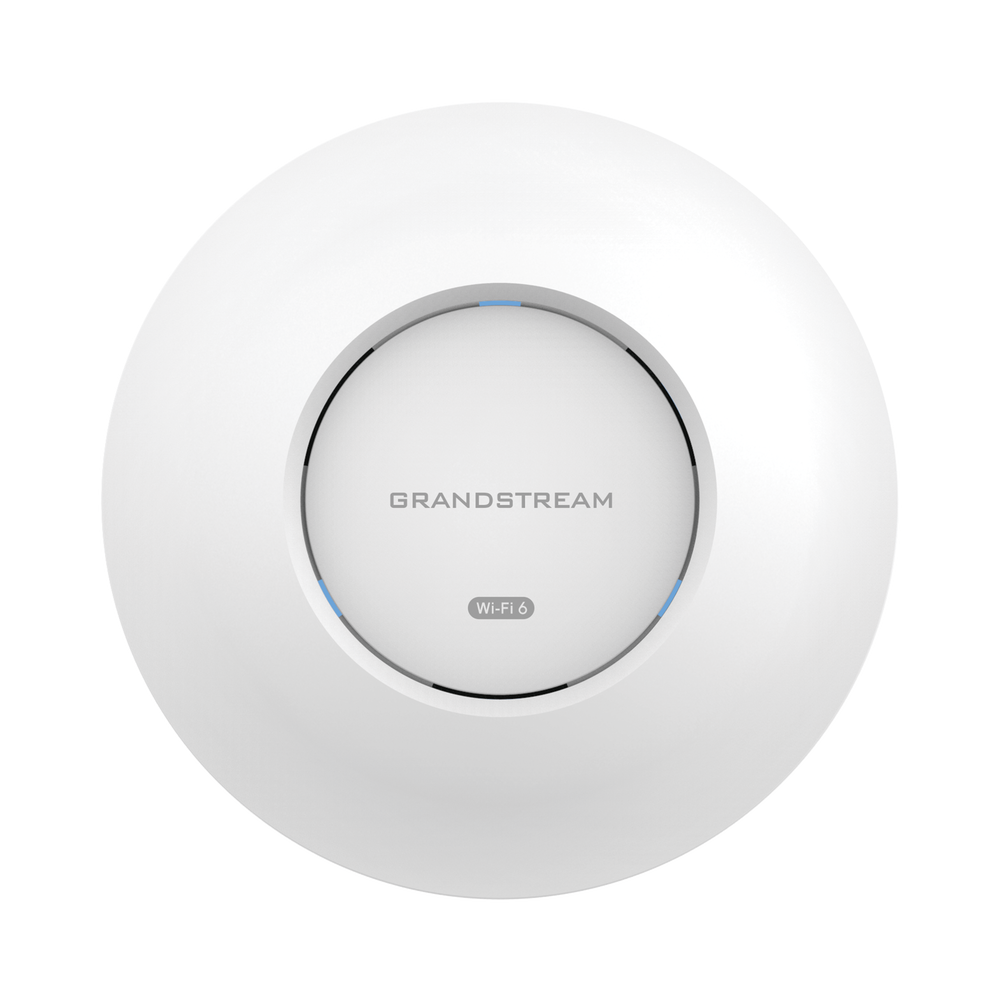

Grandstream GWN7660 AP 802.11ax Wi-Fi 6 / dual-band 2x2:2 MU-MIMO with DL/UL OFDMA with Cloud Management or Stand-alone

GRANDSTREAM

Grandstream GWN7660 Wi-Fi 6 Indoor Access Point 802.11ax 1.77Gbps Dual-Band

Product identifier
SKU GWN7660
$118.74
Available to order

Lead time confirmed after order.

Request a quote Need help confirming fit? Talk to a specialist →
  • Product availability confirmed before fulfillment.
  • Support in English, Spanish and Portuguese.
  • 30-day returns and RMA support.

Product details

Grandstream GWN7660

Enterprise 2x2:2 Wi-Fi 6 Indoor Access Point

The GWN7660 is an enterprise-grade 802.11ax Wi-Fi 6 access point that allows businesses to build next-generation wireless networks for high-density environments. It features dual-band 2x2:2 MU-MIMO paired with DL/UL OFDMA technology to optimize network throughput and overall device capacity.

⚙️ Main Features

Connectivity & Coverage

  • Wireless Throughput: 1.77Gbps aggregate wireless throughput.
  • Next-Gen Tech: Dual-band 2x2:2 MU-MIMO with DL/UL OFDMA technology.
  • Coverage Range: Up to 575 feet (175 meters).
  • High Density: Supports 500+ concurrent Wi-Fi client devices.
  • Advanced QoS: Ensures real-time performance of low-latency applications.

Management & Security

  • Embedded Controller: Can manage up to 50 local GWN series APs.
  • Cloud Management: GWN.Cloud offers unlimited AP management capability.
  • Premise Solution: GWN Manager offers premise-based software controller.
  • Data Lockdown: Anti-hacking secure boot and digital signatures protection.
  • Power Adaptation: Self-power adaptation upon auto detection of PoE or PoE+.

Technical Specifications

Radio & Network Interfaces

  • Wi-Fi Standards: IEEE 802.11 a/b/g/n/ac/ax (Wi-Fi 6).
  • Radio Throughput: 2.4G: 573.5Mbps (2x2:2 MIMO) / 5G: 1201Mbps (2x2:2 MU-MIMO).
  • Antennas: 2 dual band internal antennas.
  • Network Interfaces: 2x autosensing 10/100/1000 Base-T Ethernet Ports.
  • SSIDs Support: 32 SSIDs total, 16 per radio (2.4GHz and 5GHz).

Power, Security & Physical Specs

  • PoE/PoE+ Support: Supports PoE 802.3af/ 802.3at; Max Consumption: 9W.
  • Security Systems: WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES), WPA3.
  • Hardware Client Cap: 250+ concurrent client devices recommended.
  • Dimensions: 7.10 x 7.10 x 1.61" (180.4 x 180.4 x 40.8 mm).
  • Mounting: Indoor wall mount or ceiling mount, kits included.

Grandstream Networks - Next-Generation Wireless Connectivity Solutions

Key Features

  • Dual-Band MU-MIMO 2x2:2 With DL/UL OFDMA for High-Density Environments
  • Advanced QoS Ensures Low-Latency Real-Time Application Performance
  • Integrated Dual Gigabit Ethernet Ports With PoE/PoE+ Support
  • Scalable Management via GWN.Cloud or GWN Manager Platforms
  • Controllerless Architecture With Built-In Web Interface Management
  • Secure Boot With Digital Signatures and Anti-Piracy Protection
