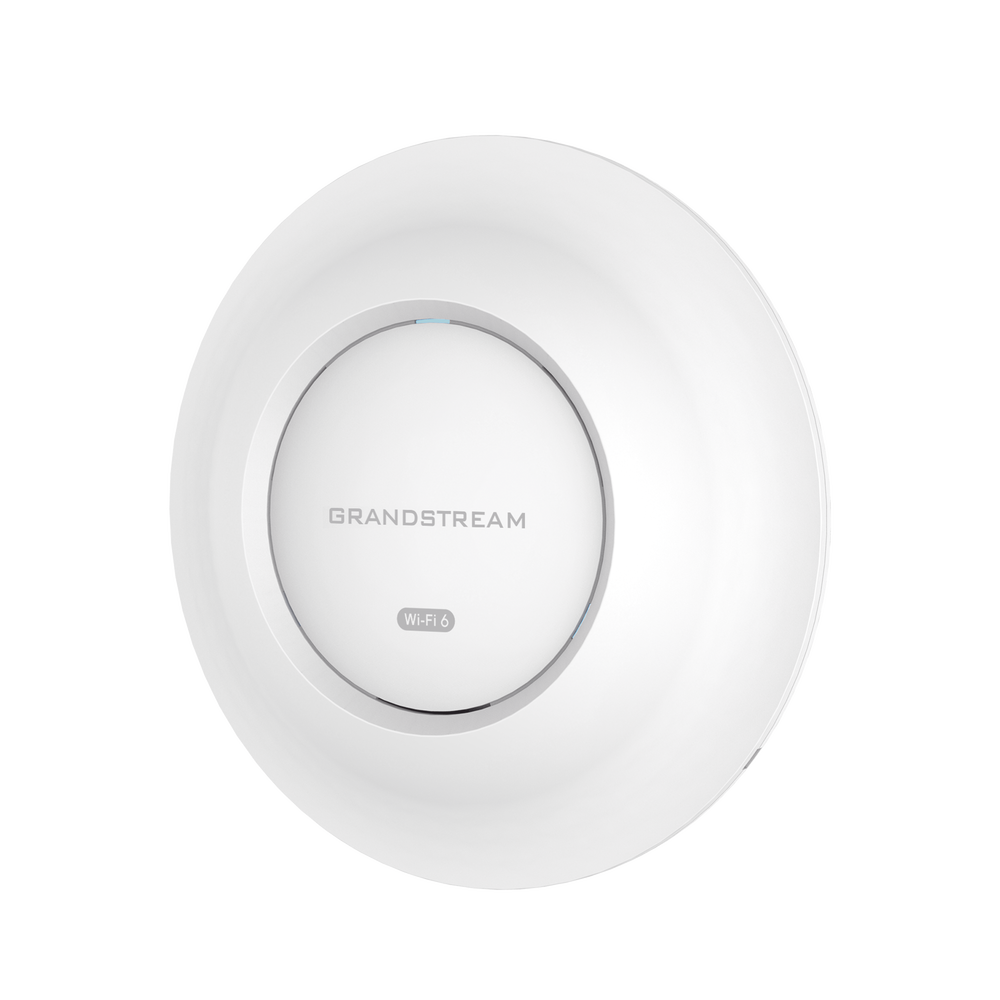

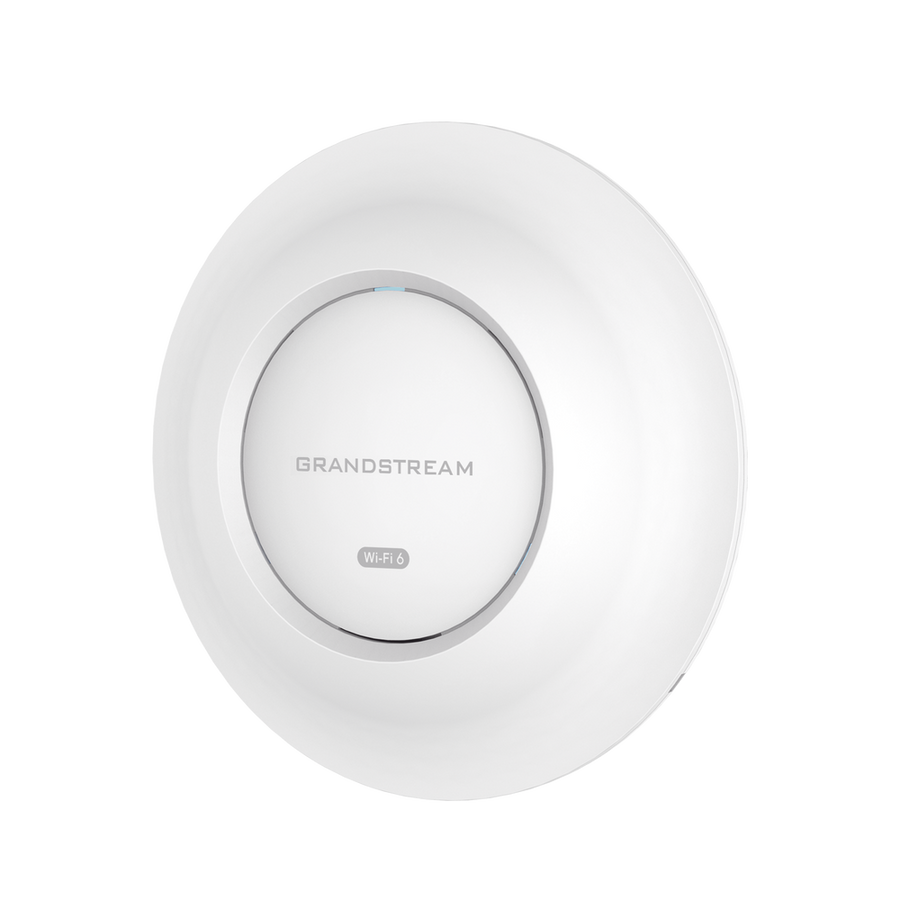

Grandstream GWN7662 Wi-Fi 6 Access Point / 5.38 Gbps Wireless Throughput / MU-MIMO 4x4 (5GHz) and 2x2 (2.4GHz) / PoE/PoE+ / Coverage 175 Meters / Embedded Controller / Advanced Security / Managed by GWN.Cloud / 256 Concurrent Clients

GRANDSTREAM

Grandstream GWN7662 802.11ax Wi-Fi 6 Access Point 5.38Gbps MU-MIMO PoE+

Product identifier
SKU GWN7662
$94.95
Available to order

Lead time confirmed after order.

Request a quote Need help confirming fit? Talk to a specialist →
  • Product availability confirmed before fulfillment.
  • Support in English, Spanish and Portuguese.
  • 30-day returns and RMA support.

Product details

Grandstream GWN7662

High-Performance Enterprise Wi-Fi 6 Access Point

The GWN7662 is an enterprise-grade 802.11ax Wi-Fi 6 access point ideal for small and medium-sized businesses and home offices. Designed for high-density device environments, it offers MU-MIMO technology to maximize network performance, ensure consistent high-speed connections, and extend wireless coverage area efficiently.

⚙️ Main Features

Throughput & Coverage

  • Wireless Data Rates: Incredible performance up to 5.38 Gbps wireless throughput.
  • Wired Connectivity: Generous 3.5 Gigabit wired ports total capacity.
  • Client Support: Built for high density, supporting up to 256 concurrent Wi-Fi clients.
  • Extended Reach: Expansive wireless coverage up to 575 feet (175 meters).
  • Antenna Design: Sophisticated engineering for maximum throughput and cell range.

Management, Security & QoS

  • Local Management: Embedded controller capable of managing up to 50 local GWN series APs.
  • Cloud & On-Premises: Seamless handling via GWN.Cloud and GWN Manager.
  • Advanced QoS: Intelligent prioritization to ensure real-time performance of low-latency applications.
  • Enterprise Security: Anti-hacking secure boot protection and critical data lockdown.
  • Power Adaptation: Automatic power matching based on PoE or PoE+ network detection.

Technical Specifications

Radio Specifications

  • Wi-Fi Standards: IEEE 802.11 a/b/g/n/ac(Wave-2)/ax.
  • Antennas: 6 internal antennas; 2.4GHz at 3.65dBi and 5GHz at 5.26dBi.
  • Frequencies: 2.4GHz (2412 - 2484 MHz) and 5GHz (5180 - 5825 MHz).
  • Max TX Power: 2.4G at 25dBm, 5G at 27dBm.
  • SSID Capacity: 32 total SSIDs, 16 per radio band.

Interfaces & Connectivity

  • Network Ports: 1x autosensing 10/100/1000 Base-T, 1x autosensing Multi-Gig 10/100/1000/2500 Base-T.
  • Aux Ports: 1x hardware reset button, 1x Kensington security lock slot.
  • Power Input: Supports PoE/PoE+ (with a maximum power consumption of 16W).
  • Deployment: Wall and ceiling mounting options (installation kits included).

Applications & Use Cases

Ideal for deployments in small offices, retail stores, restaurants, and educational facilities—where robust, high-capacity Wi-Fi is essential for multiple concurrent users and devices.

Perfect for native integration with Grandstream Wi-Fi-enabled IP phones to facilitate crisp Voice-over-Wi-Fi (VoWiFi) workplace setups.

Seamless combination with cloud-based infrastructure management software for unprecedented control and active network monitoring visibility.

Grandstream Networks - Next-Generation Wireless Infrastructure Solutions

Key Features

  • Wi-Fi 6 802.11ax Technology With up to 5.38 Gbps Performance
  • MU-MIMO 4x4:4 on 5 GHz and 2x2:2 on 2.4 GHz Bands
  • Supports up to 256 Simultaneous Devices With Advanced QoS
  • Dual Gigabit Ethernet Ports With Auto-Detection PoE/PoE+ Support
  • Integrated Web Management and Free GWN.Cloud Platform
  • Ideal for Small to Medium Businesses and High-Density Environments
