GRANDSTREAM

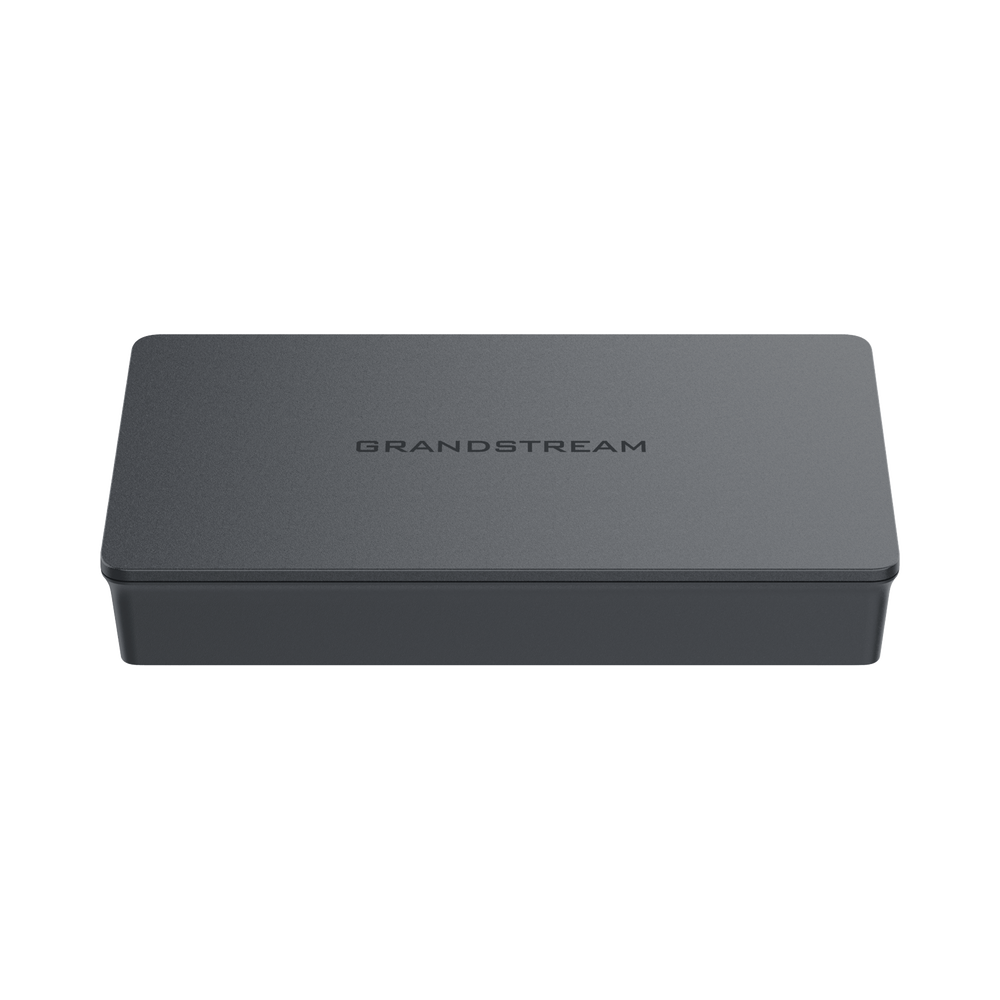

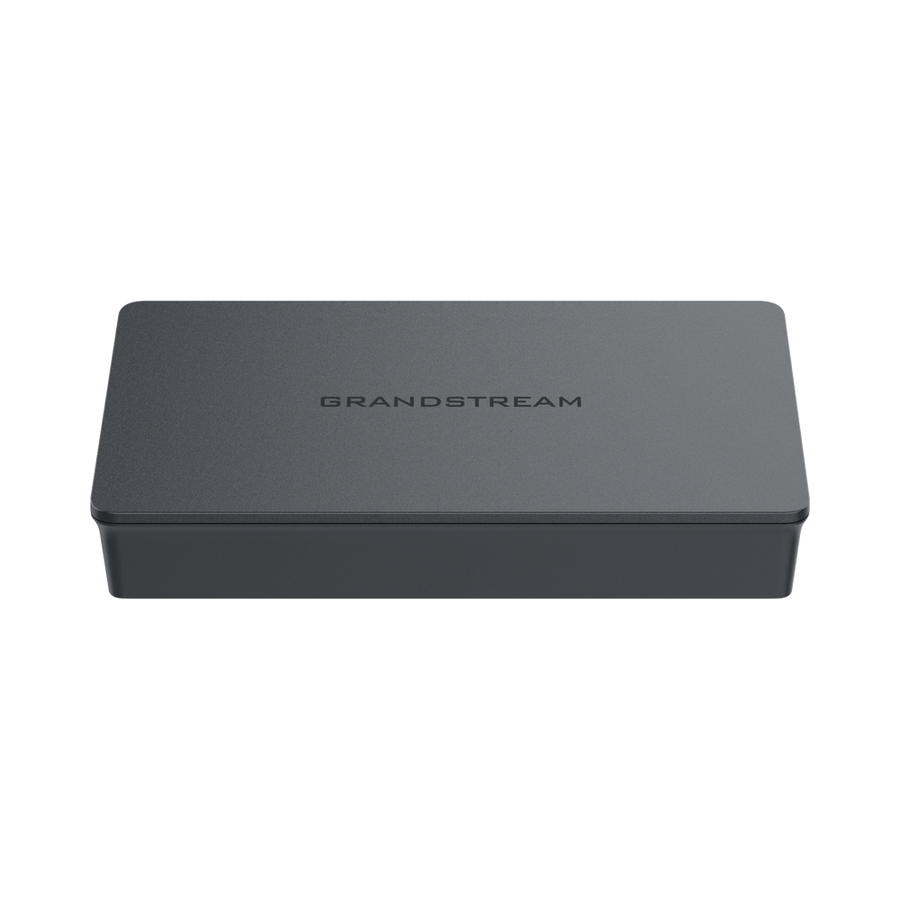

Grandstream GWN7700 Unmanaged Gigabit Switch / 5 Ports 10/100/1000 Mbps
Product identifier
SKU
GWN7700
$19.99
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
Unmanaged Network Switches GWN7700 Series
- 5 Gigabit Ethernet ports
- Green technology reduces energy consumption
- LED indicators; Per port: Link/Activity/Speed Per device: Power
- Auto MDI/MDIX Crossover for all ports
- Broadcast/Multicast/Unicast Storm Control (fixed at 100Mbps) to monitor traffic levels
- QoS - Allows strict default priority when present
Key features:
- 5 RJ45 ports of 10/100/1000 Mbps.
- 2K MAC address table
- 10 Gbps switching capacity.
- 9KB jumbo frame.
- Auto MDI/MDIX.
Physical and Electrical Characteristics:
- Unit weight: 0.1KG Package weight: 0.25KG
- Unit dimensions:120 x 65 x 24.5mm Package: 223 x 90.5 x 54mm
- Operating temperature: 0–40 ℃.
- Storage temperature: -10–70 ℃.
- External power supply 5V/0.6A (included power supply).
Content:
- GWN7700 switch.
- Power adapter.
- Installation guide.
Key Features
- 5 RJ45 Ports With 10/100/1000 Mbps Auto-Negotiation
- 10 Gbps Total Switching Capacity for High Performance
- Green Ethernet Technology Reduces Power Consumption
- Jumbo Frame Support up to 9 KB for Efficient Data Transfer
- Auto MDI/MDIX Crossover on All Ports for Easy Installation
- LED Indicators for Link, Activity, Speed, and Power Status
