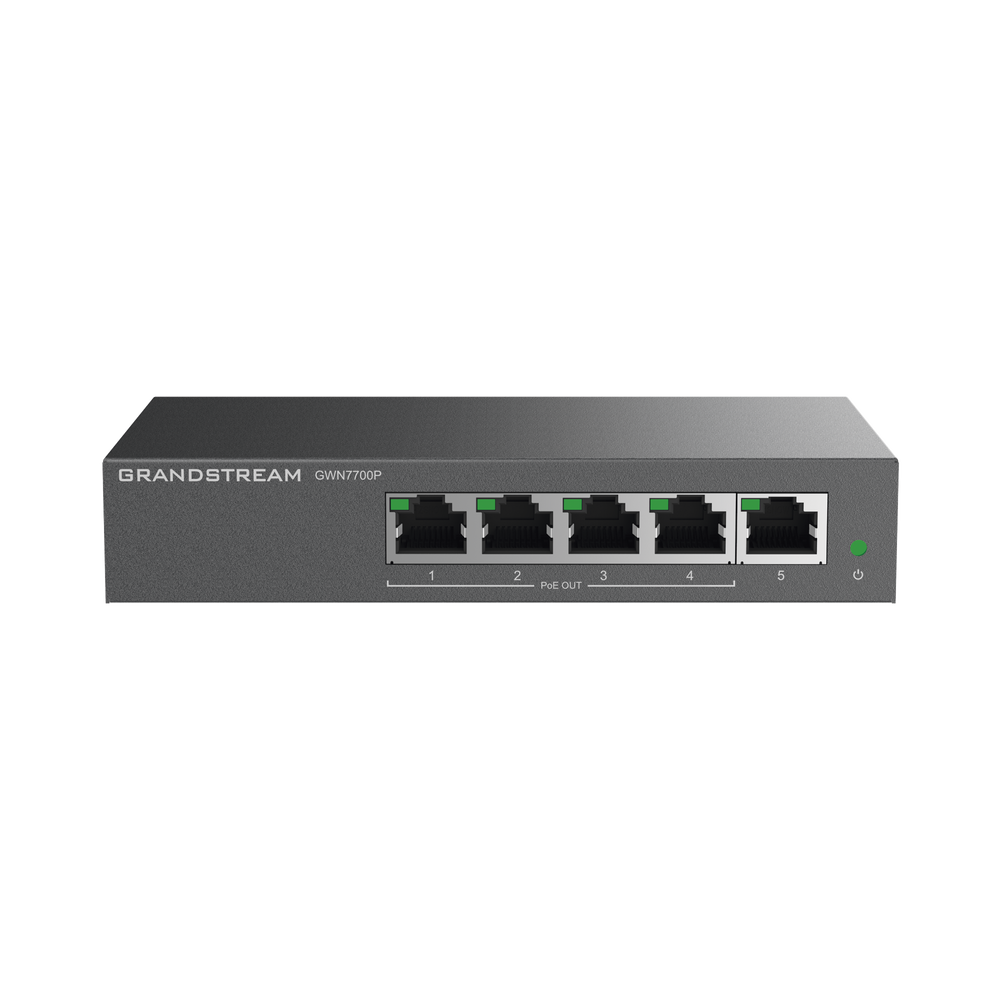

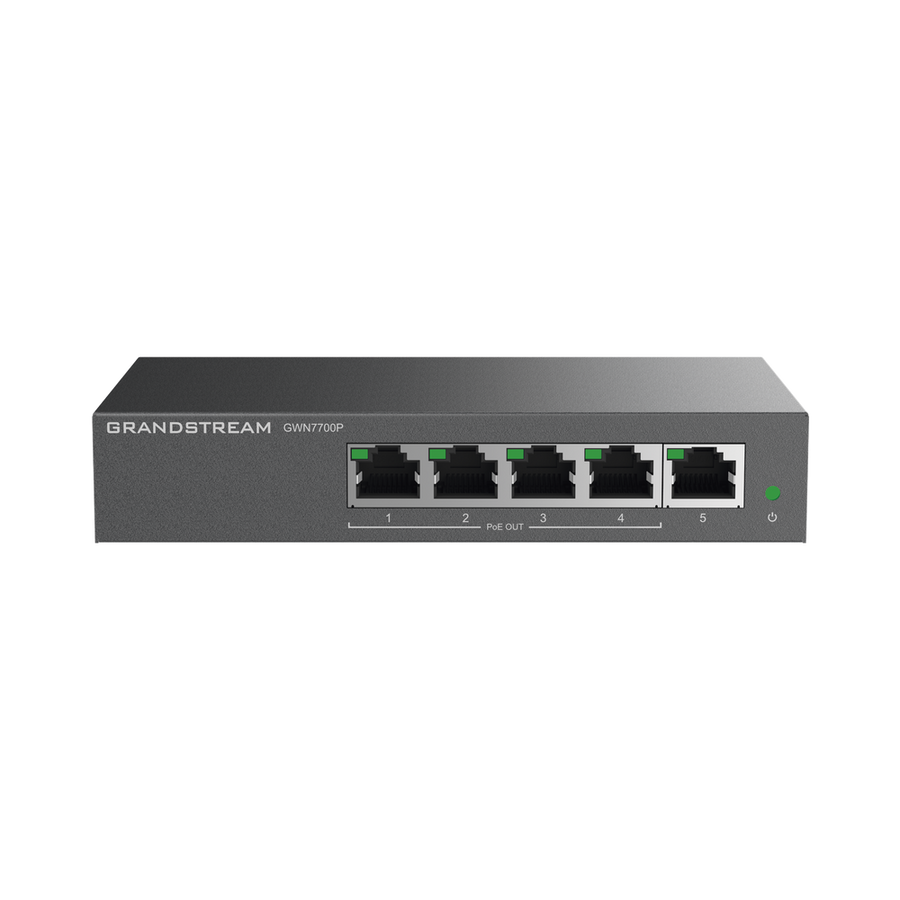

Grandstream GWN7700P 5-Port Gigabit PoE+ Switch 802.3af/at 10Gbps
Product identifier
SKU
GWN7700P
$41.32
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
Unmanaged Network Switches GWN7700 Series
- 5 Gigabit Ethernet ports.
- 4 PoE+ ports
- Green technology reduces power consumption
- LED indicators; Per port: Link/Activity/ Speed for device: power
- Auto MDI/MDIX Crossover for all ports
- Broadcast/Multicast/ Unicast Storm Control (fixed to 100Mbps) to monitor the traffic levels
- QoS – supports default strict priority when present
- Complies with 802.3 af/ at up to 30 W in each port
Main features:
- 5 ports RJ45 de 10/100/1000 Mbps.
- 4 ports PoE af/at
- MAC address table MAC 2K
- Switching capacity 10 Gbps.
- Jumbo Frame 9KB
- AUTO MDI/MDIX
- Metal enclosure
- Complies with 802.3 af/ at up to 30 W in each port
Physical and Electrical Characteristics:
- Unit weight: 0.26KG Packing: 0.75KG
- Unit dimensions: 145 x 80 x 27mm Packing: 230 x 190 x 51mm
- Operating temperature: 0–40 ℃.
- Storage temperature: -10–70 ℃.
- External power supply 48V-53.5V/1.22A (Includes power supply).
Content:
- Switch GWN7700P
- Current Adapter
- Installation guide.
Key Features
- 10 Gbps Switching Capacity for High-Speed Data Transfer
- Green Technology Reduces Power Consumption Efficiently
- QoS Support for Traffic Priority and Bandwidth Management
- Compact Metal Housing for Durable and Reliable Operation
- IEEE 802.3af/at Compliant with Auto MDI/MDIX Crossover
- LED Indicators for Port Status and Activity Monitoring
