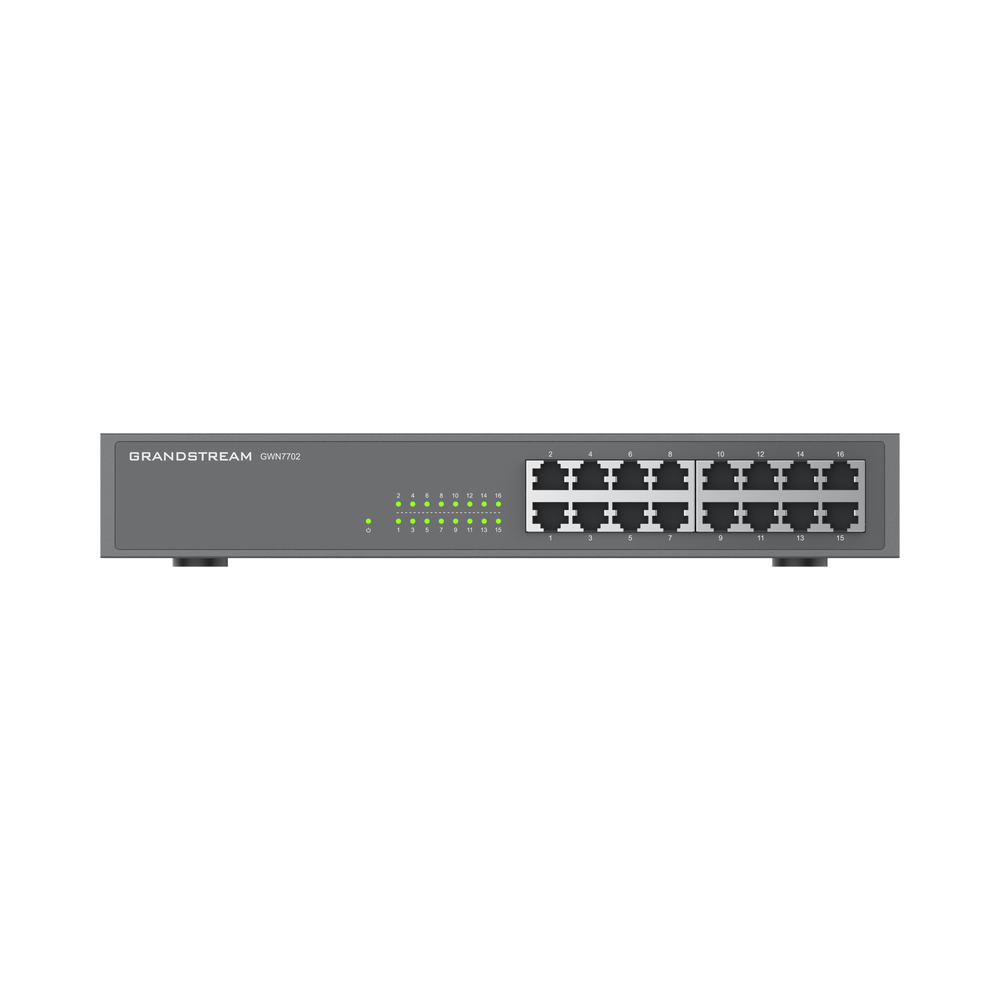

Grandstream GWN7702 Unmanaged Gigabit Switch / 16 Ports 10/100/1000 Mbps
Product identifier
SKU
GWN7702
$70.65
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
Unmanaged Network Switches GWN7702 Series
- 16 Gigabit Ethernet ports
- Green technology reduces energy consumption
- LED indicators; Per port: Link/Activity/Speed Per device: Power
- Auto MDI/MDIX Crossover for all ports
- Broadcast/Multicast/Unicast Storm Control (fixed at 100Mbps) to monitor traffic levels
- QoS - Allows strict default priority when present
Key features:
- 16 RJ45 ports of 10/100/1000 Mbps.
- 8K MAC address table
- 38 Gbps switching capacity.
- 10KB jumbo frame.
- Auto MDI/MDIX.
Physical and Electrical Characteristics:
- Unit weight: 1.23KG Package weight: 1.83KG
- Unit dimensions: 280 x 180 x 44 mm / 11.02 x 7.09 x 1.73 in
- Operating temperature: 0–40 ℃.
- Storage temperature: -10–70 ℃.
- External power supply 5V/0.6A (included power supply).
Content:
- GWN7702 switch.
- Power adapter.
- Installation guide.
Key Features
- 16 Gigabit Ethernet Ports With Auto MDI/MDIX Support
- Green Technology Reduces Power Consumption by 30%
- 10 Gbps Non-Blocking Switching Capacity for High Performance
- 2K MAC Address Table With Automatic Learning and Aging
- 9 KB Jumbo Frame Support for Improved Network Efficiency
- Compact Desktop Design Measures 4.7 x 2.6 x 1.0 Inches
