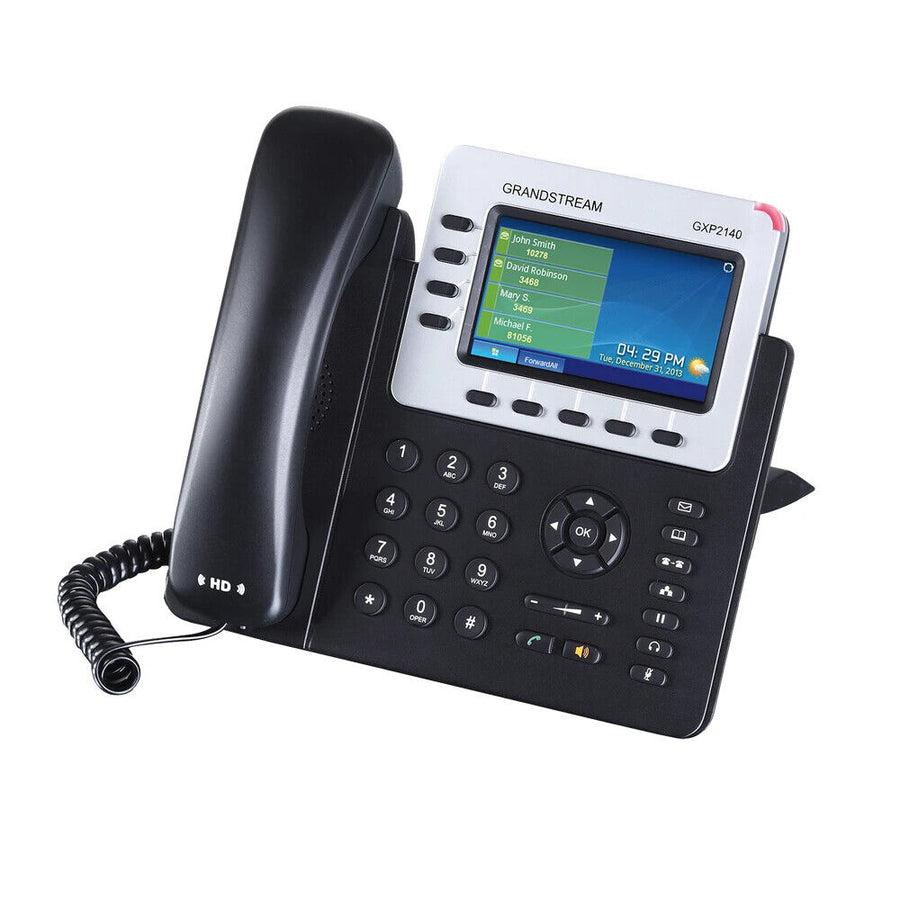

A versatile Enterprise IP phone, the GXP2140 supports 4 lines, includes Gigabit ports, and is compatible with Grandstream’s GXP2200 LCD extension module (GXP2200 EXT) making it ideal for receptionists and users who handle high call volumes. The GXP2140 includes HD audio, a 4.3-inch color screen, 5-way voice conferencing, and built-in Bluetooth support allowing for use of Bluetooth headsets and transferring of phonebook and calls from paired mobile devices, the GXP2140 is perfect for Enterprise & SMB customers with the need for quality and versatility in their desktop communications.
PROTOCOLS/STANDARDS
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE,TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP, IPv6
NETWORK INTERFACES
Dual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with integrated PoE
GRAPHIC DISPLAY
4.3 inch (480x272) TFT color LCD
BLUETOOTH Yes, Bluetooth V2.1
FEATURE KEYS
4 line keys with up to 4 SIP accounts, 5 programmable context-sensitive softkeys, 5 navigation/menu keys, 11 dedicated function keys for MESSAGE (with LED indicator), PHONEBOOK, TRANSFER, CONFERENCE, HOLD, HEADSET, MUTE, SEND/ REDIAL, SPEAKERPHONE, VOL+, VOL
VOICE CODECS
Support for G.729A/B, G.711µ/a-law, G.726, G.722 (wide-band), and iLBC,in-band and out-of-band DTMF (in audio, RFC2833, SIP INFO)
AUXILIARY PORTS
RJ9 headset jack (allowing EHS with Plantronics headsets), USB, extension module port
TELEPHONY FEATURES
Hold, transfer, forward, 5-way conference, call park, call pickup, shared-call-appearance (SCA)/bridged-line-appearance (BLA), downloadable phonebook (XML, LDAP, up to 2000 items), call waiting, call log (up to 500 records), customization of the screen, off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot desking, personalized music ringtones and music on hold, server redundancy and fail-over
SAMPLE APPLICATIONS
Weather, currency, news, XML
HD AUDIO
Yes, both on handset and speakerphone
EXTENSION MODULE
Yes, can power up to 4 GXP2200EXT modules which features a 128x384 graphic LCD, 20 quick-dial/BLF keys which dual-color LED, 2 navigation keys, and less than 1.2W power consumption per unit.
BASE STAND/WALL MOUNTABLE
Yes, allow 2 angle positions
QoS Layer 2 (808.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS
SECURITY
User and administrator level passwords, MD5 and MD5-sess based authentication, AES based secure configuration file, SRTP, TLS, 802.1x media access control
MULTI-LANGUAGE
English, Arabic, Chinese, Croatian, Czech, Dutch, German, French, Hebrew, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Slovenia, Spanish, Turkish
UPGRADE/PROVISIONING
Firmware upgrade via TFTP/HTTP/HTTPS, mass provisioning using TR-069 or encrypted XML configuration file
POWER & GREEN ENERGY EFFICIENCY
Universal power adapter included: Input: 100-240V; Output: +12V, 1.0A; Integrated Power-over-Ethernet (802.3af) Max power consumption: 6W (without GXP2200EXT), 10W(with 4 cascaded GXP2200EXTs )
PHYSICAL
- Dimensions: 8.97" x 8.11" x 1.83" (228mm x 206mm x 46.5mm) LWH
- Unit weight: 2.16 lbs (0.98kg)
- Package weight: 3.41 lbs (1.55kg)
- Temperature and Humidity 32 ~ 104ºF ( 0 ~ 40ºC), 10 ~ 90% (non-condensing)
PACKAGE CONTENT
GXP2140 phone, handset with cord, base stand, universal power supply, network cable, Quick Start Guide COMPLIANCE
FCC Part 15 (CFR 47) Class B; EN55022 Class B, EN55024, EN61000-3-2, EN61000-3- 3, EN 60950-1, EN62479 AS/NZS CISPR 22 Class B, AS/NZS CISPR 24, RoHS; UL 60950 (power adapter)
