HALNy HL-1B-US GPON ONU 2.5GbE Router Bridge SC/APC

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐈𝐓𝐋𝐄
HALNy HL-1B-US GPON ONU 2.5GbE Router Bridge SC/APC

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐎𝐕𝐄𝐑𝐕𝐈𝐄𝐖

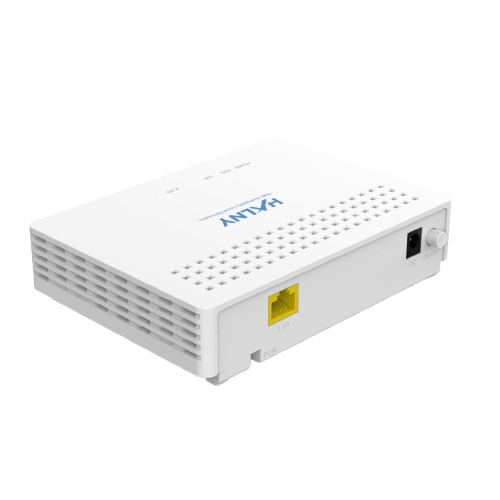

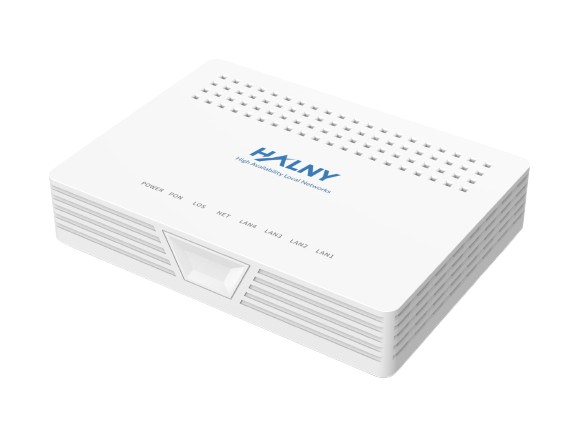

The HALNy HL-1B is a powerful GPON Home Gateway Unit (HGU) designed to deliver high-speed broadband services through fiber-to-the-home (FTTH) networks. Supporting up to 2.5 Gbps downstream and 1.25 Gbps upstream speeds, it integrates Layer 3 routing, NAT, and advanced Layer 2 VLAN features, making it ideal for both business and residential deployments. With its interoperability across leading OLT vendors, the HL-1B ensures a seamless and cost-effective solution for service providers.

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐘𝐏𝐄 / 𝐂𝐀𝐓𝐄𝐆𝐎𝐑𝐘
Networking
Fiber

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐊𝐄𝐘 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒
• High-Speed Connectivity: GPON WAN supports up to 2.5 Gbps downstream and 1.25 Gbps upstream.
• The LAN port delivers 2.5Gbps speeds, ensuring reliable and ultra-fast connectivity.
• Flexible Deployment Modes: It operates in both HGU (Router/NAT) and SFU (Bridge) modes for versatile applications.
• Advanced Networking: Layer 3 capabilities include NAT, DHCP, PPPoE, IGMP Proxy, and VPN pass-through.
• Layer 2 features include VLAN tagging (802.1q) and multicast snooping.
• Interoperability: Proven compatibility with major GPON OLT vendors, including Nokia, Huawei, ZTE, and Calix.
• Energy Efficient: Power consumption is below 10W for eco-friendly operations.
• User-Friendly Provisioning: Supports TR-069, DHCP XML, and OMCI for simplified service rollouts and management.
• Residential Broadband: High-speed internet access for homes.
• Business Connectivity: Secure and scalable connectivity for small to medium enterprises.
• Service Providers: Seamless deployment on FTTH networks with multivendor compatibility.
• Hardware: WAN Port: GPON B+ (SC/APC type) Downstream: 2.488 Gbps
• Upstream: 1.244 Gbps

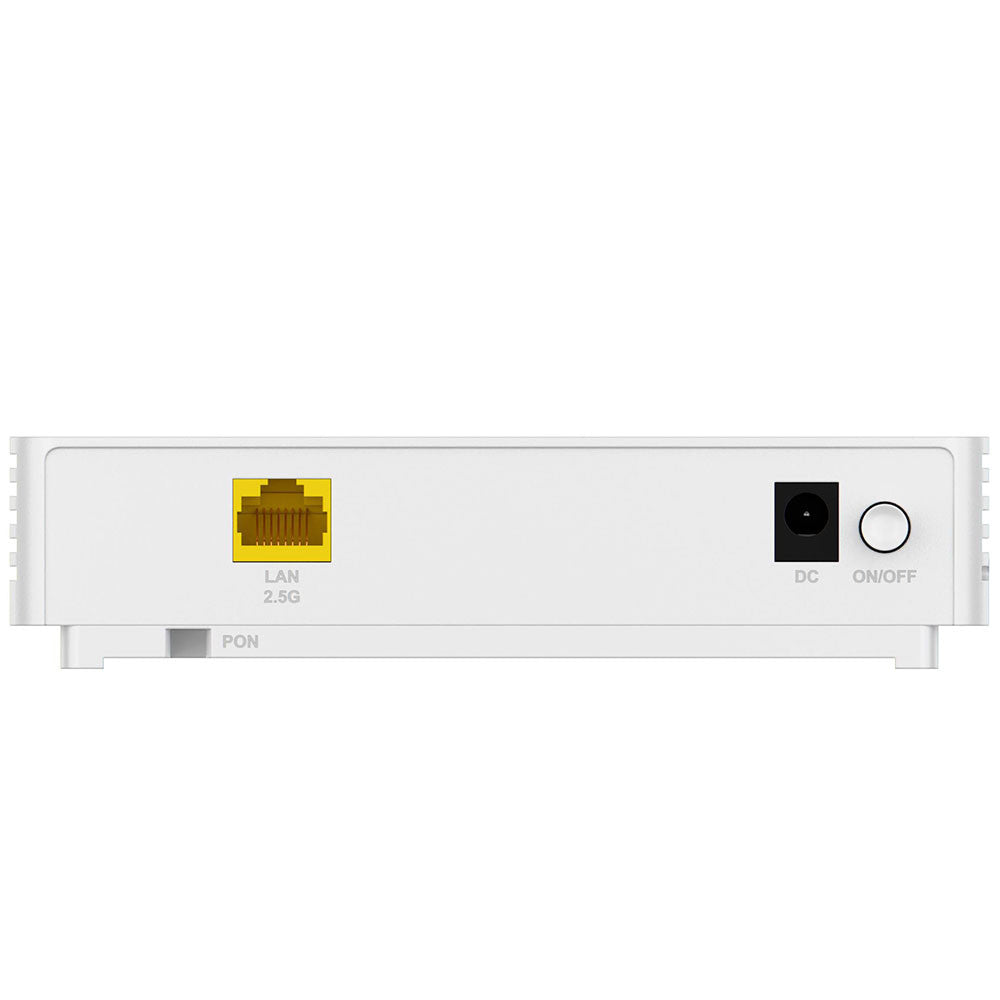

• LAN Port: 1 x 2.5GbE (RJ45) with auto-sensing and MDI/MDI-X
• Power Supply: 12V DC, 1A
• Power Consumption: <10W
• Operating Temperature: 0 to 40°C (32 to 104°F)
• Dimensions: 110 x 105 x 32 mm

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐓𝐄𝐂𝐇𝐍𝐈𝐂𝐀𝐋 𝐒𝐏𝐄𝐂𝐈𝐅𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Brand: HALNy
• Model: HL-1B-US
• Product Type: Fiber
• High-Speed Connectivity: GPON WAN supports up to 2.5 Gbps downstream and 1.25 Gbps upstream.
• The LAN port delivers 2.5Gbps speeds, ensuring reliable and ultra-fast connectivity.
• Flexible Deployment Modes: It operates in both HGU (Router/NAT) and SFU (Bridge) modes for versatile applications.
• Advanced Networking: Layer 3 capabilities include NAT, DHCP, PPPoE, IGMP Proxy, and VPN pass-through.
• Layer 2 features include VLAN tagging (802.1q) and multicast snooping.
• Interoperability: Proven compatibility with major GPON OLT vendors, including Nokia, Huawei, ZTE, and Calix.
• Energy Efficient: Power consumption is below 10W for eco-friendly operations.
• User-Friendly Provisioning: Supports TR-069, DHCP XML, and OMCI for simplified service rollouts and management.
• Residential Broadband: High-speed internet access for homes.
• Business Connectivity: Secure and scalable connectivity for small to medium enterprises.
• Service Providers: Seamless deployment on FTTH networks with multivendor compatibility.
• Hardware: WAN Port: GPON B+ (SC/APC type) Downstream: 2.488 Gbps
• Upstream: 1.244 Gbps
• LAN Port: 1 x 2.5GbE (RJ45) with auto-sensing and MDI/MDI-X
• Power Supply: 12V DC, 1A
• Power Consumption: <10W
• Operating Temperature: 0 to 40°C (32 to 104°F)
• Dimensions: 110 x 105 x 32 mm
• Software: Routing/Bridging: PPPoE, DHCP Server/Client/Relay, NAT, PAT, IGMP Proxy
• Telephony: SIP protocol with DTMF and dial plan support
• Security: Firewall, VPN Pass-through
• Management: Web interface, TR-069, OMCI
• Standards Compliance: GPON: ITU-T G.984.x and G.988
• Encryption: AES support and Forward Error Correction (FEC)
• Interoperability: Compatible with Nokia, Huawei, ZTE, Calix, DASAN, and other major OLT vendors.

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐈𝐍𝐓𝐄𝐍𝐃𝐄𝐃 𝐔𝐒𝐄 / 𝐀𝐏𝐏𝐋𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
