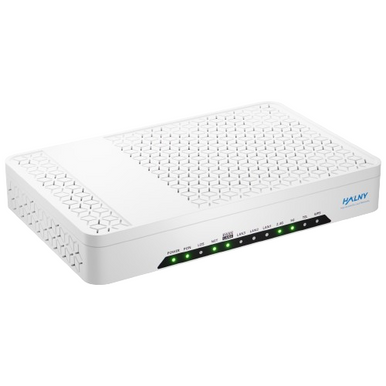

HALNy HL-4BX3V-F-US GPON ONU WiFi 6 AX3000 2.5G Fiber Optic Gateway

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐈𝐓𝐋𝐄
HALNy HL-4BX3V-F-US GPON ONU WiFi 6 AX3000 2.5G Fiber Optic Gateway

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐎𝐕𝐄𝐑𝐕𝐈𝐄𝐖
HALNy HL-4BX3V-F - GPON ONU with 2.5 Gigabit LAN, WiFi 6 AX3000, and VoIP Support

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐘𝐏𝐄 / 𝐂𝐀𝐓𝐄𝐆𝐎𝐑𝐘
Networking
Fiber

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐊𝐄𝐘 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒
• GPON Compliant : Supports ITU-T G.984.x and G.988 standards for gigabit passive optical networks.
• WiFi 6 AX3000 : Dual-band (2.4 GHz and 5 GHz) MU-MIMO technology with internal antennas for high-speed, interference-free wireless connectivity.
• LAN Ports : 1x 2.5 Gigabit Ethernet port for ultra-fast wired connections.
• 3x Gigabit Ethernet ports for flexible device connectivity.
• VoIP Support : Integrated FXS port for reliable voice services.
• Flexible Design : Layer 2 and Layer 3 support with advanced routing features like NAT, PPPoE, and VLAN.
• Interoperability : Tested with major GPON OLT vendors such as Nokia, Huawei, and ZTE.
• EasyMesh Ready : Seamless network expansion with EasyMesh support.
• Compact Design : Dimensions of 225 x 142 x 46 mm, suitable for a variety of installations.
• FTTH deployments for residential and business users.
• Ideal for high-speed internet, IPTV streaming, and VoIP services.
• Suitable for service providers requiring a scalable, cost-effective GPON solution.
• Hardware Specifications WAN Port : GPON SC/APC, 2.488 Gbps downstream, 1.244 Gbps upstream.
• LAN Ports : 1x 2.5G Ethernet (RJ45), auto-sensing.
• 3x 10/100/1000 Mbps Ethernet (RJ45), auto-sensing, auto MDI/MDI-X.
• Wireless : Dual-band AX3000 (2.4 GHz & 5 GHz), MU-MIMO, internal antennas.
• VoIP : 1 FXS RJ11 port.
• LED Indicators : Power, PON, LOS, Internet, LAN (1-4), TEL, WiFi (2.4 GHz, 5 GHz), WPS.

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐓𝐄𝐂𝐇𝐍𝐈𝐂𝐀𝐋 𝐒𝐏𝐄𝐂𝐈𝐅𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Brand: HALNy
• Model: HL-4BX3V-F-US
• Product Type: Fiber
• GPON Compliant : Supports ITU-T G.984.x and G.988 standards for gigabit passive optical networks.
• WiFi 6 AX3000 : Dual-band (2.4 GHz and 5 GHz) MU-MIMO technology with internal antennas for high-speed, interference-free wireless connectivity.
• LAN Ports : 1x 2.5 Gigabit Ethernet port for ultra-fast wired connections.
• 3x Gigabit Ethernet ports for flexible device connectivity.
• VoIP Support : Integrated FXS port for reliable voice services.
• Flexible Design : Layer 2 and Layer 3 support with advanced routing features like NAT, PPPoE, and VLAN.
• Interoperability : Tested with major GPON OLT vendors such as Nokia, Huawei, and ZTE.
• EasyMesh Ready : Seamless network expansion with EasyMesh support.
• Compact Design : Dimensions of 225 x 142 x 46 mm, suitable for a variety of installations.
• FTTH deployments for residential and business users.
• Ideal for high-speed internet, IPTV streaming, and VoIP services.
• Suitable for service providers requiring a scalable, cost-effective GPON solution.
• Hardware Specifications WAN Port : GPON SC/APC, 2.488 Gbps downstream, 1.244 Gbps upstream.
• LAN Ports : 1x 2.5G Ethernet (RJ45), auto-sensing.
• 3x 10/100/1000 Mbps Ethernet (RJ45), auto-sensing, auto MDI/MDI-X.
• Wireless : Dual-band AX3000 (2.4 GHz & 5 GHz), MU-MIMO, internal antennas.
• VoIP : 1 FXS RJ11 port.
• LED Indicators : Power, PON, LOS, Internet, LAN (1-4), TEL, WiFi (2.4 GHz, 5 GHz), WPS.
• Buttons : On/Off, Reset, WPS, WLAN.
• Dimensions : 225 x 142 x 46 mm.
• Operating Temperature : 0°C to 45°C.
• Power Supply : 12V/1.5A DC.
• Software Specifications Routing : NAT, PAT, DHCP (Server/Client/Relay), IGMP Proxy, VLAN (802.1Q), Port Forwarding, UPnP.
• Wireless : EasyMesh Controller and Agent, WPA/WPA2 security, multiple SSIDs.
• Management : Web UI, TR-069, SNMP, OMCI, RestAPI/JSON.
• Provisioning : Supports PPPoE login, IPTV configuration, and DOCSIS-like provisioning.

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐈𝐍𝐓𝐄𝐍𝐃𝐄𝐃 𝐔𝐒𝐄 / 𝐀𝐏𝐏𝐋𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
