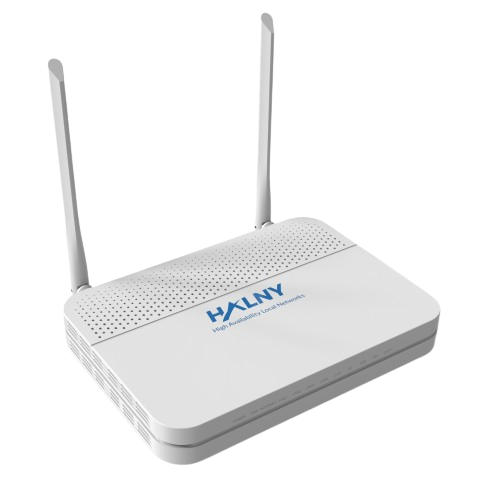

HALNy HL-4GMVR-US GPON ONU 4-Port Gigabit WiFi VoIP CATV

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐈𝐓𝐋𝐄
HALNy HL-4GMVR-US GPON ONU 4-Port Gigabit WiFi VoIP CATV

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐎𝐕𝐄𝐑𝐕𝐈𝐄𝐖
HALNy HL-4GMVR - GPON ONU with 4x Gigabit LAN Ports, WiFi Dual-Band, VoIP, and CATV Support

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐘𝐏𝐄 / 𝐂𝐀𝐓𝐄𝐆𝐎𝐑𝐘
Networking
Fiber

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐊𝐄𝐘 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒
• GPON Compliant : Adheres to ITU-T G.984.x and G.988 standards for gigabit passive optical networks.
• High-Speed Connectivity : 4x Gigabit Ethernet ports for reliable wired connections.
• WiFi dual-band (2x2 MU-MIMO on 5 GHz and 2.4 GHz) with external 5 dBi antennas for enhanced wireless performance.
• VoIP Capability : Integrated FXS port for voice services with advanced telephony features (SIP, DTMF support).
• CATV Support : RF port for seamless cable TV integration with 1550 nm wavelength compatibility.
• Flexible Networking : Layer 2 and Layer 3 support, including NAT, DHCP, VLAN, IGMP, and advanced QoS for efficient traffic management.
• Interoperability : Tested compatibility with major OLT vendors like Nokia, Huawei, and ZTE.
• Compact Design : Dimensions of 210 x 150 x 36 mm, ideal for various installations.
• FTTH networks delivering triple-play services.
• Residential and business environments requiring high-speed internet, IPTV, and VoIP.
• Scenarios demanding integrated CATV/DVB overlay functionality.
• Hardware Specifications Memory : 256 MB Flash, 256 MB RAM.
• WAN Port : GPON SC/APC, 2.488 Gbps downstream, 1.244 Gbps upstream.

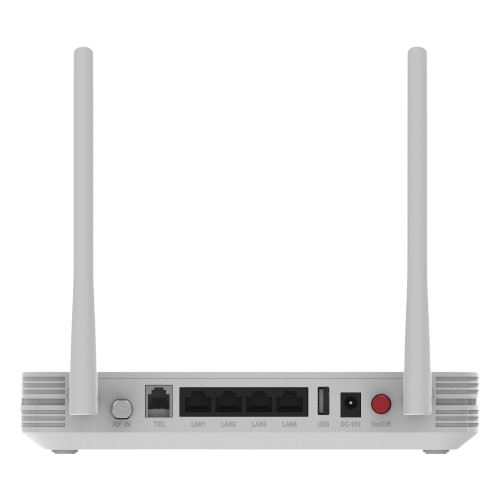

• LAN Ports : 4x 10/100/1000 Mbps Ethernet (RJ45), auto-sensing, auto MDI/MDI-X.
• Wireless : 2x2 802.11ac (5 GHz) and 2x2 802.11n (2.4 GHz).
• External dual-band antennas with 5 dBi gain.
• VoIP : 1 FXS RJ11 port.
• CATV : RF wavelength: 1550 nm (~ ±10 nm).

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐓𝐄𝐂𝐇𝐍𝐈𝐂𝐀𝐋 𝐒𝐏𝐄𝐂𝐈𝐅𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Brand: HALNy
• Model: HL-4GMVR-US
• Product Type: Fiber
• GPON Compliant : Adheres to ITU-T G.984.x and G.988 standards for gigabit passive optical networks.
• High-Speed Connectivity : 4x Gigabit Ethernet ports for reliable wired connections.
• WiFi dual-band (2x2 MU-MIMO on 5 GHz and 2.4 GHz) with external 5 dBi antennas for enhanced wireless performance.
• VoIP Capability : Integrated FXS port for voice services with advanced telephony features (SIP, DTMF support).
• CATV Support : RF port for seamless cable TV integration with 1550 nm wavelength compatibility.
• Flexible Networking : Layer 2 and Layer 3 support, including NAT, DHCP, VLAN, IGMP, and advanced QoS for efficient traffic management.
• Interoperability : Tested compatibility with major OLT vendors like Nokia, Huawei, and ZTE.
• Compact Design : Dimensions of 210 x 150 x 36 mm, ideal for various installations.
• FTTH networks delivering triple-play services.
• Residential and business environments requiring high-speed internet, IPTV, and VoIP.
• Scenarios demanding integrated CATV/DVB overlay functionality.
• Hardware Specifications Memory : 256 MB Flash, 256 MB RAM.
• WAN Port : GPON SC/APC, 2.488 Gbps downstream, 1.244 Gbps upstream.
• LAN Ports : 4x 10/100/1000 Mbps Ethernet (RJ45), auto-sensing, auto MDI/MDI-X.
• Wireless : 2x2 802.11ac (5 GHz) and 2x2 802.11n (2.4 GHz).
• External dual-band antennas with 5 dBi gain.
• VoIP : 1 FXS RJ11 port.
• CATV : RF wavelength: 1550 nm (~ ±10 nm).
• RF input power: 2 to -15 dBm.
• RF output frequency: 45 MHz to 1002 MHz.
• LED Indicators : Power, PON, LOS, Internet, WLAN (2.4 GHz, 5 GHz), LAN (1-4), TEL, WPS, CATV.
• Buttons : On/Off, Reset, WPS, WLAN.
• Power Supply : 12V/1.5A DC (via external AC/DC adapter).
• Dimensions : 210 x 150 x 36 mm.
• Software Specifications Routing : NAT, DHCP (Server/Client/Relay), PPPoE, VLAN (802.1Q), IGMP Proxy, Port Forwarding, and UPnP.
• Wireless : WPA/WPA2 Personal security, multiple SSIDs, and WPS support.
• Provisioning and Management : TR-069, SNMP, OMCI, and web-based UI.
• VoIP Features : SIP, DTMF, G.711, G.723, G.726, and fax support.

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐈𝐍𝐓𝐄𝐍𝐃𝐄𝐃 𝐔𝐒𝐄 / 𝐀𝐏𝐏𝐋𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
