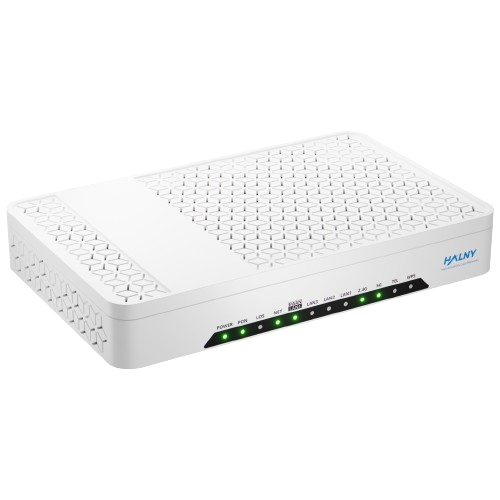

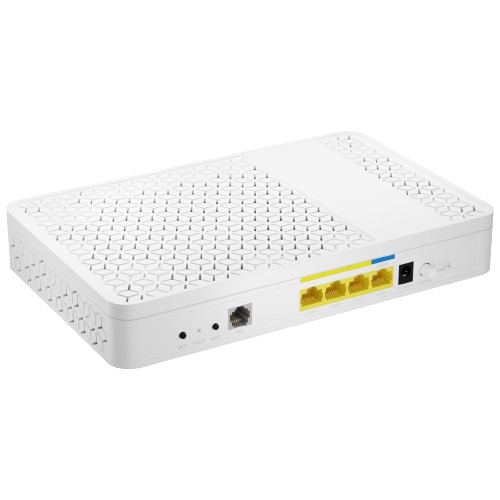

HALNy HL-4GXV-F-US GPON ONU WiFi 6 AX1800 4-Port Gigabit PoE

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐈𝐓𝐋𝐄
HALNy HL-4GXV-F-US GPON ONU WiFi 6 AX1800 4-Port Gigabit PoE

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐎𝐕𝐄𝐑𝐕𝐈𝐄𝐖
HALNy HL-4GXV-F - GPON ONU with Wi-Fi 6 AX1800, VoIP, and 4 Gigabit LAN Ports

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐘𝐏𝐄 / 𝐂𝐀𝐓𝐄𝐆𝐎𝐑𝐘
Networking
Fiber

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐊𝐄𝐘 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒
• GPON Compliant : Adheres to ITU-T G.984.x and G.988 standards for gigabit passive optical networks.
• Wi-Fi 6 AX1800 : Dual-band 2x2 MU-MIMO technology ensures reliable wireless connectivity and improved coverage.
• LAN Ports : 4x Gigabit Ethernet ports for high-speed wired connections.
• VoIP Capability : Integrated FXS port with SIP, DTMF, and advanced telephony features.
• Efficient Design : Compact form factor (240 x 220 x 36 mm) with internal dual-band antennas and mode button for easy operation.
• Interoperability : Proven compatibility with major OLT vendors, including Nokia, Huawei, and ZTE.
• FTTH networks delivering high-speed internet, IPTV, and VoIP services.
• Residential and business environments requiring reliable broadband solutions.
• Service providers looking for cost-effective and scalable GPON ONU solutions.
• Hardware Specifications Memory : 128 MB Flash.
• CPU : Dual-core, 900 MHz.
• WAN Port : GPON SC/APC, 2.488 Gbps downstream, 1.244 Gbps upstream.
• LAN Ports : 4x 10/100/1000 Mbps Ethernet (RJ45), auto-sensing, auto MDI/MDI-X.
• Wireless : WiFi 6 (AX1800) with 2x2 MU-MIMO.
• Dual-band with internal antennas.
• VoIP : 1 FXS RJ11 port with SIP, DTMF, and fax support.
• LED Indicators : Power, PON, LOS, Internet, LAN (1-4), TEL, WiFi (2.4 GHz, 5 GHz), WPS.
• Buttons : On/Off, Reset, WPS, Mode.

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐓𝐄𝐂𝐇𝐍𝐈𝐂𝐀𝐋 𝐒𝐏𝐄𝐂𝐈𝐅𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Brand: HALNy
• Model: HL-4GXV-F-US
• Product Type: Fiber
• GPON Compliant : Adheres to ITU-T G.984.x and G.988 standards for gigabit passive optical networks.
• Wi-Fi 6 AX1800 : Dual-band 2x2 MU-MIMO technology ensures reliable wireless connectivity and improved coverage.
• LAN Ports : 4x Gigabit Ethernet ports for high-speed wired connections.
• VoIP Capability : Integrated FXS port with SIP, DTMF, and advanced telephony features.
• Efficient Design : Compact form factor (240 x 220 x 36 mm) with internal dual-band antennas and mode button for easy operation.
• Interoperability : Proven compatibility with major OLT vendors, including Nokia, Huawei, and ZTE.
• FTTH networks delivering high-speed internet, IPTV, and VoIP services.
• Residential and business environments requiring reliable broadband solutions.
• Service providers looking for cost-effective and scalable GPON ONU solutions.
• Hardware Specifications Memory : 128 MB Flash.
• CPU : Dual-core, 900 MHz.
• WAN Port : GPON SC/APC, 2.488 Gbps downstream, 1.244 Gbps upstream.
• LAN Ports : 4x 10/100/1000 Mbps Ethernet (RJ45), auto-sensing, auto MDI/MDI-X.
• Wireless : WiFi 6 (AX1800) with 2x2 MU-MIMO.
• Dual-band with internal antennas.
• VoIP : 1 FXS RJ11 port with SIP, DTMF, and fax support.
• LED Indicators : Power, PON, LOS, Internet, LAN (1-4), TEL, WiFi (2.4 GHz, 5 GHz), WPS.
• Buttons : On/Off, Reset, WPS, Mode.
• Power Supply : 12V/1.5A DC (via external adapter).
• Dimensions : 240 x 220 x 36 mm.
• Software Specifications Routing/Bridging : NAT, DHCP (Server/Client/Relay), VLAN (802.1Q), IGMP Proxy, and Snooping.
• Wireless : WPA/WPA2 security, multiple SSIDs, WPS support.
• Provisioning and Management : TR-069, SNMP, OMCI, DHCP XML, and web-based UI.
• Telephony : SIP, DTMF, G.711, G.723, G.726.

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐈𝐍𝐓𝐄𝐍𝐃𝐄𝐃 𝐔𝐒𝐄 / 𝐀𝐏𝐏𝐋𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
