HALNy HLX-1TLV XGS-PON ONT 10G Gigabit Ethernet SC/APC VoIP

PRODUCT TITLE

HALNy HLX-1TLV XGS-PON ONT 10G Gigabit Ethernet SC/APC VoIP

PRODUCT OVERVIEW

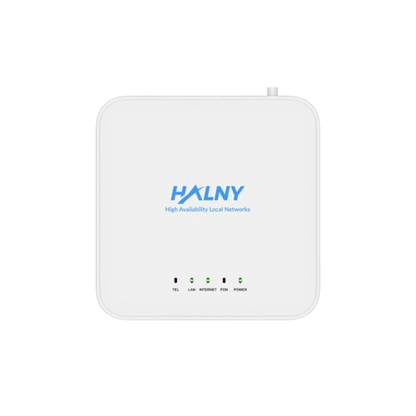

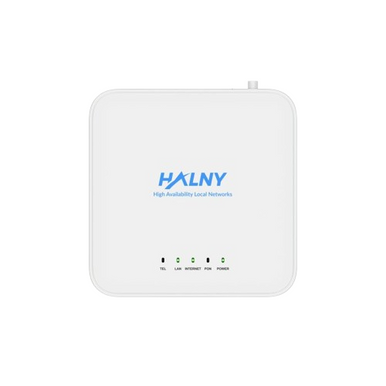

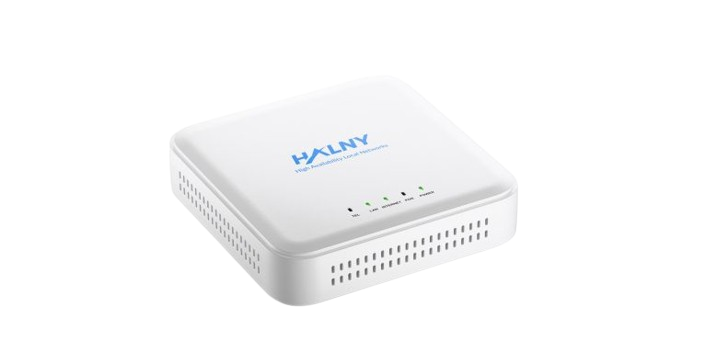

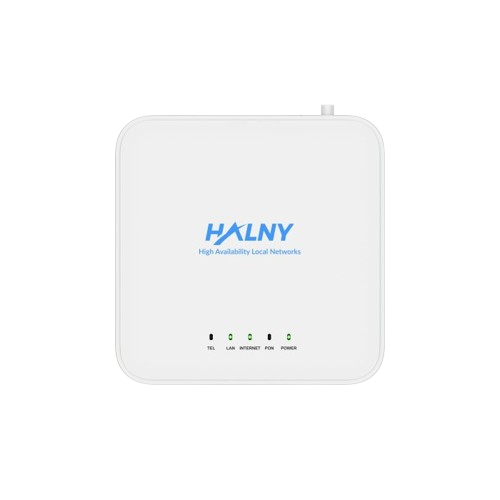

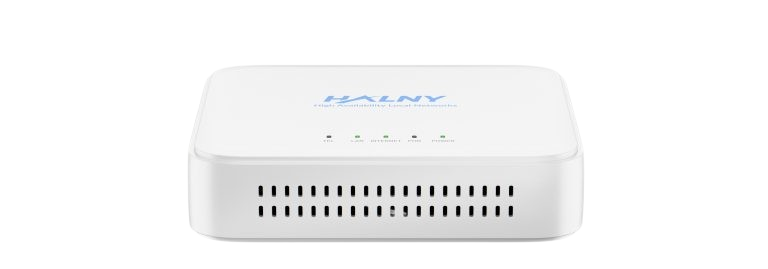

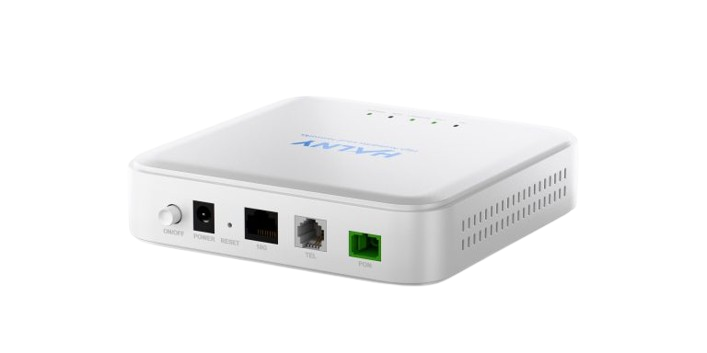

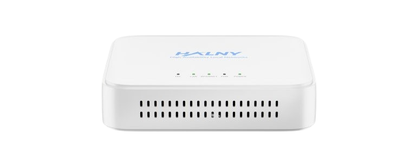

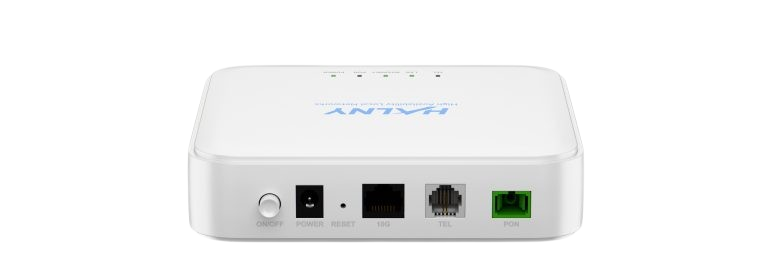

The HALNy HLX-1TLV is a high-performance XGS-PON Optical Network Terminal (ONT) designed for fiber-to-the-home (FTTH) and fiber access networks. Built to support modern 10-Gigabit passive optical networks , this device delivers reliable high-speed connectivity for residential and business subscribers.

PRODUCT TYPE / CATEGORY

• Networking
• Networking Accessories

KEY FEATURES

• XGS-PON ONT compliant with ITU-T standards
• 1 × 10-Gigabit Ethernet LAN port (RJ-45)
• 1 × VoIP / POTS port for voice services
• SC/APC optical interface for fiber connectivity
• Advanced VLAN operations including QinQ and translation
• Supports OMCI provisioning and service provider management
• Compatible with multiple OLT vendors
• Designed for residential and business FTTH deployments
• Ideal Applications
• Fiber-to-the-home (FTTH) broadband networks
• XGS-PON ISP infrastructure
• 10-Gigabit fiber internet access
• Enterprise fiber connectivity
• Voice and data fiber services
• The HALNy HLX-1TLV provides a cost-effective solution for service providers looking to deploy high-speed fiber connectivity with 10-Gigabit performance and advanced network management capabilities.
• Technical Specification
• Hardware Specification: Flash/RAM: 128MB / 1024MB
• CPU: Dual Core 1GHz

TECHNICAL SPECIFICATIONS

• Brand: APC
• Model: HLX-1TLV
• Product Type: Networking Accessories
• XGS-PON ONT compliant with ITU-T standards
• 1 × 10-Gigabit Ethernet LAN port (RJ-45)
• 1 × VoIP / POTS port for voice services
• SC/APC optical interface for fiber connectivity
• Advanced VLAN operations including QinQ and translation
• Supports OMCI provisioning and service provider management
• Compatible with multiple OLT vendors
• Designed for residential and business FTTH deployments
• Fiber-to-the-home (FTTH) broadband networks
• XGS-PON ISP infrastructure
• 10-Gigabit fiber internet access
• Enterprise fiber connectivity
• Voice and data fiber services
• Hardware Specification: Flash/RAM: 128MB / 1024MB
• CPU: Dual Core 1GHz
• WAN Port: XGS-PON N1 SC/APC
• 9.953Gbps Downstream
• 9.953Gbps Upstream
• XGS-PON: Tx 4 ~ 9 dBm
• XGS-PON: Rx -10 ~ -29 dBm
• LAN Port: 1 x port 1000/2500/10000
• BASE-T (RJ-45)
• Auto-sensing, auto-detection
• MDI/ MDI-X
• TEL PORTs: 1 x POTS, RJ11
• Storage Temp: -20℃~70℃ (-4F~158F)
• Operating Temp: 0℃~45℃ (32F~113F)
• Operating Humidity: 5%～95% (non-condensing)
• Power Supply: DC +12V / 1.5A

INTENDED USE / APPLICATIONS

• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
