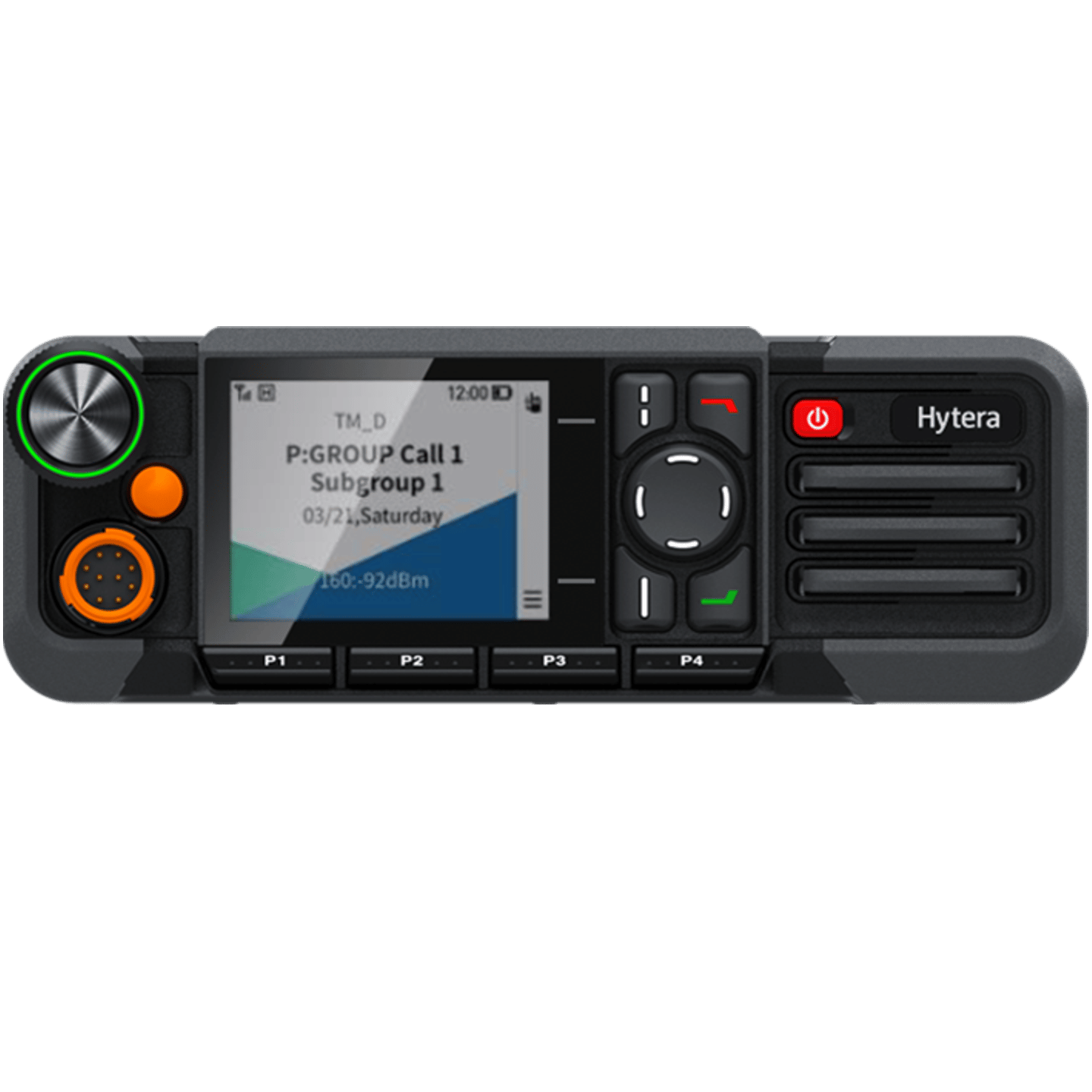

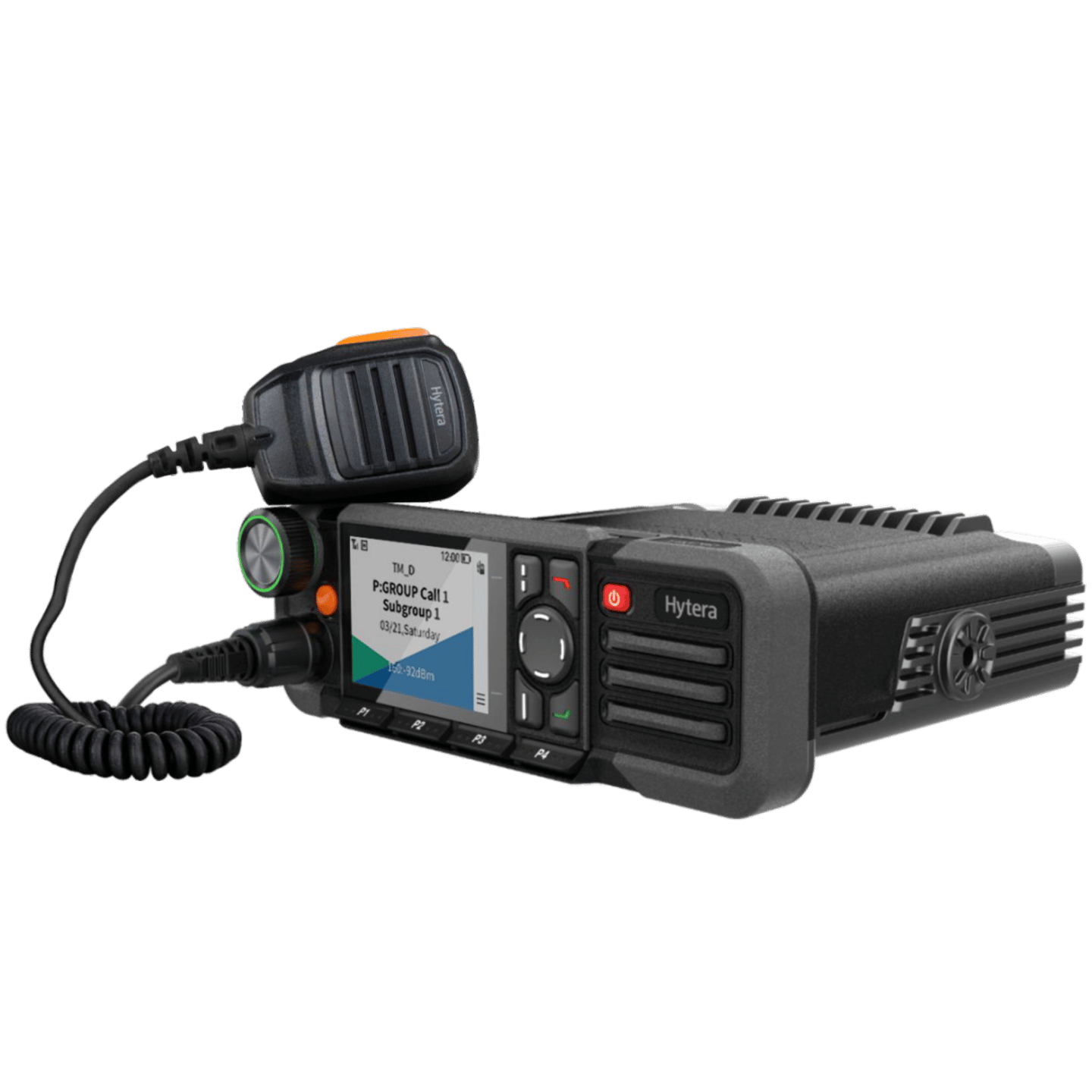

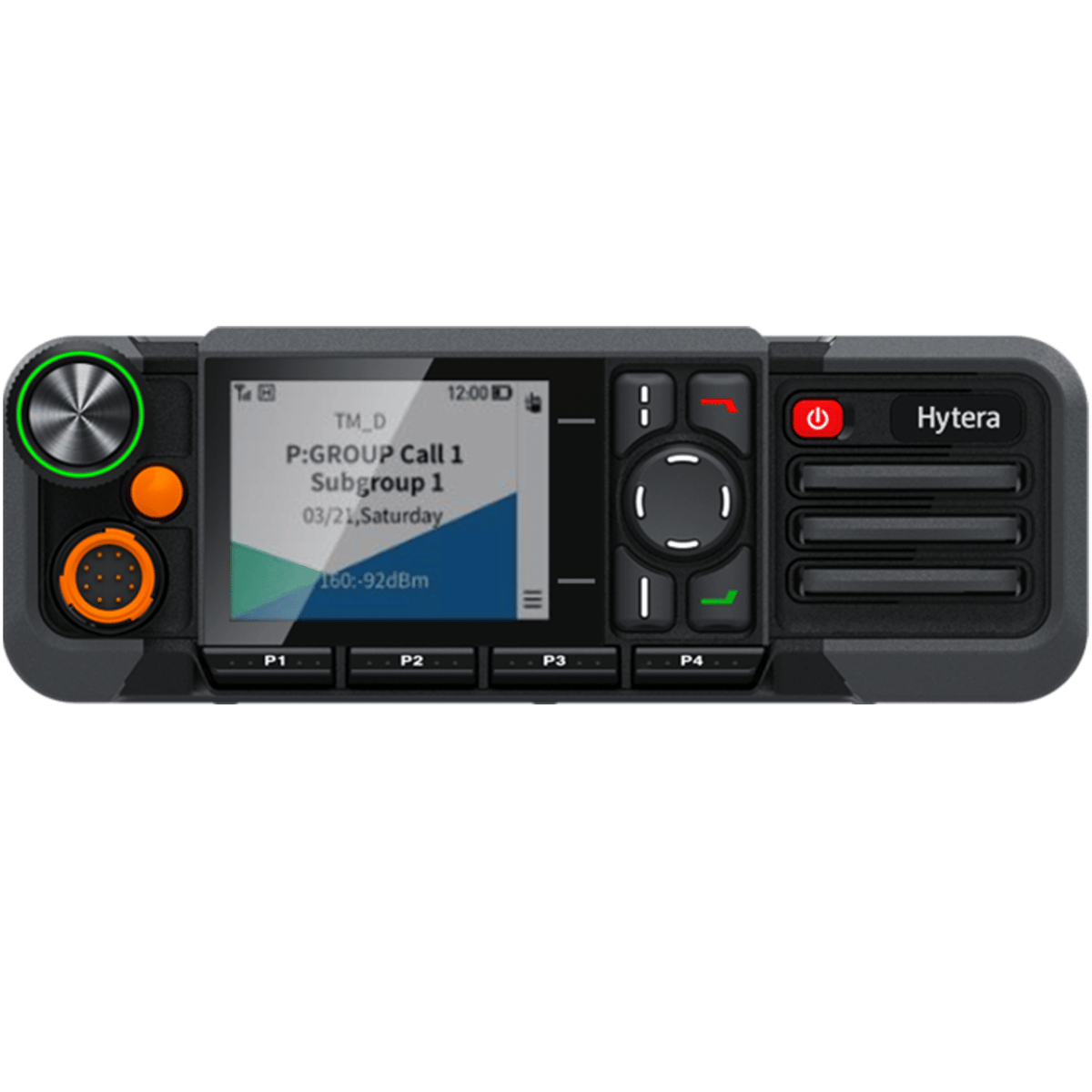

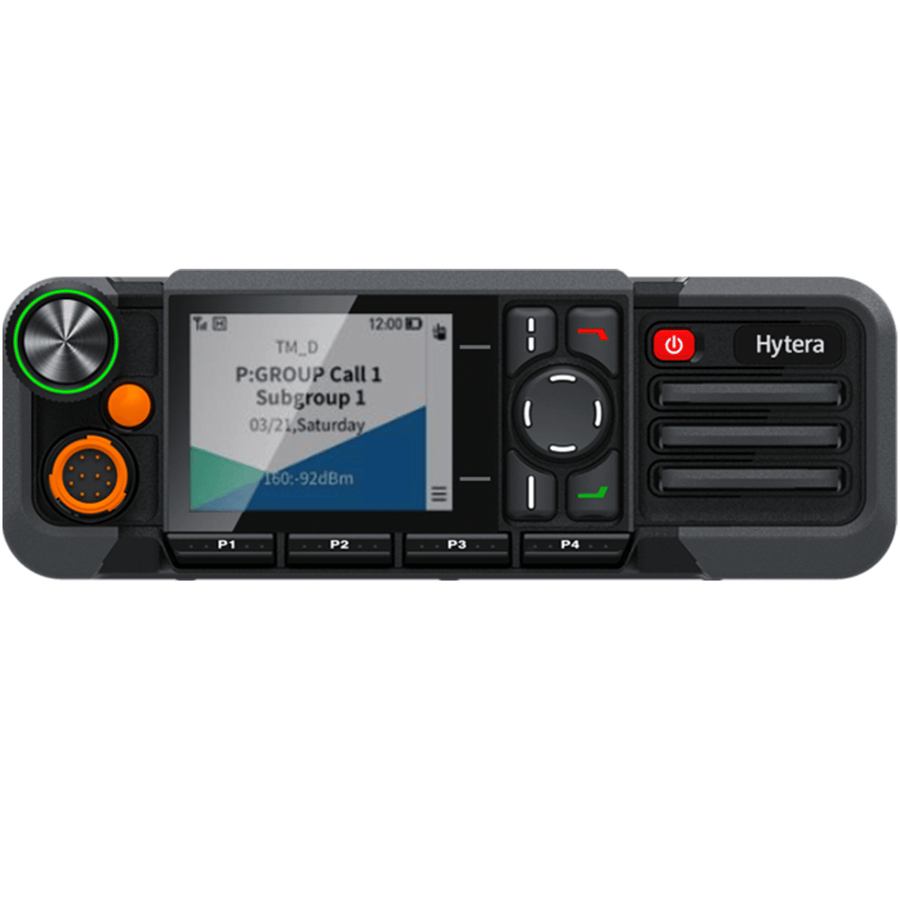

H-Series Professional DMR Mobile Radio and Gateway with LCD Display, and Optional GPS and Bluetooth
The Hytera HM782 H-Series DMR mobile radios are the next-generation in creative style and functionality that elevates the industry standard in professional two-way radios.
The HM782 is the new state-of-the-art in digital mobile radio communications, providing a more efficient experience with loud and clear audio, intuitive user interface, gateway functionality, and extended range.
The HP782 features a 2.4" TFD-LCD display and full keypad that support a wide variety of functions, GPS, and industry-leading audio performance.
The HP782 H-Series mobile radios empower mobile and fleet employees with efficient and reliable communications.
Radio Features
• Size 2 7/16” x 6 31/32” x 7 1/16”
• Weight 56.1oz (1520g)
• UHF 350-470MHz, VHF 136-174MHz
• 1,024 channels, 64 zones (256 channels per zone)
• LCD 2.4” Display, 320x240
• Navigation and Programmable Buttons
• AI-Based Noise Cancellation
• IP54 and MIL-STD-810 G Compliant
• Scrambler (analog), Basic Digital Encryption (ARC4)
• Advanced Software Encryption (AES) (license required)
• Mixed Mode Channel Scanning (Analog and Digital)

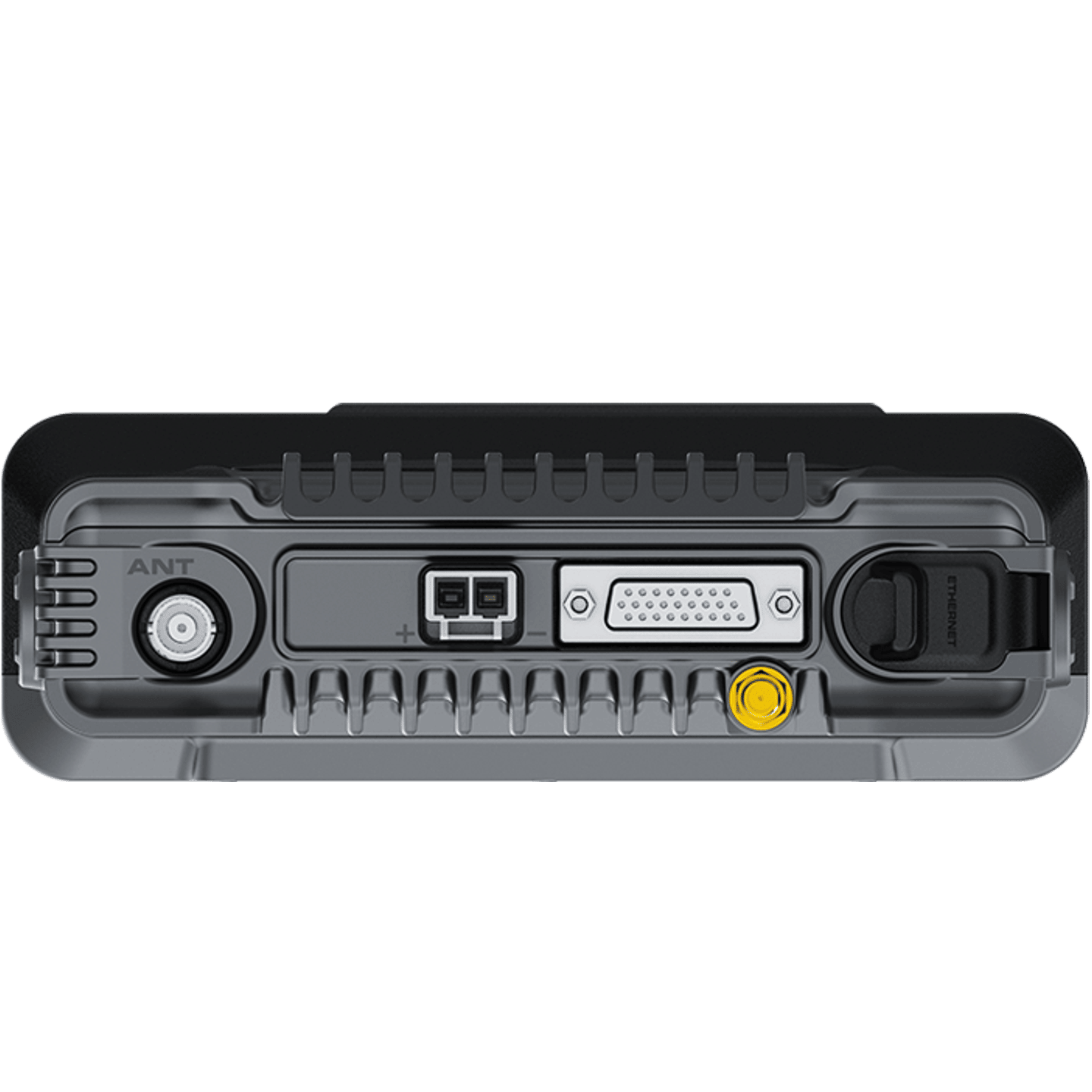

• Accessory and Cable Port
• Ethernet RJ-5 Port
• Back to Back and Wireless Repeater Link Modes
• IP Transit Mode (license required)
• Clarity Data Transmission Mode
• Bluetooth (With BT Model)
• Audio recording on TF/MicroSD Card (license required)
• MicroSD Card (license required)
• GPS Positioning (specify model)
• One touch call/text message/supplemental services
• Radio Enable/Disable and Remote Monitor
• Analog and Digital Emergency calling
• Lone Worker
• Pseudo trunk operation (DMO and RMO)
• SIP Phone - (with optional speaker/mic with keypad)
• DTMF Dial - (with optional speaker/mic with keypad)
• OTAP(Over the Air Programing)
• Multi-Site Roaming, Analog and Digital DTMF
• Supports XPT digital trunking
• Supports DMR Tier III Trunking (license required)
• 3 Year Standard Warranty (Radios only, not Accessories)
MULTI-SYSTEM FLEXIBILITY
The HM782 can be deployed in Analog and Digital Conventional, MPT and XPT Trunking, DMR Tier II and Tier III Trunking, IP Multi-Site Connect, and DMR Simulcast Systems.
CLEAR AND BRIGHT DISPLAY
The HM782 features a 2.4-inch, 240×300 HD TFTLCD display with an intuitive six-grid navigation interface with large type and icons. The display supports 262,000 colors, and is clearly visible in bright sunlight.
LOUDER AND CLEARER AUDIO
Hytera provides industry-leading audio quality through an optimized forward-facing loudspeaker and AI-based voice enhancement with deep learning ability that can accurately extract voice from noise in real time and decreases unwanted background noises as loud as 30db.
HIGHER SECURITY
The HM782 supports Digital End-to-End and Overthe- Air Encryption for voice and data. Hardware encryption is implemented through a built-in encryption card. Advanced software encryption uses the ARC4 and AES encryption algorithms.
WIRELESS LINK
In situations where a wired IP network is unavailable between two repeaters, two HM782 radios using different frequencies can provide a wireless link between the repeaters.
GREATER CALLING FLEXIBILITY
The HM782 supports Individual Calls (radio to radio, radio to dispatcher), Group Calls (one radio to many, dispatcher to many), All Call (broadcast call to all radios, transmit only), and Telephone Calls (with connectivity to PSTN, PABX or SIP networks).
ENHANCED WORKER SAFETY
The HM782 radios are designed for worker safety with an easy access emergency button, emergency calling, and priority interrupt. Lone Worker prompts the user to press a key at preset intervals to indicate they are safe. Large tactile knobs and piano-style buttons provide easy access that keep eyes on the road.
ENHANCED GPS LOCATION TRACKING
The HM782 reports current location information to other radios, the dispatcher, or a third-party applications in real time, enhancing the efficiency of visualized dispatch applications. GPS data is transmitted during voice calls for immediate location targeting, and GPS data can be compressed to increase channel capacity and reduce hardware cost.
DURABLE AND RUGGED
IP54 compliant for water and dust ingress, and MIL-STD- 810 G for shock and humidity.
BACK-TO-BACK
The HM782 can be deployed Back-to-Back to enable communication between analog and digital radios, or radios with different frequencies. Two HM782 radios can be deployed Back-to-Back, or one radio and a repeater can be used.
CLARITY TRANSMISSION
The Clarity Transmission feature provides a wireless data path between remote network devices and a central network management station. HM782 radios function as compact gateway devices and provide wireless channels that transparently transmit data without any modi
IP MULTI-SITE CONNECT
Multiple HM782 mobile radios can be connected to an Ethernet/IP network to provide a reliable and cost-effective method to connect remote radio sites and extend coverage areas. IP Transit can connect radio sites with analog or digital radios, and radios with different frequencies.
Technical Specifications
General
| Frequency Range | UHF 350-470MHz , VHF 136-174MHz |
| Channel Capacity | 1,024 Channels (512 Analog, 512 Digital) |
| Zone Capacity | 64 Zones with 256 Channels per Zone |
| Channel Spacing | 12.5kHz / 20kHz / 25kHz |
| Operational Voltage | 13.6V ±15% |
| Current Drain | Standby: <0.5A Receive: <2.0A Transmit: 1W <3A, 5W <4A, 25W <8A, 45/50W <12A |
| Weight | 56.1oz (1,520g) |
| Dimensions (HxWxD) | 2 7/16” x 6 31/32” x 7 1/16” (61.5 x 177 x 179mm) |
| Frequency Stability | ± 0.5ppm |
| Antenna Impedance | 50Ω |
| Display | LCD 2.4”, 240x320, 262,000 colors, 10 rows |
| Bluetooth | BT 5.0 BLE+EDR |
Receiver
| Digital Sensitivity | 0.18μV (BER5 5%) |
| Analog Sensitivity | 0.16μV (Typical) (12dB SINAD) 0.18μV (12dB SINAD) |
| Adjacent Selectivity | TIA-603: 60dB@12.5kHz, 70dB@20/25kHz ETSI: 60dB@12.5kHz, 70dB@20/25kHz |
| Spurious Response Rejection | TIA-603: 70dB@12.5/20/25kHz ETSI: 70dB@12.5/20/25kHz |
| Intermodulation | TIA-603: 70dB@12.5/20/25kHz ETSI: 65dB@12.5/20/25kHz |
| Blocking | TIA-603: 80dB ETSI: 84dB |
| Hum and Noise | 40dB@12.5kHz, 43dB@20kHz, 45dB@25kHz |
| Rated Audio Power Output | Internal (20 Ohm load) 3W, 8W Max External (8 Ohm load) 8W, 20W Max |
| Rated Audio Distortion | ≤3% |
| Audio Response | +1 to -3dB |
| Conducted Spurious Emission | <-57dBm |
Transmitter
| RF Power Output | Low Power: UHF: 1-25W, VHF: 5-25W High Power: UHF: 1-45W, VHF: 5-50W |
| FM Modulation | 11K0F3E @ 12.5kHz 14K0F3E @ 20kHh 16K0F3E @ 25kHz |
| 4FSK Digital Modulation | 12.5kHz Data Only: 7K60FXD 12.5kHz Data and Voice: 7K60FXW |
| Conducted/Radiated Emission | -36dBm 1GHz |
| Modulation Limiting | ±2.5kHz @ 12.5kHz ±4.0kHz @ 20kHz ±5.0kHz @ 25kHz |
| FM Hum and Noise | 40dB @ 12.5kHz, 43dB @ 20kHz, 45dB @ 20/25kHz |
| Adjacent Channel Power | 60dB @ 12.5kHz, 70dB @ 20/25kHz |
| Audio Response | +1 to -3dB |
| Audio Distortion | ≤3% |
| Digital Vocoder Type | AMBE+2TM |
Environmental
| Operating Temperature | -22°F to +140°F (-30°C to +60°C) |
| Storage Temperature | -40°F to +185°F (-40°C to +85°C) |
| ESD | IEC 61000-4-2 (Level 4) ±8kV Contact, ±15kV Air |
| Dust and Water Ingress | IP54 Standard |
| Humidity | Per MIL-STD-810 C/D/E/F/G Standard |
| Shock and Vibration | Per MIL-STD-810 C/D/E/F/G Standard |
GPS (5 Satellites visible at nominal 130dBm)
| Time to First Fix Cold Start | <60 Seconds (Typical TTFF) |
| Time to First Fix Hot Start | <10 Seconds (Typical TTFF) |
| Horizontal Accuracy | <5 meters |
Ordering Information
| HM782-Uv | UHF 350-470MHz, 1-45W |
| HM782-V1 | VHF 136-174MHz, 5-50W |
| HM782-G-BT-Uv | UHF 350-470MHz, 1-45W, with GPS and Bluetooth |
| HM782-G-BT-V1 VHF | VHF 136-174MHz, 5-50W, with GPS and Bluetooth |
