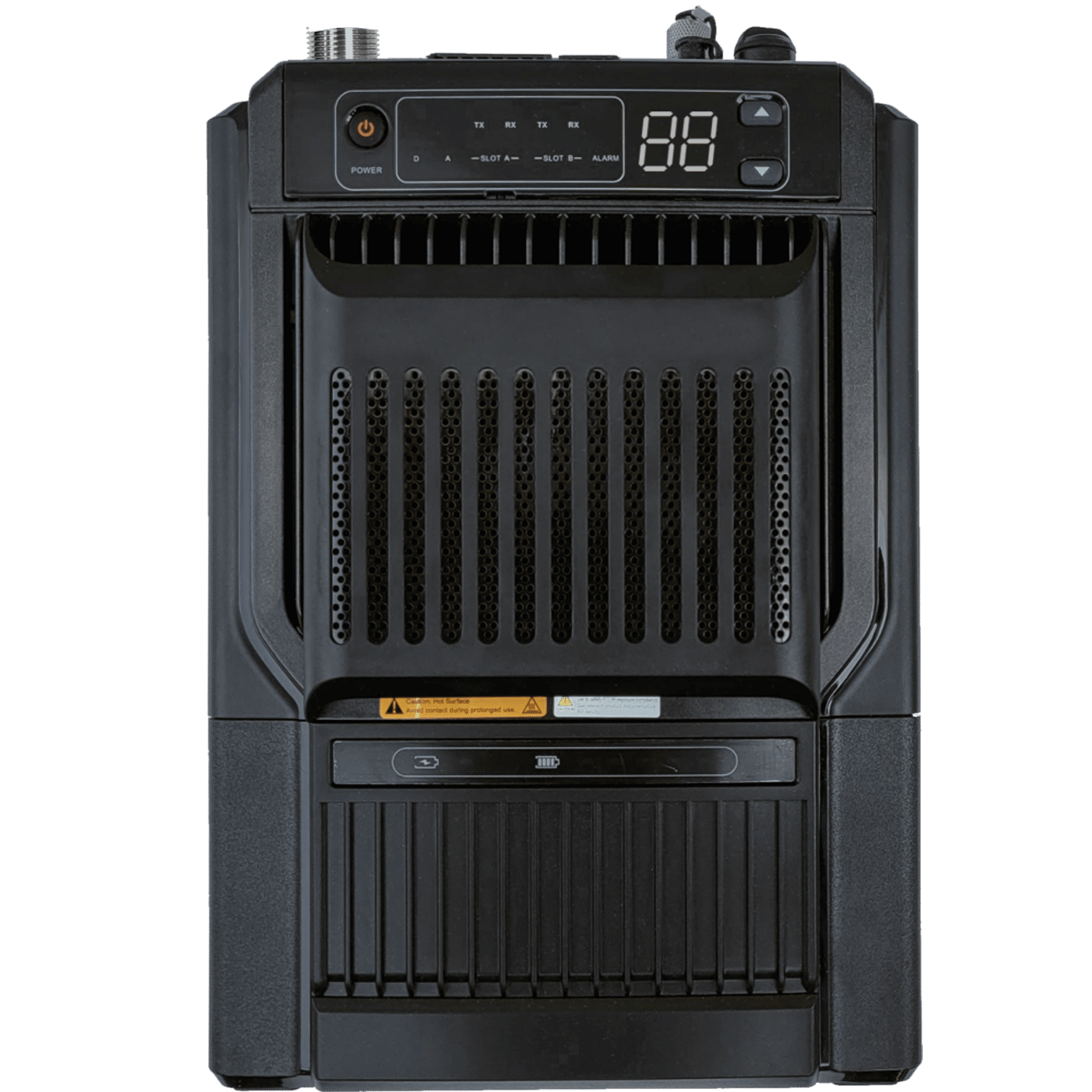

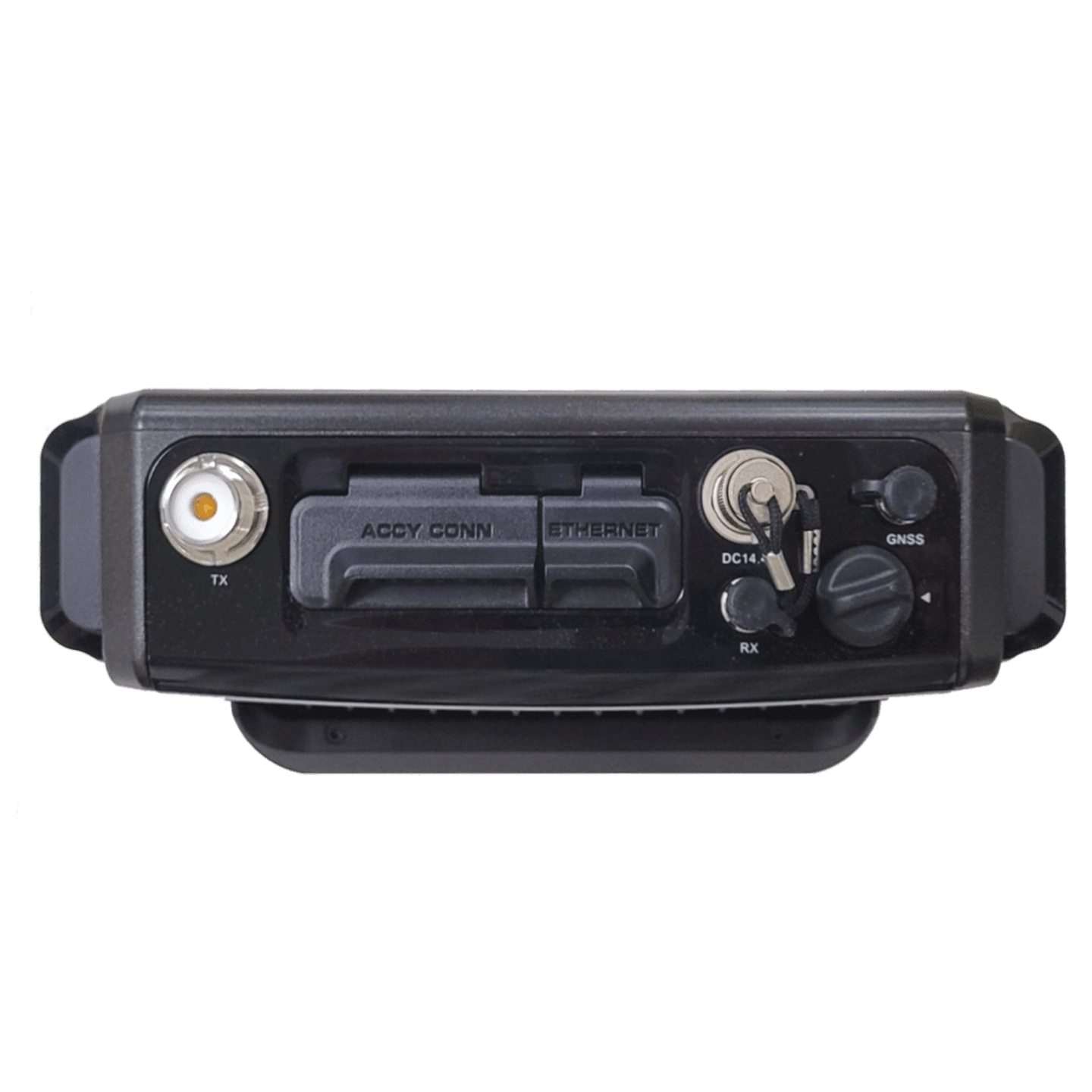

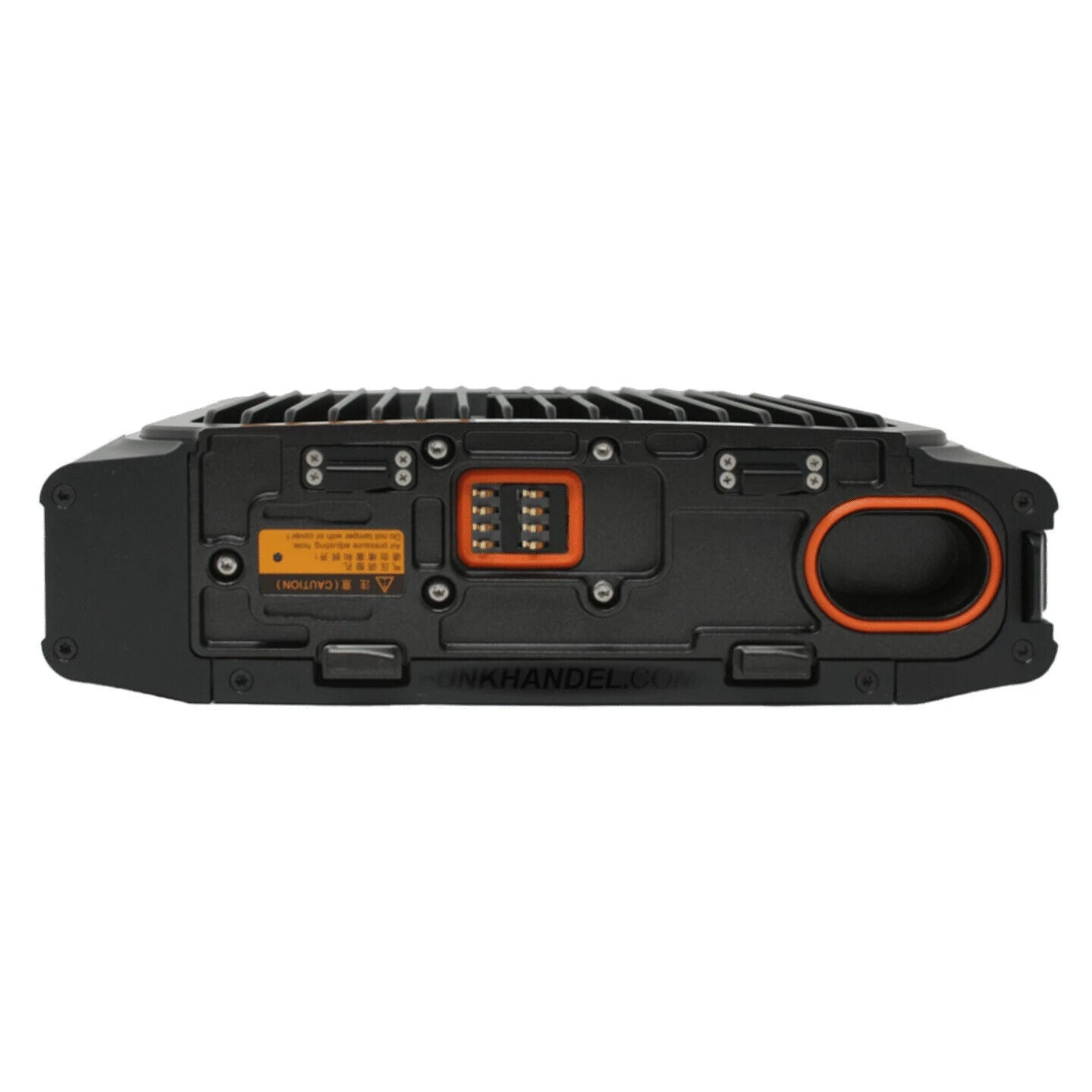

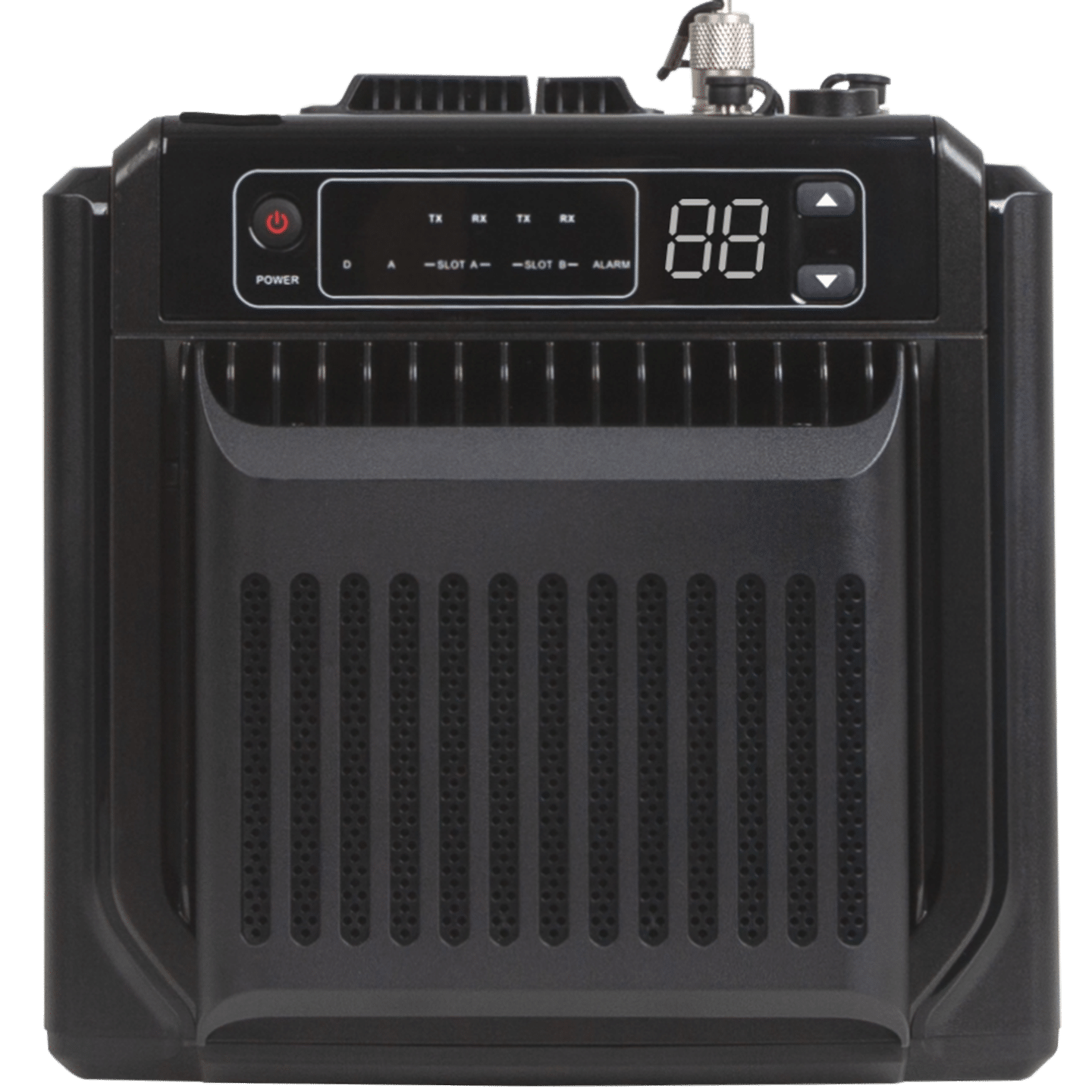

Hytera HR652 Compact DMR Repeater UHF 400-470MHz Analog and Digital modes

The Hytera HR652 is a compact UHF DMR repeater engineered to extend radio coverage for professional communications networks operating in both analog and digital environments. Built on TDMA digital technology and fully compliant with the DMR standard, the HR652 delivers two simultaneous voice channels in digital mode, effectively doubling voice channel capacity without requiring additional spectrum. Its ultra-compact form factor and DC power input make it equally at home in permanent fixed installations and mobile or temporary deployments, while the optional battery system adds resilience for backup power scenarios. Advanced thermal management, AI-based noise cancellation, and a 100% continuous duty cycle ensure dependable performance in demanding operational environments. IP Site Connect and SIP telephone interconnect capabilities allow the HR652 to integrate into larger, networked communications infrastructures.

Key features & benefits

• Dual-Mode Analog and Digital Operation — The HR652 supports both analog and digital modes with automatic detection between the two, allowing seamless interoperability during fleet migration from analog to DMR digital without disrupting ongoing communications.
• Two Simultaneous Voice Channels via TDMA — Full DMR-standard TDMA technology enables two simultaneous voice paths in digital mode on a single channel, doubling effective voice capacity and making more efficient use of licensed spectrum.
• Ultra-Compact Form Factor — At 7 5/16" x 8 5/16" x 3 3/16" and just 4 lb 6 oz (2.0 kg), the HR652 installs easily on flat surfaces or deploys as a portable repeater, providing maximum flexibility for space-constrained or temporary site requirements.
• 100% Continuous Duty Cycle — An advanced heat sink design with active fan cooling enables the HR652 to operate at full duty cycle continuously, supporting high-traffic environments where repeater reliability cannot be compromised.

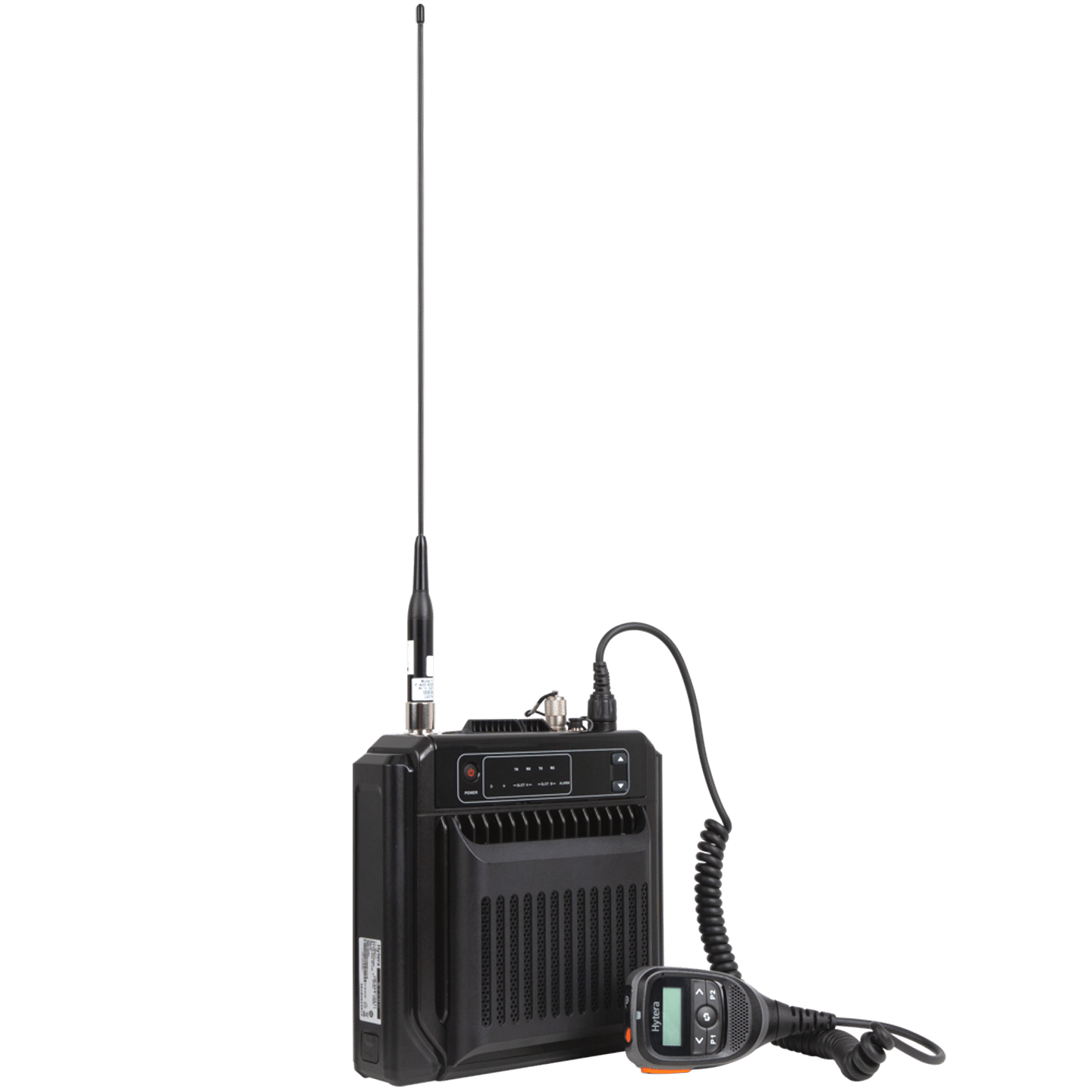

• Optional Battery for Mobile and Backup Applications — An optional 14.4V / 12.5Ah / 1800W battery (charged via the PS8002) transforms the HR652 into a self-contained portable or battery-backed repeater, ideal for events, incident command posts, or sites without reliable grid power.
• IP Site Connect for Networked Repeater Linking — Licensed IP Site Connect capability allows multiple HR652 repeaters to be interconnected over IP infrastructure in both analog and digital modes, extending coverage across wide geographic areas without dedicated RF linking hardware.
• AI-Based Noise Cancellation — Integrated AI-driven noise cancellation processing improves received audio clarity, reducing the impact of background noise and interference on voice intelligibility across the coverage area.
• Layered Encryption Support — Basic ARC4 encryption is included as standard, with Enhanced AES encryption available under license, enabling organizations to select the appropriate level of communications security for their operational requirements.
• SIP Telephone Interconnect — Built-in SIP capability enables telephone interconnect functionality, allowing radio users to communicate directly with the public switched telephone network or VoIP systems without additional gateway hardware.
• 1024-Channel Capacity — With 1024 channels across 1 zone (64 channels per zone), the HR652 supports complex channel plans suited to large organizations and multi-department communications requirements.
