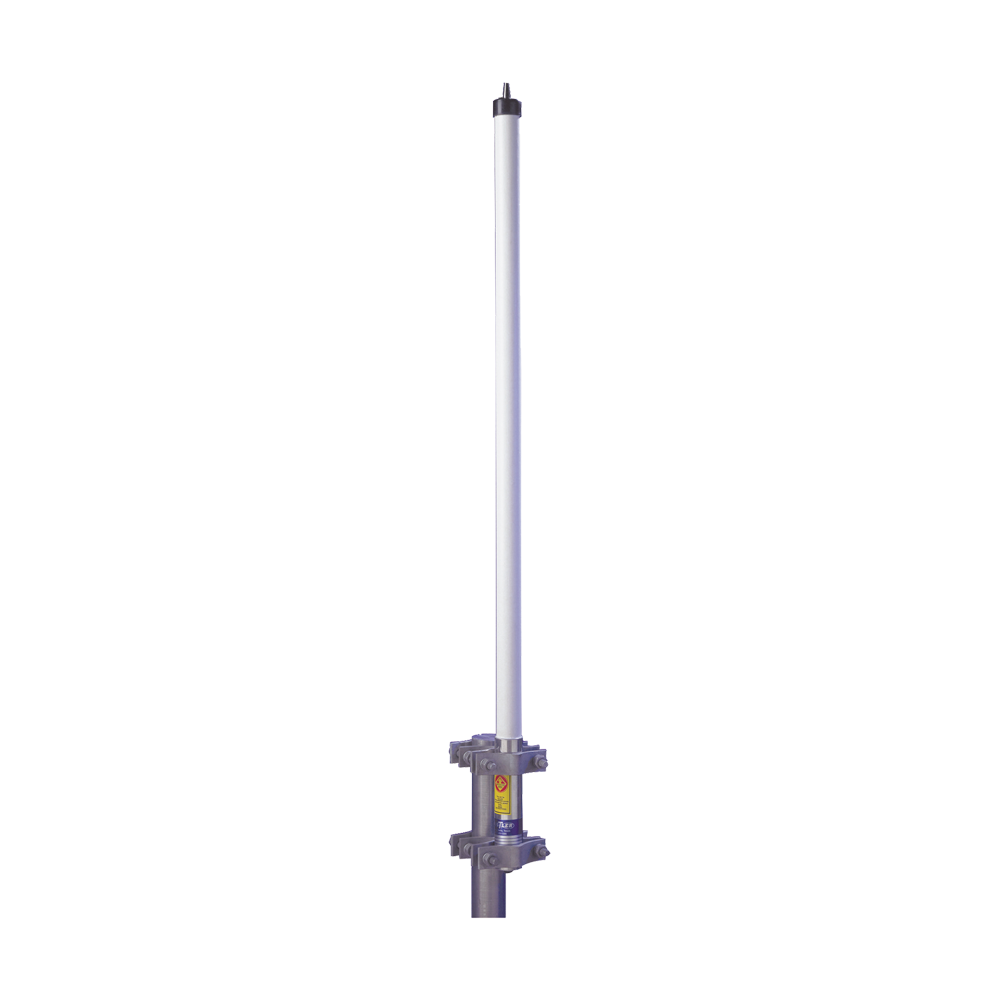

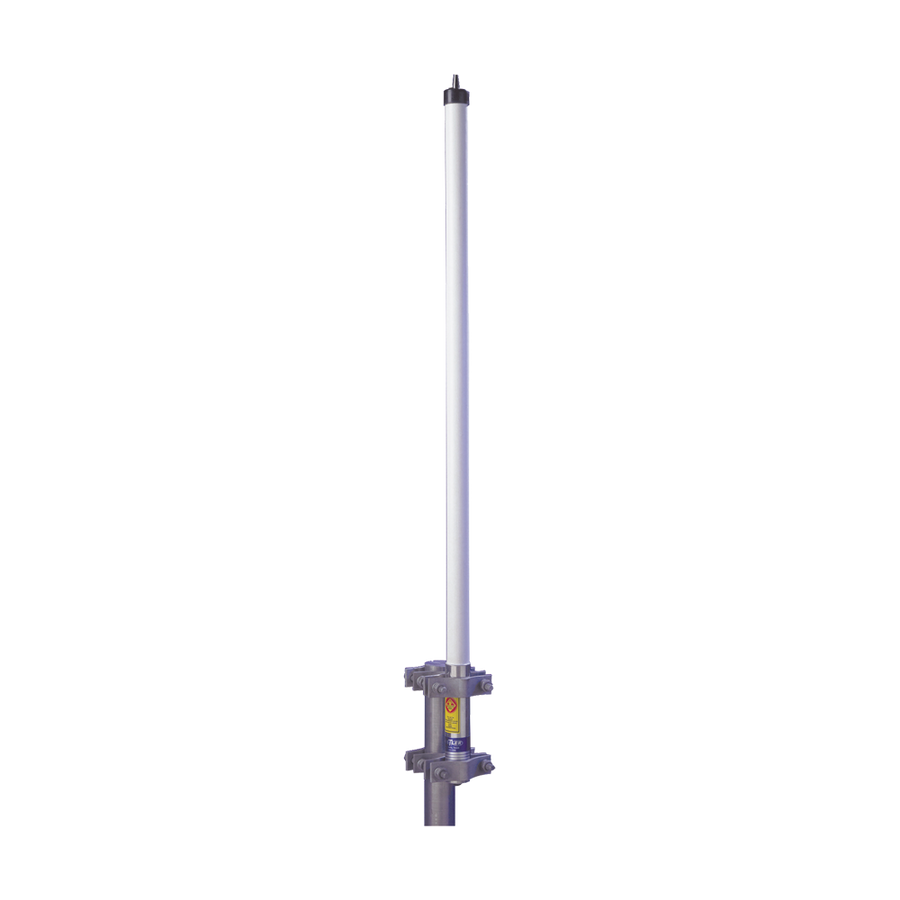

Hustler HX10-45070 10 dBd UHF Base Antenna 406-512 MHz 700W

• Frequency Range: 406-512 MHz.

• Gain: 10 dBd (12.15 dBi)

• Bandwidth: 20 MHz.

• V.S.W.R.: 1.5:1

• Polarization: Vertical

• Power Rating: 700 Watts Maximum Continuous

• Termination: Type N Female or 7/16

• Vertical Aperture
(3 dB from max): 6 Degrees

• Weight: 27 lb. (12.2 kg.)

• Wind Load
(Lateral thrust @ 100 mph): 100 lb. (444 N)

• Wind Area
(flat plate equivalent): 2.1 sq. ft. (0.19 sq.m.)

• Maximum Wind Speed: 160 mph (257 kph.)

•Length: 17.71 ft. (5.4m)

• Material:

- Feed Lines: Copper

- Radiators: Copper

• Color: Radome White

• Mounting
(top or side mount): Galvanized steel mounting clamps (3 sets) permit mounting the antenna to a support pipe up to 3.0" O.D.

• Lightning Protection: Direct Ground

• Accessories: Reflector Tube (adds 3 dBb directional) and Side Mount Kit optional.

Key Features

• Fiberglass Cover Provides Superior Protection Against Environmental Elements
• High Resistance to Electrical Discharges and Extreme Weather Conditions
• Copper Alloy Construction With Welded Joints Reduces Intermodulation
• Weather-Sealed N-Type Connector for All-Weather Performance
• Integrated Lightning Protection With Tip-Mounted Lightning Rod
• Withstands Wind Speeds up to 160 mph for Tower Installations
