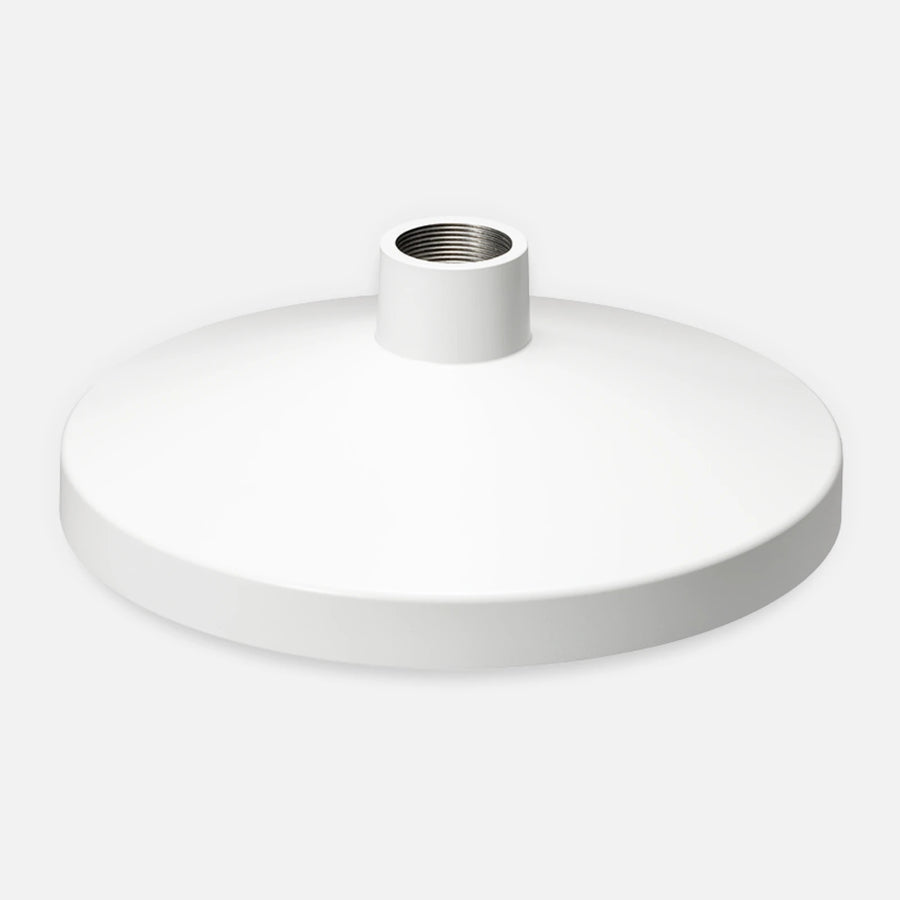

i-PRO WV-QSR503F1-W Mount Bracket with ANSI 1-1/2 in Female Thread, i-PRO White

Part number / SKU
WV-QSR503F1-W

$47.99

In stock

Warranty
Manufacturer warranty

Free Economy shipping available at checkout

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The i-PRO WV-QSR503F1-W is the ANSI female thread version of the WV-QSR503 mount bracket, used to install an i-PRO outdoor dome type camera on a threaded pipe or arm. Its NPSC 1-1/2 parallel female thread (40A, 11.5 threads per inch, 25.4 mm deep) mates with a locally procured NPT 1-1/2 taper male fitting.

The bracket is aluminum die cast in i-PRO white, measures 315 mm in diameter by 125 mm high (12-13/32 x 4-29/32 in) and weighs about 1.2 kg (2.65 lb). It is rated for -58 to 140 F (-50 to 60 C) and comes with five M4 x 8 mm attachment plate fixing screws (one spare), a wire holder and its fixing screw.

The WV-QSR503 series also includes a 4-hole type (WV-QSR503), an ISO female thread type (QSR503F) and ISO and ANSI male thread types (QSR503M and QSR503M1). i-PRO publishes the list of supported cameras on its technical information site.

  • Best for: mounting a supported i-PRO outdoor dome type camera on a 1-1/2 in NPT male threaded pipe or arm.
  • System fit: i-PRO outdoor dome type cameras that use the WV-QSR503 series mount bracket; mates with NPT 1-1/2 taper male thread.
  • Important to know: check i-PRO's supported camera list for your camera model, and use a mating pipe or arm rated for the camera and bracket weight.

Why teams choose it

Built for secure sites

  • ANSI thread

    NPSC 1-1/2 parallel female thread that mates with NPT 1-1/2 taper male fittings.

  • Outdoor rated metal

    aluminum die cast body rated -58 to 140 F.

  • Hardware included

    five M4 x 8 mm plate screws (one spare), wire holder and screw.

  • Matching finish

    i-PRO white to match i-PRO white cameras.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKUWV-QSR503F1-W
General
Brand i-PRO
Model WV-QSR503F1-W
Series WV-QSR503
Device Type Mount bracket, ANSI female thread type
Application Outdoor dome type camera
Thread Type ANSI female, NPSC 1-1/2 parallel (40A)
Thread Pitch 11.5 threads per inch
Thread Depth 25.4 mm
Mating Part NPT 1-1/2 taper male (procured locally)
Included Items Operating instructions; 5 attachment plate fixing screws M4 x 8 mm (1 spare); wire holder; wire holder fixing screw M4 x 8 mm
Physical
Dimensions 315 mm diameter x 125 mm high (12-13/32 x 4-29/32 in)
Weight Approx. 1.2 kg (2.65 lb)
Material Aluminum die cast
Color i-PRO white
Environmental
Operating Temperature -58 to 140 F (-50 to 60 C)
