I-Pro · IP Camera

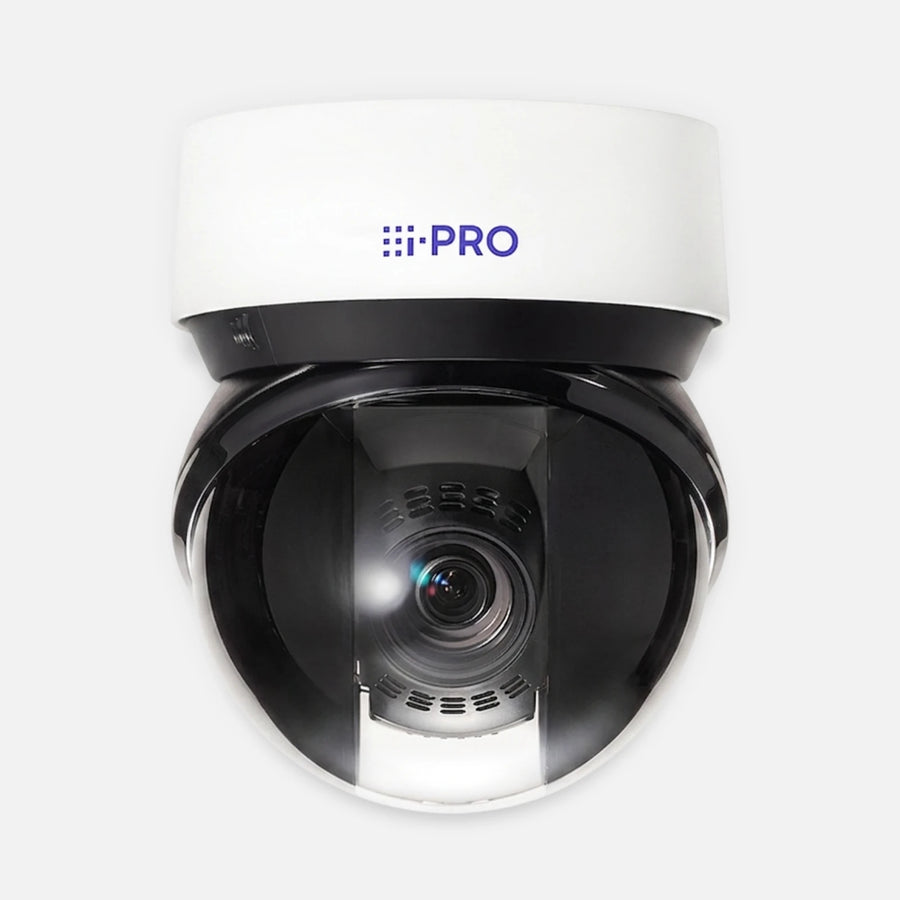

i-PRO WV-S66300-Z3L 2MP Outdoor AI Rapid PTZ Camera, 32x Zoom, 4.25 to 136 mm, IR

Part number / SKU
WV-S66300-Z3L
  • 1920 x 1080, 2MP
  • 32x optical zoom
  • 4.25 to 136 mm
  • H.265, H.264, JPEG, MJPEG
  • Color 0.011 lx, 30 IRE

Works with: WV-QWL506-W wall mount bracket, WV-QWL506M1-W wall mount bracket, ANSI male 1.5 in NPT, WV-QCL100-W ceiling mount, WV-QCL101-W ceiling mount, WV-QCL501-W ceiling mount, WV-QEM505-W ceiling mount and 7 more models Confirmed by the manufacturer


$1,970.99

In stock

Warranty
Manufacturer warranty

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The i-PRO WV-S66300-Z3L is a 2MP (1920 x 1080 at up to 60 fps) outdoor PTZ network camera with an AI engine, a 4.25 to 136 mm 32x optical zoom lens and built-in IR LEDs. It pans 360 degrees endlessly, tilts -20 to +90 degrees, stores 256 presets and supports AI auto tracking plus up to 2 edge AI applications.

The 1/2.8 type CMOS sensor provides up to 144 dB Super Dynamic WDR, color down to 0.011 lx at 30 IRE and IR reach of up to 250 m at 50 IRE or 350 m at 30 IRE. It runs on PoE++ (IEEE 802.3bt Class 6, about 45.9 W) for full pan and tilt speed, or on PoE+ (802.3at Class 4, about 25.4 W) at reduced speed and a narrower temperature range. The aluminum housing with clear polycarbonate dome is rated IP66, NEMA 4X and IK10.

Built-in AI analytics include video motion, face, people, vehicle, occupancy and scene change detection, plus sound classification for gunshot, yell, vehicle horn and glass break. Optional accessories include WV-QWL506-W and WV-QWL506M1-W wall mounts, WV-QCL501-W ceiling mount, WV-QDC508 series domes, WV-QCA501A I/O cable and WV-PM500 microphone.

  • Best for: outdoor PTZ coverage that needs long zoom, IR night viewing and on-camera AI detection and auto tracking.
  • System fit: ONVIF Profile G, M, S and T video management systems; PoE++ IEEE 802.3bt (full speed) or PoE+ IEEE 802.3at power.
  • Important to know: on PoE+ the pan and tilt speeds drop to 90 degrees per second and the operating range narrows to -4 to 140 F (-20 to 60 C); use PoE++ for full performance.

Why teams choose it

Built for secure sites

  • Long reach

    32x optical zoom from 4.25 to 136 mm, with IR up to 250 m at 50 IRE.

  • Fast positioning

    up to 700 degrees per second preset pan speed on PoE++, with 256 presets.

  • AI on board

    AI auto tracking plus face, people, vehicle and sound detection in the camera.

  • Cold weather rated

    -58 to 140 F on PoE++, IP66, NEMA 4X and IK10.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKUWV-S66300-Z3L
General
Brand i-PRO
Model WV-S66300-Z3L
Device Type 2MP outdoor PTZ network camera with AI engine, IR LED
Video
Resolution 1920 x 1080, 2MP
Resolution Detail Up to 60 fps (16:9)
Image Sensor 1/2.8 type CMOS
Lens 32x optical zoom
Lens Detail Extra zoom 48x at 1280 x 720
Focal Length 4.25 to 136 mm
Aperture F1.6 (wide) to F4.4 (tele)
Angle of View 2.4 to 65 deg horizontal; 1.4 to 39 deg vertical (16:9)
Minimum Illumination Color 0.011 lx, 30 IRE
Minimum Illumination Detail 0.015 lx (50 IRE); B/W 0.006 lx (50 IRE); 0 lx with IR LED on
IR Distance Up to 250 m (820 ft) at 50 IRE; up to 350 m (approx. 1,150 ft) at 30 IRE
WDR Up to 144 dB (Super Dynamic on, level 31)
Video Compression H.265, H.264, JPEG, MJPEG
Pan Range 360 deg endless
Tilt Range -20 to +90 deg
Pan Speed Manual up to 150 deg/s (PoE++) or 90 deg/s (PoE+); preset up to 700 deg/s (PoE++) or 90 deg/s (PoE+)
Tilt Speed Manual up to 150 deg/s (PoE++); preset up to 500 deg/s (PoE++) or 90 deg/s (PoE+)
Presets 256
Analytics Up to 2 edge AI apps; AI auto tracking; AI video motion, face, people, vehicle, occupancy and scene change detection; AI sound classification (gunshot, yell, vehicle horn, glass break)
Storage microSDXC/SDHC/SD up to 512 GB
Electrical
Power Supply PoE++ IEEE 802.3bt Class 6, approx. 45.9 W; or PoE+ IEEE 802.3at Class 4, approx. 25.4 W
Network 10BASE-T/100BASE-TX, RJ45
Audio Audio in and out, 3.5 mm stereo mini jacks; G.726, G.711, AAC-LC
Alarm I/O 3 alarm inputs (2 shared with alarm and AUX outputs), via optional WV-QCA501A cable
Security FIPS 140-2 Level 3 secure element, HTTPS, IEEE 802.1X, signed firmware
Physical
Dimensions 167 mm max diameter x 205 mm high
Weight Approx. 3 kg (without attachment)
Housing Aluminum, i-PRO white; clear polycarbonate dome
Environmental
Operating Temperature -58 to 140 F (-50 to 60 C) on PoE++ (power on from -22 F / -30 C); -4 to 140 F (-20 to 60 C) on PoE+
Humidity 10% to 100%, no condensation
IP Rating IP66
NEMA Rating NEMA 4X, Type 4X
Impact Rating IK10
Listings and Approvals
Agency Approvals UL 62368-1, c-UL (CSA C22.2 No. 62368-1)
Standards CE, IEC 62368-1, FCC Part 15 Class A, ICES-003 Class A, EN 55032 Class A, EN 55035, NEMA TS2, ONVIF Profile G/M/S/T, NDAA compliant
