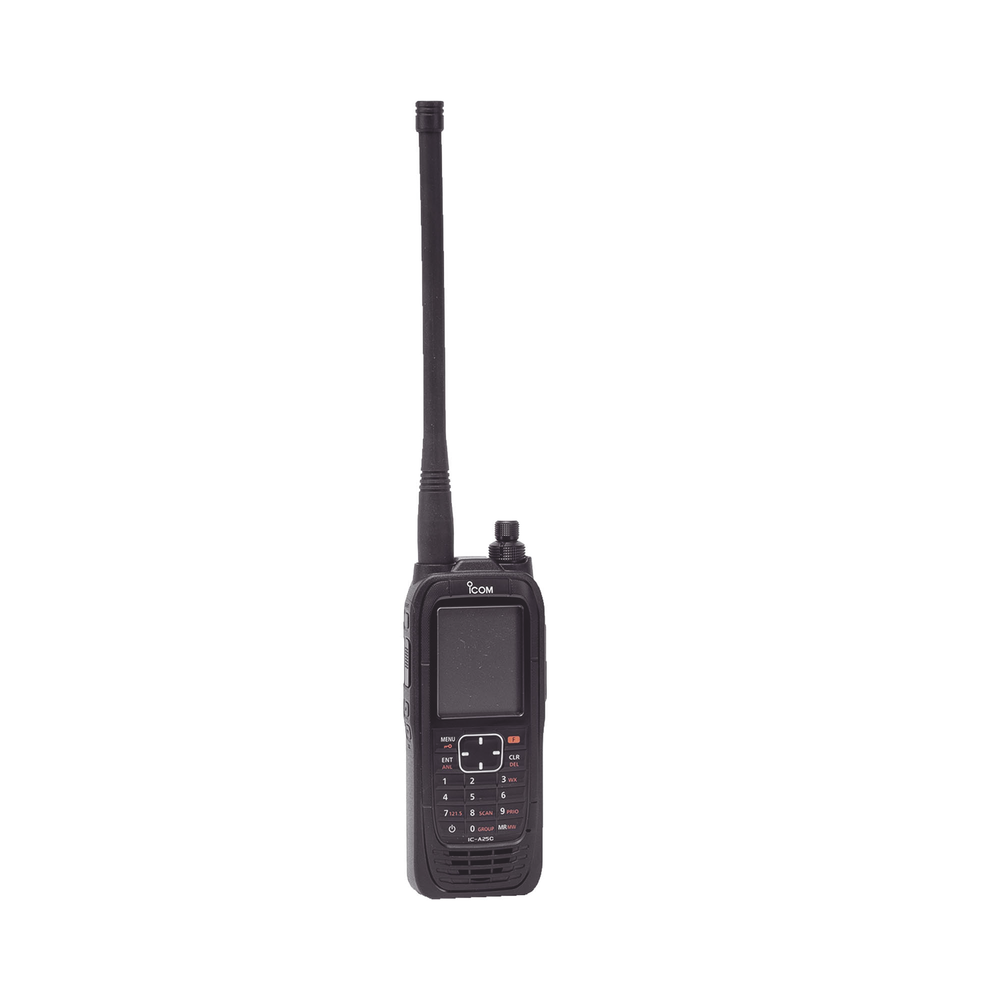

6 W (PEP) Powerful Air Band Radio with Built-in GPS and Bluetooth®
Head in the Right Direction with the A25 Series
The A25 series is a powerful air band handheld with 6 watts of power and an IP57 waterproof rating; weather cannot stop these radios. The handheld includes a large 2350mAh Li-ion battery, providing a long operating time. The easy-to-use interface and large 2.3-inch LCD combine to provide stress-free programming and in-flight operation. Built-in Bluetooth®, GPS, and VOR navigation are available in the A25N NAV/COM version.
General
|
IC-A25N |
IC-A25C |
| NAV and COM |
NAV and COM channels |
COM channels |
| Frequency range |
TX |
118.000–136.992 MHz |
118.000–136.992 MHz |
| RX |
108.000–136.992 MHz |
118.000–136.992 MHz |
| RX (Weather) |
161.650–163.275 MHz |
161.650–163.275 MHz |
| Number of memory channels |
300 channels/15 groups |
| Channel spacing |
25/8.33 kHz |
| Type of emission |
6K00A3E, 5K60A3E, 16K0G3E (Weather) |
| Power supply requirement |
7.2 V DC (BP-288), 11.0 V DC (External DC Jack) |
| Current drain (approximately) |
Tx High |
Less than 1.8 A |
| Rx Max. audio/Stand-by |
Less than 500 mA
90 mA typ. (GPS, Bluetooth, Light: OFF) |
| Antenna impedance |
50 Ω |
| Operating temperature range |
−10 °C to +60 °C;
−14 °F to +140 °F |
Dimensions (W × H × D;)
(Projections not included) |
58.9 × 148.4 × 31.8 mm;
2.3 × 5.8 × 1.3 in |
| Weight (approximately) |
340 g; 12.0 oz (with BP-288) |
Transmitter
|
IC-A25N |
IC-A25C |
| Output power (at 7.2 V DC) |
6.0/1.8 W typical (PEP/carrier) |
| Audio harmonic distortion |
Less than 10% (at 60% modulation) |
| Hum and noise ratio |
More than 35 dB |
| Spurious emissions |
More than 46 dB
(Except operating frequency ±62.5 kHz in 25 kHz channel spacing.)
(Except operating frequency ±20.825 kHz in 8.33 kHz channel spacing.) |
| Frequency stability |
±0.4 kHz |
Receiver
|
IC-A25N |
IC-A25C |
| Intermediate frequencies |
46.35 MHz/450 kHz (1st/2nd) |
| Sensitivity |
NAV/COM
(6 dB S/N) |
Less than 0 dBμ |
| WX (12 dB SINAD) |
Less than -8 dBμ |
| Squelch sensitivity (at threshold) |
Less than 0 dBμ (AM), Less than -5 dBμ (FM) |
| Spurious response |
More than 60 dB (AM), More than 30 dB (FM) |
| Hum and noise |
More than 35 dB (at 30% modulation) |
| Audio output power |
External speaker |
530 mW typical (AM 8 Ω/60% Mod at 10% distortion) |
| Internal speaker |
1200 mW typical (AM 8 Ω/60% Mod at 10% distortion) |
| Ext. speaker connector |
3-conductor 3.5 (d) mm (1⁄8ʺ)/8 Ω |
Measurements made in accordance with FCC Part87.
All stated specifications are subject to change without notice or obligation.
Applicable U.S. Military Specifications
Standard
|
MIL-810 G |
| Method |
Procedure |
| Low Pressure |
500.5 |
I, II |
| High Temperature |
501.5 |
I, II |
| Low Temperature |
502.5 |
I, II |
| Temperature Shock |
503.5 |
I-C |
| Solar Radiation |
505.5 |
I |
| Rain Blowing/Drip |
506.5 |
I, III |
| Humidity |
507.5 |
II |
| Salt Fog |
509.5 |
– |
| Dust Blowing |
510.5 |
I |
| Immersion |
512.5 |
I |
| Vibration |
514.6 |
I |
| Shock |
516.6 |
I, IV |
Also meets equivalent MIL-STD-810-C, -D -E and -F.
Applicable IP Rating
| Ingress Protection Standard |
| Water |
IP57 (Dust-protection and Waterproof* protection)
* One meter depth for 30 minutes.
|
Frecuency range:
TX/RX (COM): 118.00-136.975MHz
RX (Weather): 161.650-163.275MHz
General Features:
- Easy-to-use interface with full keypad.
- LCD of 2.3 inches with night mode operation.
- “Flip-flop” channel recall.
- 121.5MHz emergency key.
- Weather channels.
- Memory-channel scan and priority scan.
- 6W (PEP) of powerful.
- IP57 dust-protection and waterproof construction.
- ANL (Auto Noise Limiter) for noise reduction.
- 8.33 and 25kHz channel spacing.
This model does not include VOR navigation function, Bluetooth, and GPS.
Supplied accessories:
- Antenna (FAB02AR)
- Battery pack (BP288)
- Belt clip (MB133)
- Headset adapter (OPC2379)
- Rapid charger (BC224 + BC123SA)
- Handstrap
- Owner’s manual
Dimensions: 2.3 × 5.8 × 1.3 in
Weight: 12.0 oz
