Icom

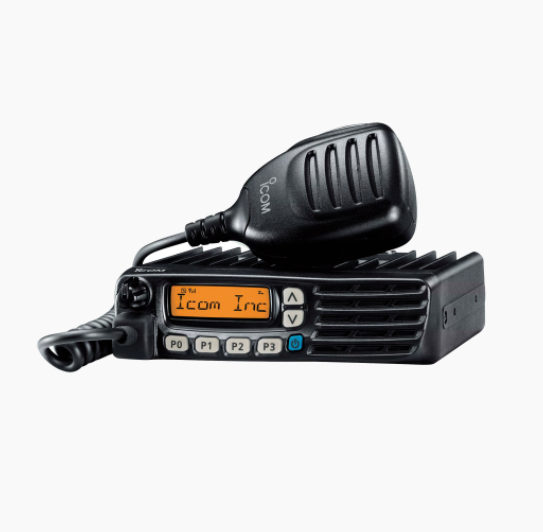

ICOM IC-F6021 Analog Mobile Radio, 45 W, 400-470MHz UHF, 128 Channels DTMF
ICOM IC-F6021 Analog Mobile Radio, 45 W, 400-470MHz UHF, 128 Channels DTMF
Regular price
$298.32 USD
Regular price
$372.90 USD
Sale price
$298.32 USD
Unit price
per
Tax included.
Couldn't load pickup availability
Frequency range 400-470MHz
Features:
• Display of 8 alphanumeric characters
• Channel browser normal/priority
• Anti-reading lock
• Password for switch-on, reading and writing
• Panic button
• Programmable minimum volume level
• Port for optional cards (encryptor)
• Accessory port for repeater connection or other application (req. OPC-2078 and/or OPC-1939)
• Programmable via software CS-F3020_5010_5020
• 128 channels
• 45 W (UHF)
Features:
• Display of 8 alphanumeric characters
• Channel browser normal/priority
• Anti-reading lock
• Password for switch-on, reading and writing
• Panic button
• Programmable minimum volume level
• Port for optional cards (encryptor)
• Accessory port for repeater connection or other application (req. OPC-2078 and/or OPC-1939)
• Programmable via software CS-F3020_5010_5020
• 128 channels
• 45 W (UHF)
5-tones signaling
• PTT-ID
• On screen ID (ANI)
• Selective call
• Group call
• Remote auto transmission
• Emergency call
• Radio remote monitoring (Radio check)
• Radio activation and deactivation via air
DTMF signaling:
• PTT-ID
• On screen ID (ANI) eq. UT-108R
• Emergency call
MDC-1200 signaling:
• PTT-ID
• On screen id (5 alias)
• Radio activation and deactivation via air
• Radio remote monitoring (Radio check)
• Smart emergency call
• Includes power cord, mic. (HM-152) and mounting
General:
• Frequency coverage: 400-470 MHz, 540-512 MHz
• Number of channels: 128 / 8 zones
• Channel spacing: 12.5/25 kHz, 15/30 kHz
• PLL channel step: 2.5 kHz, 3.125 kHz (VHF)
• Power supply requirement: 13.6 Vdc
• Antenna impedance: 50Ω (SO-239)
• Operating temperature: -22º to 140º F
• Current drain (approx.):
-Tx (50W/45W):: 14.0 A
-Rx Audio max.:: 1.2 A
-Standby:: 300 mA
• Dimensions: 5 29/32 x 1 9/16 x 6 19/32” in.
• Weight: 2.4 lb
Includes:
• HM-152 mic
• OPC-1132A power chord
• Bracket
• Microphone clip
• Approved by the FCC and FCC
• Manufactured in an environment ISO 9001:2008
• Meets military standards MIL-STD 810 C, D, E, and F
• PTT-ID
• On screen id (5 alias)
• Radio activation and deactivation via air
• Radio remote monitoring (Radio check)
• Smart emergency call
• Includes power cord, mic. (HM-152) and mounting
General:
• Frequency coverage: 400-470 MHz, 540-512 MHz
• Number of channels: 128 / 8 zones
• Channel spacing: 12.5/25 kHz, 15/30 kHz
• PLL channel step: 2.5 kHz, 3.125 kHz (VHF)
• Power supply requirement: 13.6 Vdc
• Antenna impedance: 50Ω (SO-239)
• Operating temperature: -22º to 140º F
• Current drain (approx.):
-Tx (50W/45W):: 14.0 A
-Rx Audio max.:: 1.2 A
-Standby:: 300 mA
• Dimensions: 5 29/32 x 1 9/16 x 6 19/32” in.
• Weight: 2.4 lb
Includes:
• HM-152 mic
• OPC-1132A power chord
• Bracket
• Microphone clip
• Approved by the FCC and FCC
• Manufactured in an environment ISO 9001:2008
• Meets military standards MIL-STD 810 C, D, E, and F
