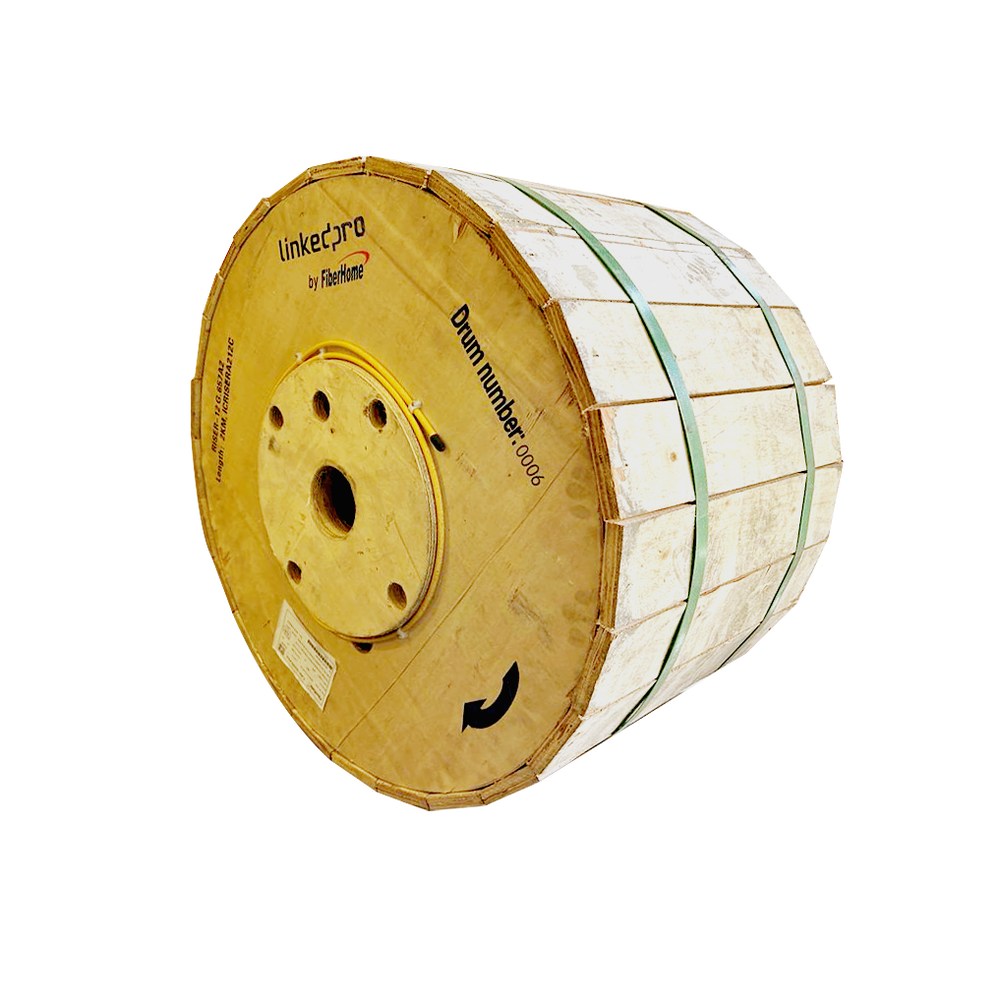

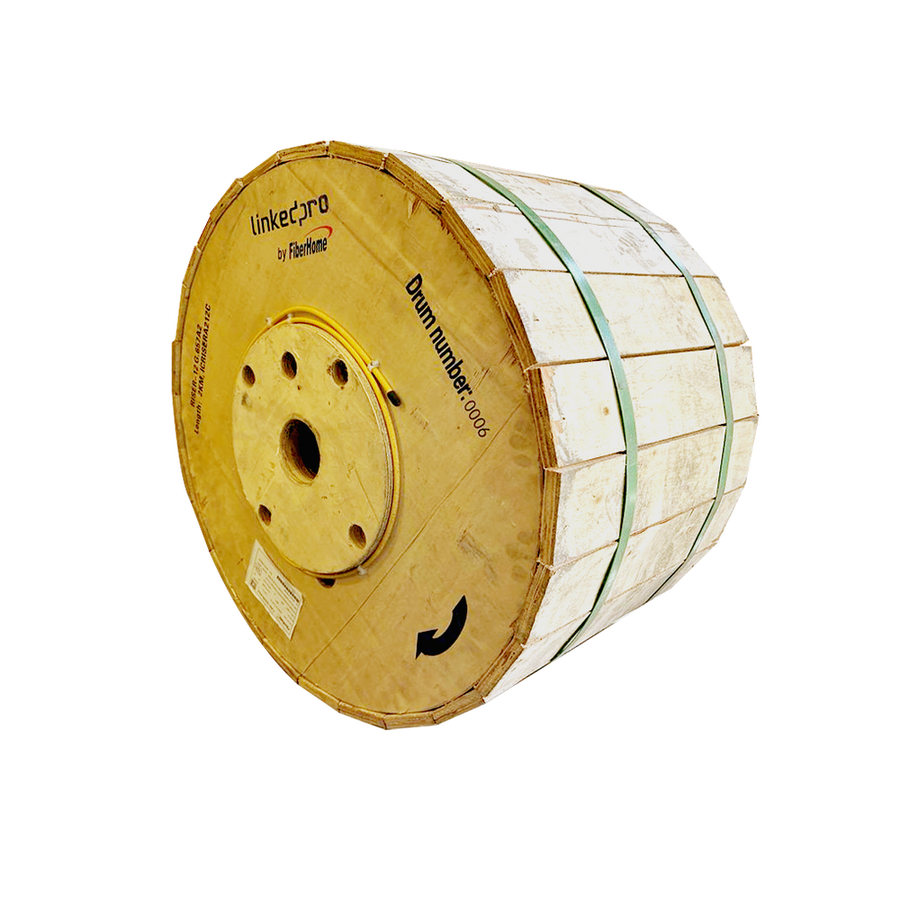

Linkedpro IC-RISER-A2-12C 12-Fiber G.657A2 Indoor Riser OFNR Cable
Product identifier
SKU
IC-RISER-A2-12C
$11.95
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
12-Fiber Indoor Riser Rated (OFNR) Tight-Buffered Distribution Cable — High-Performance G.657A2
The LinkedPro by FiberHome IC-RISER-A2-12C fiber optic cable is engineered for both horizontal and vertical indoor installations. Featuring a Riser fire-retardant jacket (OFNR) and G.657A2 single-mode strands, this cable supports a small bend radius, making it ideal for routing within manifolds, manholes, or tubing.
Technical Specifications
- Fiber Count: 12 fibers.
- Fiber Type: Optical Fiber single-mode cable G.657A2.
- Construction: Tight Buffer (900 µm).
- Sheath/Jacket: OFNR Riser / LSZH.
- Mechanical Strength: Maximum Tensile Load of 600 N (≈ 135 lbf).
- Cable Diameter: 6.5 ± 0.5 mm (≈ 0.25 in).
- Operation Temperature Range: 14°F to 140°F (-10°C to +60°C).
- Storage Temperature Range: -4°F to 140°F (-20°C to +60°C).
- Pricing: Price per Meter (Sold by the Meter).
Key Features
- G.657A2 Single Mode Fiber for Superior Bend Performance
- Tight Buffer 900µm Construction for Enhanced Fiber Protection
- OFNR Riser Rated Fire-Retardant LSZH Jacket for Safety
- Minimum Bend Radius of 10D During Operation for Flexibility
- 600N Tensile Strength and 500N/10cm Crush Resistance
- Dielectric Design Without Metallic Components for Safety
