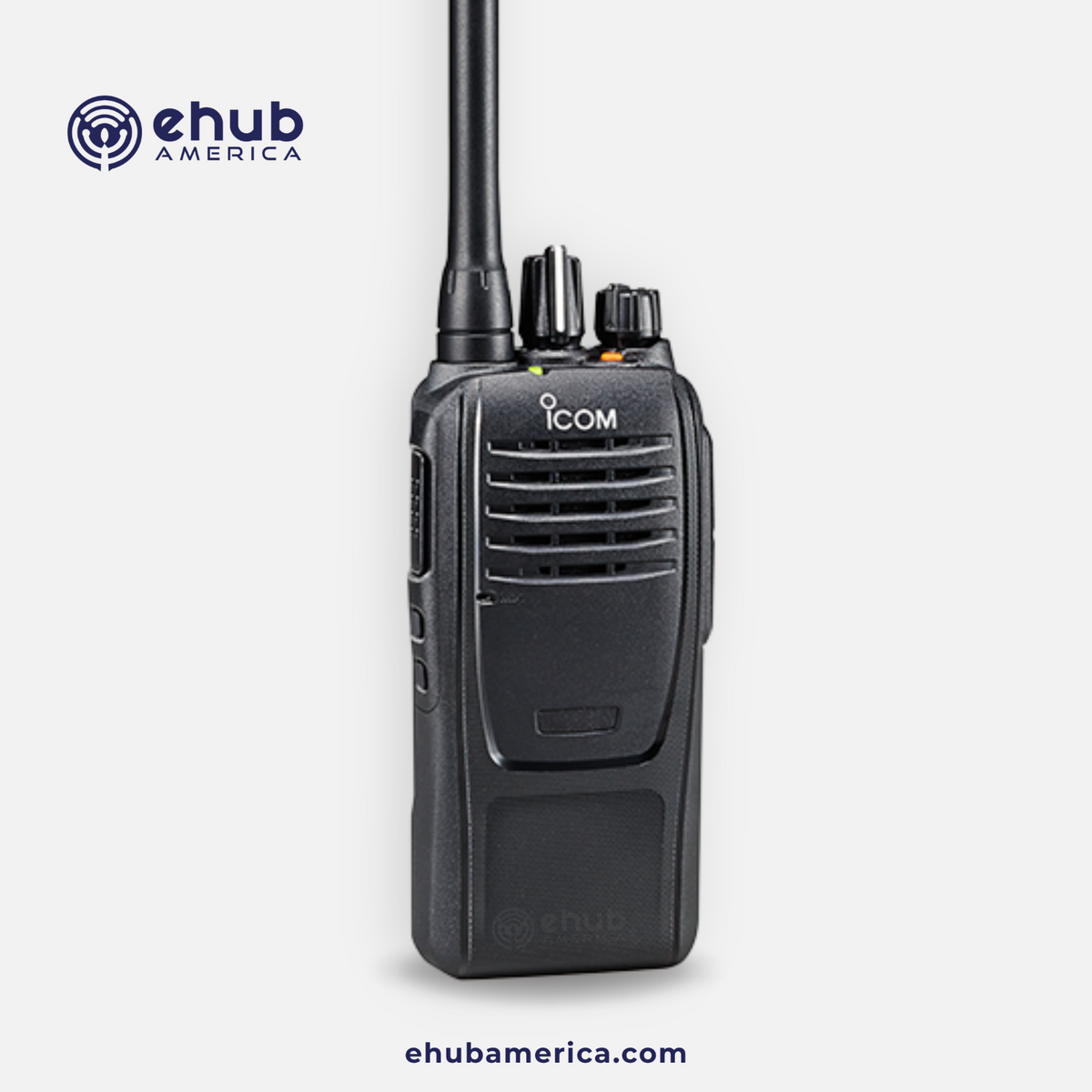

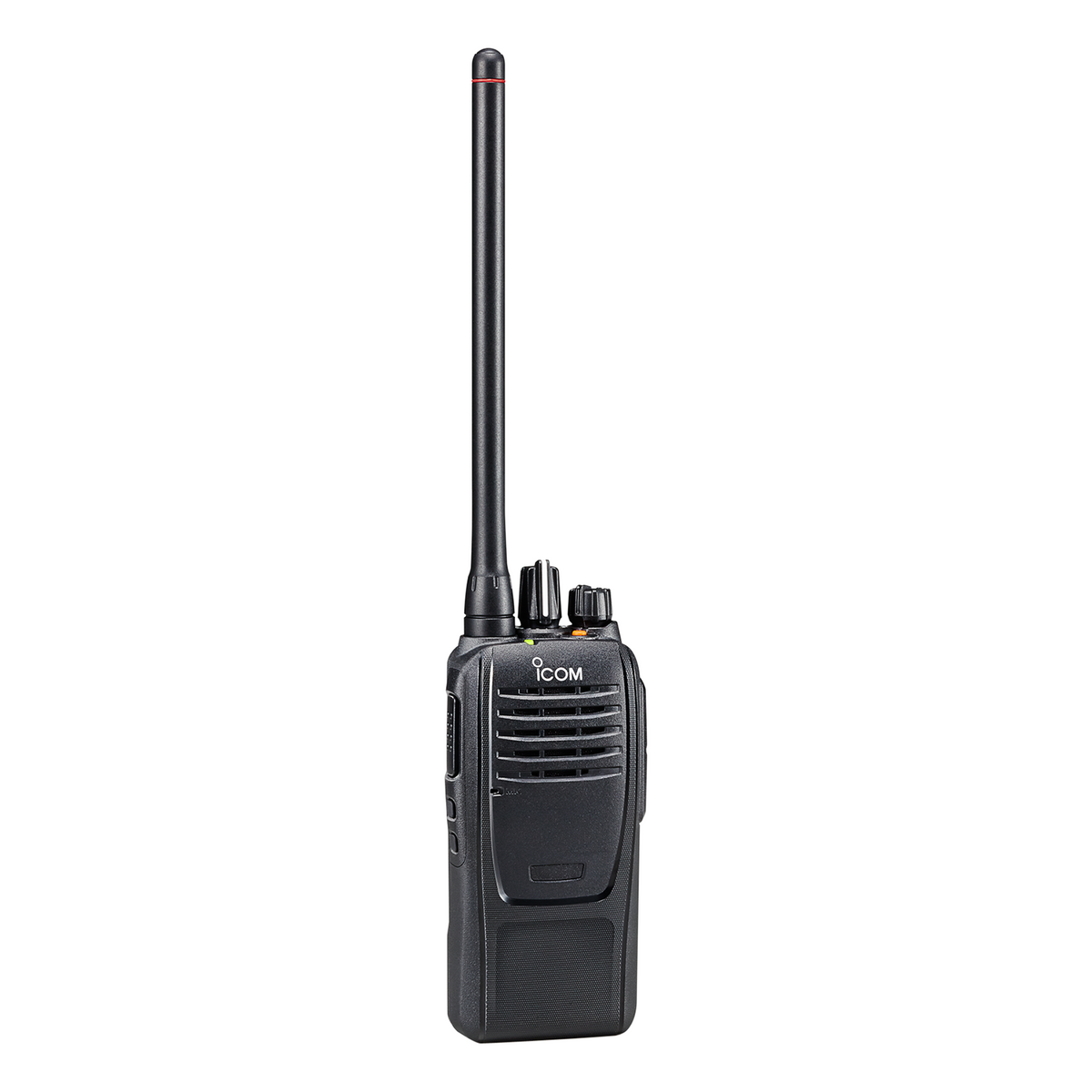

ICOM F1100D 53 USA F1100D DIGITAL RADIO 136-174 MHZ IDAS 16 CH NO DISPLAY TYPE-D TRUNKING IP67
ICOM
Icom F1100D 53 USA F1100D Digital Radio 136-174 Mhz IDAS 16 CH No Display type-D Trunking IP67
SKU
VHF 136–174 MHz digital/analog portable radio supporting NXDN IDAS operation.
$436.65
40 in stock
- Ships from our Miami warehouse · in-stock same-day, most orders within 24h
- Genuine products · real support in EN · ES · PT
- Easy 30-day returns & RMA support
RF
- Frequency Coverage
- Frequency Coverage: 136–174 MHz
- Channel Capacity
- Channel Capacity: 16 channels
- Emission Designators (USA)
- Emission Designators (USA): 11K0F3E, 4K00F1E, 4K00F1D
- Output Power
- Output Power: 5 W / 2 W / 1 W
- Maximum Frequency Deviation
- Maximum Frequency Deviation: ±5.0 kHz (25 kHz), ±2.5 kHz (12.5 kHz)
- Frequency Stability
- Frequency Stability: ±2.0 ppm
- Analog Sensitivity (12 dB SINAD)
- Analog Sensitivity (12 dB SINAD): 0.24 μV typical
- Digital Sensitivity (5% BER)
- Digital Sensitivity (5% BER): –9 dBμV typical (0.18 μV)
- Adjacent Channel Selectivity
- Adjacent Channel Selectivity: 77 dB (25 kHz), 67 dB (12.5 kHz)
- AF Output Power (Internal SP)
- AF Output Power (Internal SP): 1500 mW typical
Hardware
- Antenna Impedance
- Antenna Impedance: 50Ω
- External Mic Connector
- External Mic Connector: 3-conductor 2.5 mm / 2.2 kΩ
- External Speaker Connector
- External Speaker Connector: 3.5 mm / 8 Ω
Physical
- Operating Temperature
- Operating Temperature: –30°C to +60°C (USA/EXP)
- Dimensions (W×H×D)
- Dimensions (W×H×D): 52.2 × 111.8 × 29.4 mm (with BP-280)
- Weight
- Weight: 258 g (with BP-280 and MB-133)
General
- Power Supply
- Power Supply: 7.5 V DC nominal
- Current Drain (Tx)
- Current Drain (Tx): 1.6 A (5 W), 1.4 A (4 W)
- Current Drain (Rx)
- Current Drain (Rx): 520 mA (max audio), 110 mA (standby)
- FSK Error
- FSK Error: 5% maximum
- Spurious Response Rejection
- Spurious Response Rejection: 80 dB typical
- MDC-1200
- MDC-1200: PTT ID, Emergency Call, Radio Check, Stun/Revive
- 5-Tone
- 5-Tone: PTT ID, Selective Call, Group Call, Emergency, Radio Check, Radio Kill
- DTMF
- DTMF: PTT ID, Emergency Call
