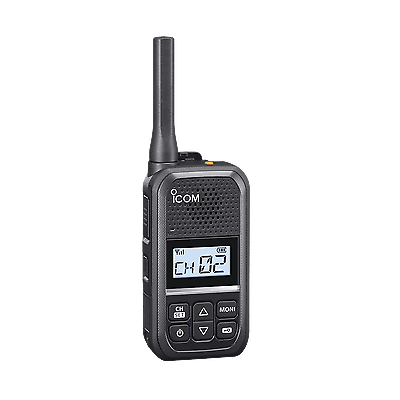

This Icom F200 Portable Radio is the perfect choice for anyone in need of reliable communication. With 16 channels and 2 watts of power, this unit is made to deliver high-quality audio over long distances. The radio is designed to operate in the UHF band, with a frequency range of 450-470 MHz, making it suitable for a variety of different applications. It is also built to withstand the rigors of daily use, with an IP54 rating for dust and water resistance.
This Portable Radio from Icom is a great choice for anyone looking for a high-quality communication solution. With its durable construction and powerful performance, it is sure to keep you connected even in challenging environments. So whether you're using it for work or play, this radio is sure to meet your needs.
General
IC-F200 (USA, EXP) | ||
---|---|---|
Frequency Coverage | 450 ~ 470 MHz | |
Number of Channels | 16 Channels | |
Type of Emissions | USA Version 11K0F3E (12.5 kHz, Narrow) EXP Version 11K0F3E (12.5 kHz, Narrow), 16K0F3E (25 kHz, Wide) |
|
Antenna impedance | 50 Ω | |
Input Impedance (MIC) | 2200 Ω | |
Output Impedance (Audio) | 8 Ω | |
Operation Temperature Range | -30 ℃ ~ 60 ℃, -22 ℉ ~ 140 ℉ | |
Power Supply Voltage | 3.7 V DC nominal (Negative Ground) | |
Current drain (Approximate) |
Receive Max. Audio | 0.8 A Maximum |
Transmit | 1.8 A Maximum | |
Dimensions (H × W × D) | 156.0 × 50.0 × 26.7 mm, 6.1 × 2.0 × 1.1 inches, including antenna 94.0 × 50.0 × 26.7 mm, 3.7 × 2.0 × 1.1 inches, excluding antenna |
|
Weight (Approximate) | 157 g , 5.5 oz |
TRANSMITTER
IC-F200 (USA, EXP) | ||
---|---|---|
Output power | 2.0 W or less | |
Modulation | Frequency Modulation | |
Maximum Permissible Frequency Deviation | N: ±2.5 kHz for USA, EXP W: ±5.0 kHz for EXP |
|
Frequency Stability | ± 500 Hz | |
Spurious Emissions | 80 dB typical | |
Adjacent Channel Power | N: 65 dB typical for USA, EXP W: 73 dB typical for EXP |
|
Audio Harmonic Distortion (AF 1 kHz 40 % Deviation) |
5.0 % maximum | |
FM Hum and Noise | N: 56 dB typical for USA, EXP W: 56 dB typical for EXP |
|
Limiting Charact of Modulator | 70 % ~ 100 % maximum deviation |
RECEIVER
IC-F200 (USA, EXP) | ||
---|---|---|
Sensitivity (at 12 dB SINAD) | -122 dBm typical (0.18 μV typ.) | |
Audio Power Output | Internal Speaker | 600 mW typical @5 % distortion with 4 Ω |
External Speaker | 150 mW typical @5 % distortion with 8 Ω | |
Adjacent Channel Selectivity | N: 52 dB typical for USA, EXP W: 68 dB typical for EXP |
|
Intermodulation | 64 dB typical | |
Hum and Noise | N: 47 dB typical for USA, EXP W: 51 dB typical for EXP |
|
Squelch Sensitivity (Threshold) | -123 dBm typical |
Applicable IP Rating
Ingress Protection Standard | ||
---|---|---|
Dust and Water | IP54 (Dust-protection, water resistance) |
All stated specifications are subject to change without notice or obligation.
Supplied Accessories
- MB-127 Belt Clip
- BP-304A Battery Pack
- BC-262 Charging Cradle
