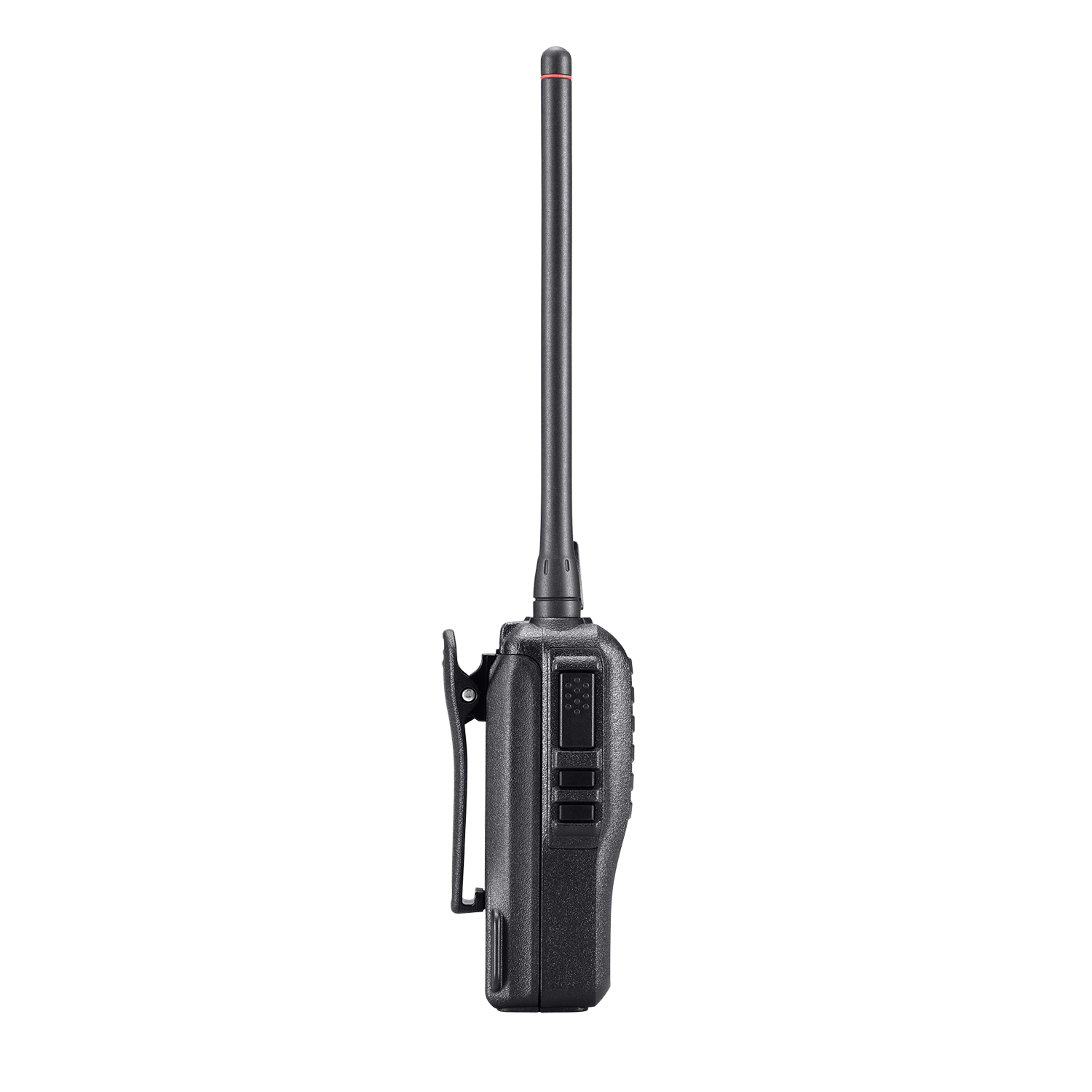

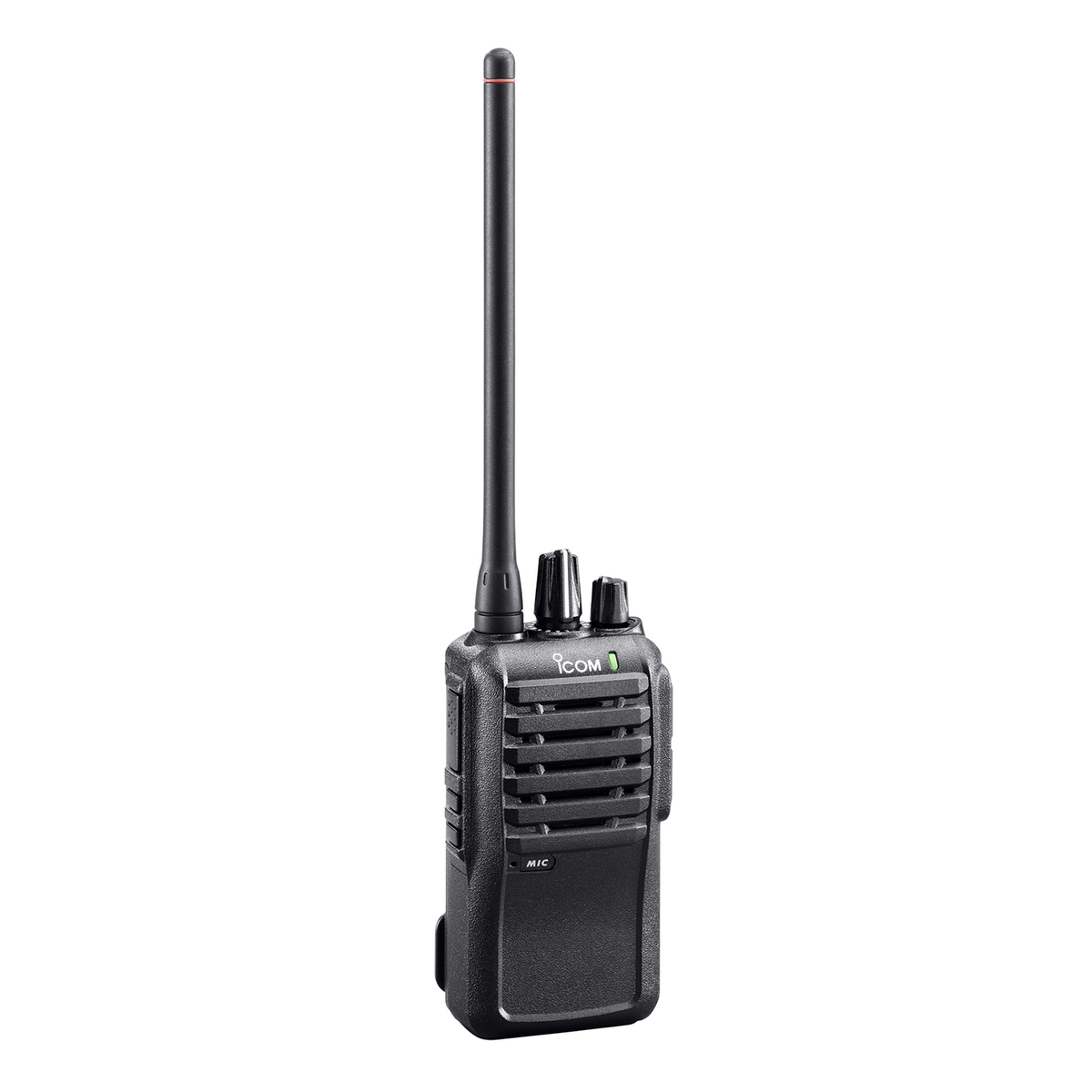

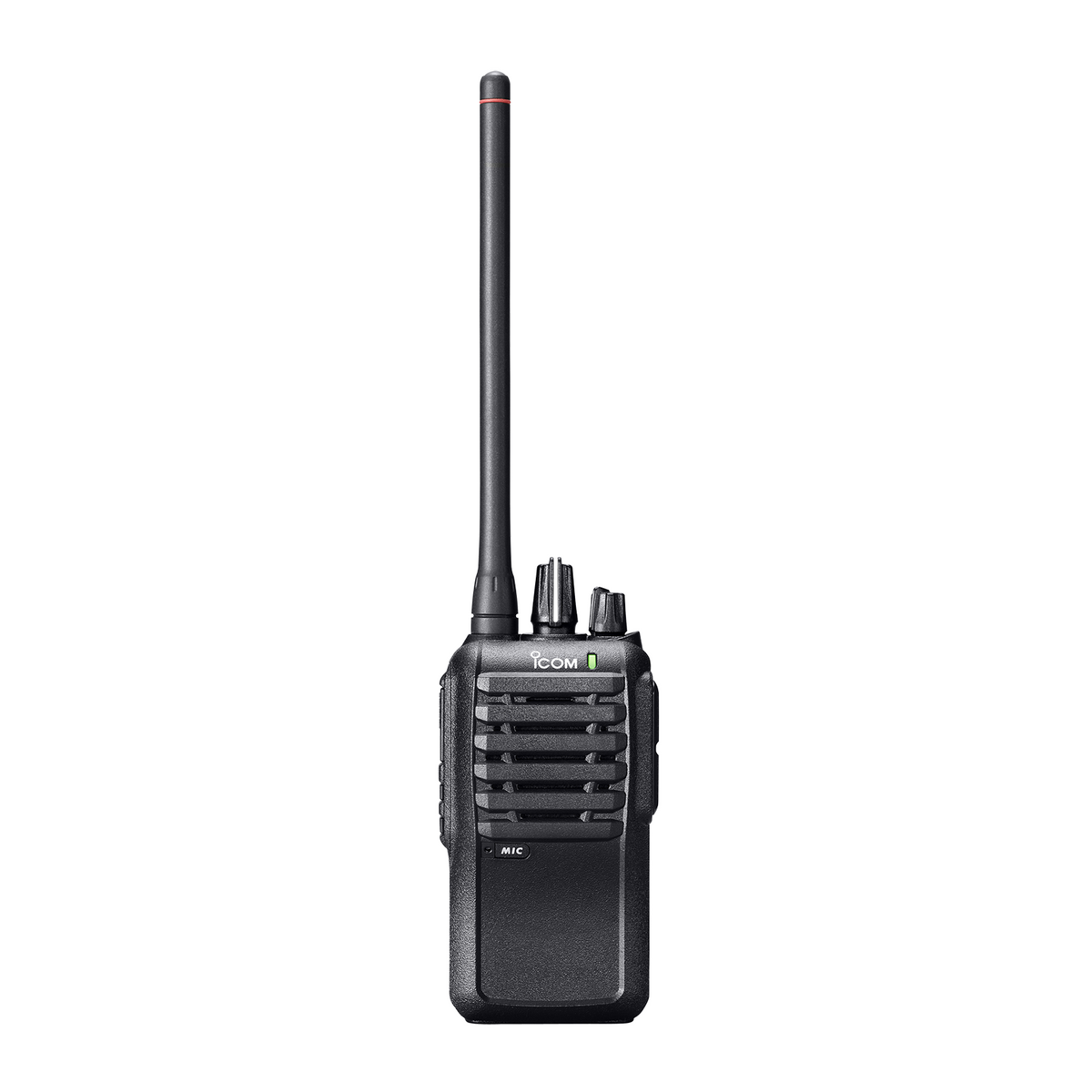

Icom F3001 51 RC USA VHF Two-Way Radio 5W 16-Channel 136-174 MHz IP54

PRODUCT TITLE

Icom F3001 51 RC USA VHF Two-Way Radio 5W 16-Channel 136-174 MHz IP54

PRODUCT OVERVIEW

Unbreakable Communications, Unmatched Performance: Introducing the F3001 VHF Radio

PRODUCT TYPE / CATEGORY

• Networking
• Radio Parts

KEY FEATURES

• Built-in VOX: Free your hands and focus on the task at hand with the integrated VOX function. Adjust the VOX gain and delay time to suit your specific needs, ensuring smooth communication without interruptions.
• Selective Calling and Enhanced Security: The 2-tone and 5-tone signaling systems allow you to establish selective calls, activate the discreet silent standby mode, and use advanced functions like "stun" and "revive" for complete control over communications.
• Priority Scan: Stay on top of critical mission channels without missing any vital communication. The priority scan function lets you monitor one or two priority channels while scanning other channels, ensuring an immediate response to any situation.
• Unmatched Battery Life: Forget interruptions and work through long shifts with the 2250 mAh BP-298 battery, providing up to 22 hours of battery life.
• Ergonomic and Compact Design: Weighing just 270g and featuring a meticulously designed ergonomic shape, this radio fits perfectly in your hand and is comfortable to carry for extended periods.
• Configuration Versatility: Customize the radio’s configuration to meet your team's specific needs with 16 programmable channels.
• Easy Programming: Set up and manage the radio intuitively and efficiently with the CS-F4003 programming software.
• Frequency Range: 136-174 MHz
• Channel Spacing: 12.5kHz / 25kHz (selectable)
• Channels: 16
• Output Power: 5W / 2W / 1W (Selectable)
• Battery Type: Li-Ion (BP-298)
• Battery Capacity: 2250mAh
• Battery Life (approx.): 22 hours (Tx: Rx: Standby = 5:5:90, Power save ON)
• Operating Temperature: -30°C to +60°C
• Dimensions: 58 x 111 x 35.5 mm
• Weight: 270g
• Frequency Stability: ±2.5ppm

TECHNICAL SPECIFICATIONS

• Brand: Icom
• Model: F3001 51 RC USA
• Product Type: Radio Parts
• General:
• Frequency Range: 136-174 MHz
• Channel Spacing: 12.5kHz / 25kHz (selectable)
• Channels: 16
• Output Power: 5W / 2W / 1W (Selectable)
• Battery Type: Li-Ion (BP-298)
• Battery Capacity: 2250mAh
• Battery Life (approx.): 22 hours (Tx: Rx: Standby = 5:5:90, Power save ON)
• Operating Temperature: -30°C to +60°C
• Dimensions: 58 x 111 x 35.5 mm
• Weight: 270g
• Transmitter:
• Frequency Stability: ±2.5ppm
• Spurious Emissions: ≤ 70dB
• Modulation: F3E (11k/16k)
• Audio Distortion: ≤ 1.5%
• Receiver:
• Sensitivity: ≤ 0.25µV (12dB SINAD)
• Adjacent Channel Selectivity: ≥ 73dB (wide), ≥ 65dB (narrow)
• Spurious Rejection: ≥ 70dB
• Intermodulation: ≥ 74dB
• Audio Output Power: 1500mW (internal speaker)
• Hum and Noise: ≤ 52dB
• Additional Features:
• Environmental Resistance: IP54 (Dust and Water), MIL-STD-810 C/D/E/F/G
• Built-in VOX: Yes
• Signaling: MDC-1200, DTMF, 5 Tones
• Calling Functions: PTT-ID, Emergency Call, Selective Call, Group Call
• Security Features: Stun/Revive, Radio Kill, Remote Monitor
