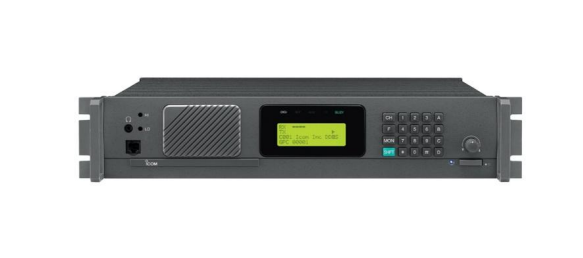

Icom FR9020 11 440-475MHz UHF Repeater P25 100W
Availability confirmed with your quote.
Need help confirming fit? Talk to a specialist →- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
PRODUCT OVERVIEW
The Icom FR9020 11 is a UHF P25 digital repeater designed for professional communications systems. Operating across 440-475MHz with 100W output power, it supports P25 conventional, analog FM, and mixed-mode operation in a compact 2U rack-mount platform.
PRODUCT TYPE
UHF Repeaters
KEY FEATURES
• P25 conventional digital repeater
• Analog FM and mixed-mode operation
• 100W UHF output power
• 500 memory channel capacity
• Emergency calling support
• Call alert functionality
• Radio check capability
• Radio inhibit (stun) and uninhibit (revive)
• Status update and status request functions
• Individual, group, and all-call operation
• OTAR (Over-The-Air Rekeying) support
• SBC call log functionality
• D-SUB 25-pin accessory connector
• Programmable CTCSS, DTCS, and NAC signaling
• CW ID transmission
• Automatic error detection
• P25 self-test and key test modes
• Low standby current operation
• Rugged construction for demanding environments
• 2U rack-mount design
TECHNICAL SPECIFICATIONS
• Brand: Icom
• Model: FR9020 11
• Frequency Range: 440-475 MHz
• RF Output Power: 100W
• Technology: P25 Digital
• Operating Modes: P25 Conventional, Analog FM, Mixed Mode
• Channel Capacity: 500 Channels
• Channel Spacing: 12.5 kHz
• Frequency Stability: ±1.5 ppm (Digital Mode)
• Accessory Connector: D-SUB 25-Pin
• Standby Current: 280 mA
• MIL Standard: MIL-STD 810G
• Size: 18.98 x 3.46 x 16.26 in
• Weight: Approximately 24.3 lb (11.0 kg)
• Status Indicators: 5 Color LEDs
• Form Factor: 19-inch Rack Mount
• Height: 2U
• Includes: DC Power Cable Connector
