Icom M510 PLUS EVO 51 USA 25W Marine VHF Radio DSC AIS

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐈𝐓𝐋𝐄

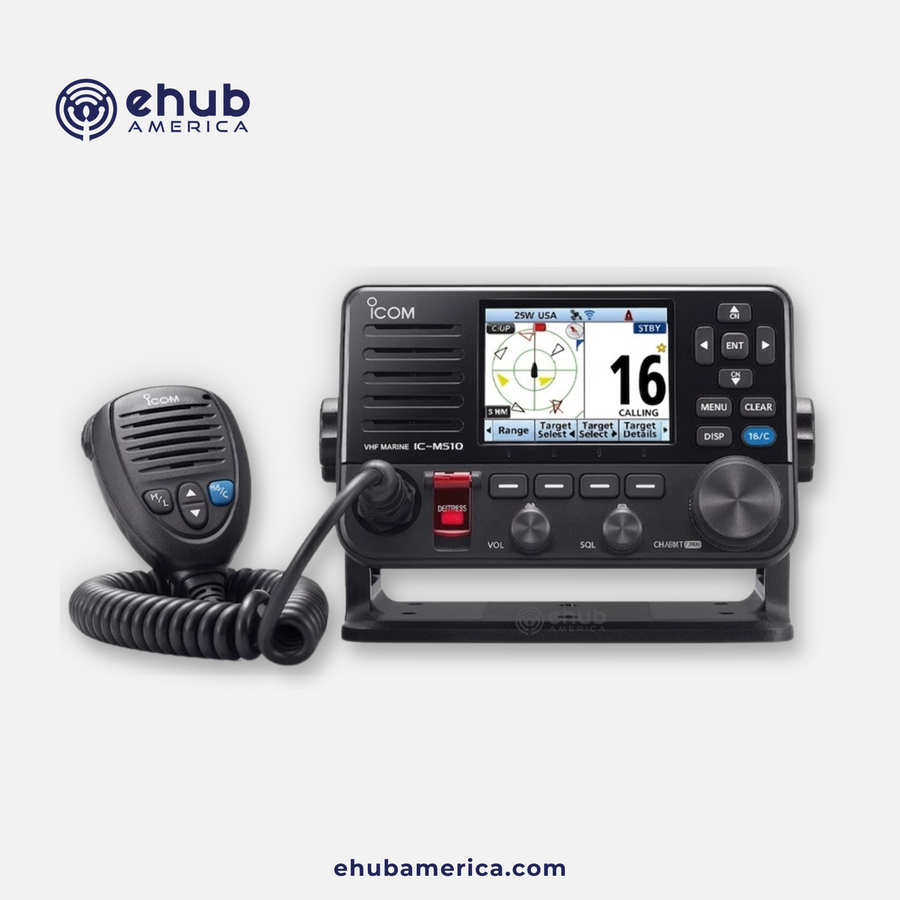

Icom IC-M510 PLUS EVO 51 VHF Fixed Mount Marine Radio Class D DSC NMEA 2000 with AIS

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐎𝐕𝐄𝐑𝐕𝐈𝐄𝐖
The Icom IC-M510 PLUS EVO 51 is a fixed mount VHF marine transceiver with Class D DSC, integrated AIS receiver, and NMEA 2000 connectivity. It supports 25W/1W transmit power and standard USA, CAN, INT, and WX marine channels.

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐘𝐏𝐄 / 𝐂𝐀𝐓𝐄𝐆𝐎𝐑𝐘
Two-Way Radios
Marine Radios

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐊𝐄𝐘 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒
• Fixed mount VHF marine transceiver
• Class D Digital Selective Calling (DSC)
• Integrated AIS receiver (AIS1: 161.975 MHz / AIS2: 162.025 MHz)
• NMEA 2000 network connectivity
• 25W or 1W selectable transmit output
• Supports USA, CAN, INT and WX channels
• Designed for 13.8V DC marine power systems
• 50 Ω antenna impedance

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐓𝐄𝐂𝐇𝐍𝐈𝐂𝐀𝐋 𝐒𝐏𝐄𝐂𝐈𝐅𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
General:
• TX Frequency Range: 156.025–157.425 MHz
• RX Frequency Range: 156.050–163.275 MHz
• DSC Frequency: 156.525 MHz
• AIS Frequencies: 161.975 MHz / 162.025 MHz
• Usable Channels: USA, CAN, INT, WX
• Emission: 16K0G3E (FM), 16K0G2B (DSC), 16K0GXW (AIS)
• Power Supply: 13.8 V DC (11.7–15.9 V DC)
• Antenna Impedance: 50 Ω
• Operating Temperature: –20°C to +60°C (–4°F to +140°F)
• Weight: Approx. 730 g (1.6 lb), excluding microphone

Current Drain (at 13.8 V DC):
• TX (25 W): 5.5 A
• RX (Max Audio): 3.3 A

Transmitter:
• Output Power: 25 W / 1 W
• Maximum Frequency Deviation: ±5 kHz
• Frequency Tolerance: ±0.5 kHz
• Spurious Emissions: Less than −70 dBc (at 25 W)
• Residual Modulation: More than 40 dB
• Adjacent Channel Power: More than 70 dB

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
