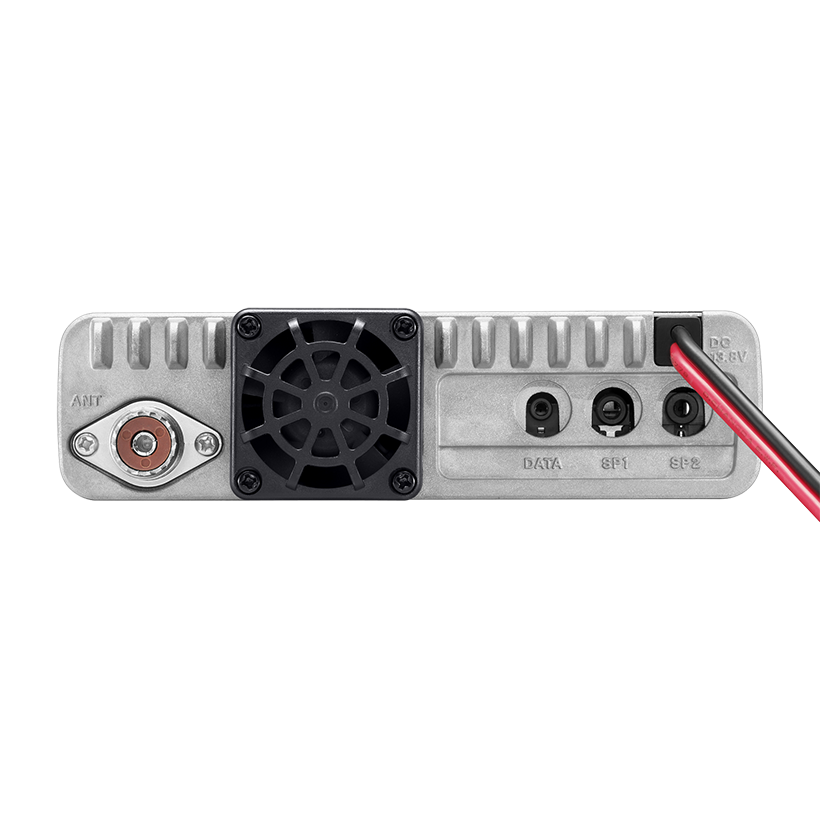

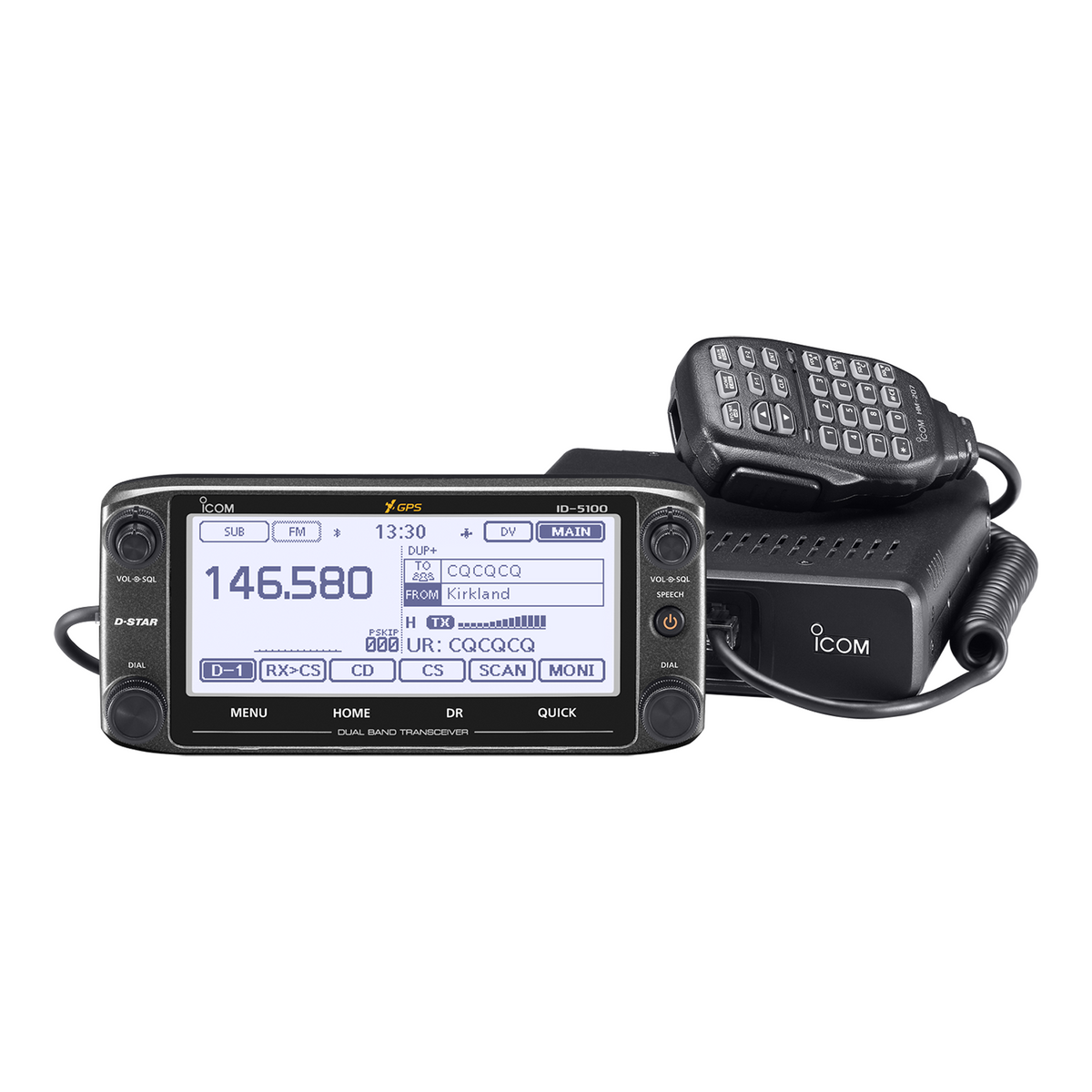

ICOM ID-5100A Deluxe Touchscreen 2m/70cm, 50W Mobile w/D-STAR/GPS
ICOM ID-5100A Deluxe Touchscreen 2m/70cm, 50W Mobile w/D-STAR/GPS
Regular price
$538.99
Regular price
Sale price
$538.99
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Low stock: 4 left
Couldn't load pickup availability
Tags: Icom, Mobile radio uhf
Share





Authorized Icom Dealer
General
Frequency coverage | USA Version |
Transmit | 144–148, 430–450*1 |
---|---|---|---|
Receiver | 118–174, 375–550*1 | ||
EXP Version | Transmit | 137–174, 400–470*2 | |
Receiver | 118–174, 375–550*2 | ||
Type of emission | F2D, F3E, F7W | ||
Mode | DV, FM, FM-N AM (RX only), AM-N (RX only)* * Depending on version |
||
Operating temperature range | −10°C to +60°C; +14°F to +140°F |
||
Frequency stability | ±2.5 ppm (−10°C to +60°C on the basis of 25°C) |
||
Digital TX speed | 4.8 kbps | ||
Voice coding speed | 2.4 kbps | ||
Antenna impedance | 50 Ω (SO-239) | ||
Number of memory channels | 1000 regular channels, 4 call channels, 50 program scan edges and 1200 repeater memories |
||
Power supply requirements | 13.8 V DC ±15% | ||
Current drain | RX Stand-by | 1.2 A | |
Max. audio | 1.8 A (Dualwatch, with Ext. SP 8Ω load) |
||
TX | 13.0 A | ||
Dimensions (W×H×D, projections not included) |
Main unit | 150×40×172.6 mm; 5.91×1.57×6.8 in |
|
Controller | 182.2×81.5×24.7 mm; 7.17×3.21×0.97 in |
||
Weight (approx.) | Main unit | 1.3 kg; 2.87 lb | |
Controller | 260 g; 9.17 oz |
Guaranteed range:
*1 144–148, 440–450 MHz.
*2 144–148, 430–440 MHz
Transmitter
Output power | 50 W, 15 W, 5 W | |
---|---|---|
Modulation system | FM, FM-N | FM reactance modulation |
DV | GMSK reactance modulation | |
Max. frequency deviation | ±5.0 kHz/±2.5 kHz (FM/FM-N) |
|
Spurious emissions | Less than −60 dBc | |
Microphone impedance | 600 Ω (8-pin modular jack) |
Receiver
Intermediate frequencies | A band | 38.85 MHz/450 kHz (1st/2nd) |
---|---|---|
B band | 46.35 MHz/450 kHz (1st/2nd) | |
Sensitivity | FM/FM-N (12 dB SINAD) | Less than 0.18 μV (amateur bands only) |
DV (1% BER) |
Less than 0.28 μV | |
Receiver sensitivity (Not guaranteed, for your reference only. Except amateur bands.) |
FM/FM-N (12 dB SINAD) |
137–159.995 MHz Less than 0.32 μV |
160–174.000 MHz Less than 0.56 μV | ||
375–399.995 MHz Less than 0.56 μV | ||
400–499.995 MHz Less than 0.32 μV | ||
500–550.000 MHz Less than 0.56 μV | ||
AM (10 dB S/N) |
118–136.9916 MHz Less than 1 μV | |
Squelch sensitivity | Less than 0.13 μV (at threshold) |
|
Selectivity | FM | More than 60 dB |
FM-N | More than 55 dB | |
DV | More than 50 dB | |
Spurious and image rejections | A band | More than 60/55 dB (VHF/UHF) |
B band | More than 60/60 dB (VHF/UHF) |
|
Audio output power | More than 2.0 W (with 8Ω load, 10% distortion) |
|
External speaker connector | 2-condcutor 3.5 (d) mm (1/8″)/8Ω |
All stated specifications are subject to change without notice or obligation.
Supplied accessories
- Hand microphone, HM-207
- DC power cable, OPC-1132
- Controller cable, OPC-837 (3.5 m; 11.4 ft)
- Controller bracket, MBA-2*
- Microphone hanger
- Spare fuse
(* Not supplied or may differ, depending on version)
