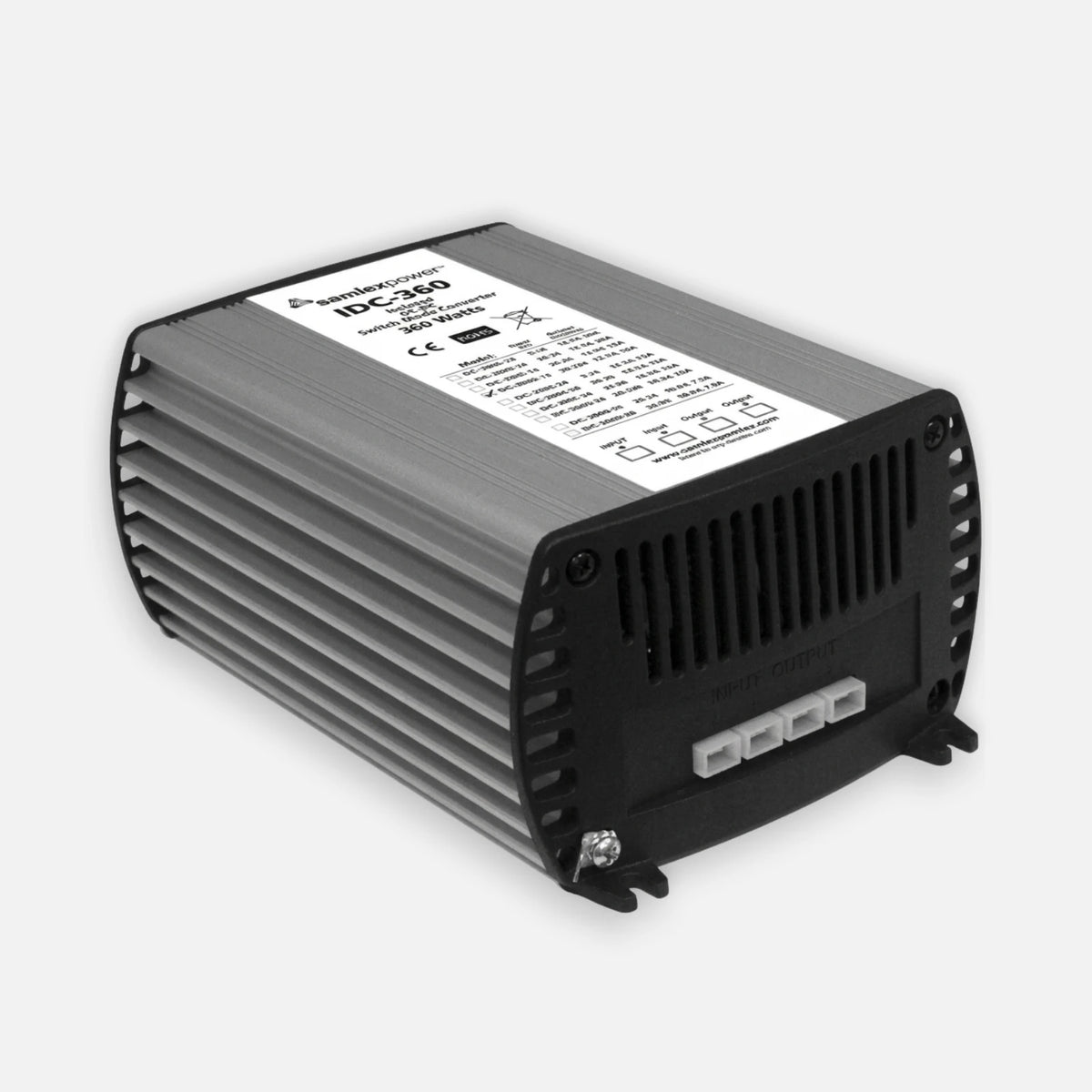

SAMLEX IDC-360C-24 INDUSTRIAL DC-DC CONVERTER 30 TO 60 VDC INPUT 24.9 VDC
SAMLEX
Samlex IDC-360C-24 Industrial DC-DC Converter 30 to 60 Vdc input 24.9 Vdc
SKU
Professional-grade equipment, ready to ship.
$174.87
6 in stock
- Ships from our Miami warehouse · in-stock same-day, most orders within 24h
- Genuine products · real support in EN · ES · PT
- Easy 30-day returns & RMA support
RF
- Input Voltage Range
- Input Voltage Range: 30–60 VDC
Hardware
- Connector Type
- Connector Type: 1/4" Push-On Flat Blade Quick Disconnect
Physical
- Dimensions
- Dimensions: 6.5 x 6.4 x 2.5 Inches (16.5 x 16.3 x 6.4 cm)
- Weight
- Weight: 3.2 lbs (1.45 kg)
General
- Model
- Model: IDC-360C-24
- Series
- Series: IDC-360
- Product Type
- Product Type: Industrial DC-DC Converter
- Output Voltage
- Output Voltage: 24.9 VDC
- Rated Output Current
- Rated Output Current: 15 Amps
- Power Rating
- Power Rating: 360 Watts
- Isolation Type
- Isolation Type: Fully Isolated
- Safety Certification
- Safety Certification: CE
- EMI Standard
- EMI Standard: EN50081-1
- EMC Standard
- EMC Standard: EN50082-1
- Automotive Directive Compliance
- Automotive Directive Compliance: 95/54/CE
- Warranty
- Warranty: 2 Years (Canada/US)
