IFT-802T IP30 Industrial 10/100TX to 100FX Media Converter (MM, SC, 2km) (-40 ~ 75C)
The IFT-802T features dependable data conversion between 10/100Base-TX and 100Base-FX networks at extreme temperatures.
- Speed: 10/100TX to 100FX
- Mode: Multi-Mode
- Wavelength: 1310nm
- Distance: 2km
- Fiber Connection: SC
- Operating Temperature: -40° to 75°C
- TAA Compliant
Note: ALL Industrial units do NOT include a power supply.
100FX Media Converter
The IFT-802T slim type industrial media converter is a fast Ethernet unit that operates efficiently in changing temperatures. The unit operates effectively from -40 to 75°C with ease. The unit features dependable data conversion between 10/100Base-TX and 100Base-FX networks. The IFT-802T showcases flexibility with various Ethernet media at 10/100Mbps on the RJ45 port.
The IFT-802T showcases innovative fiber performance that features simple installation and ease of use. The unit permits a wide variety of power usage. The sleek IFT-802T media converter comes in a strong durable compact case which permits simple mounting. The units permit a handful of voltages that are essential for global use. The IFT-802T features reverse polarity dual-redundant 12V DC to 48V DC power inputs for applications that need backup power units or dual inputs.
| Hardware Specifications | |
| 10/100Base-TX Port | 1 RJ-45 auto-MDI / MDI-X port |

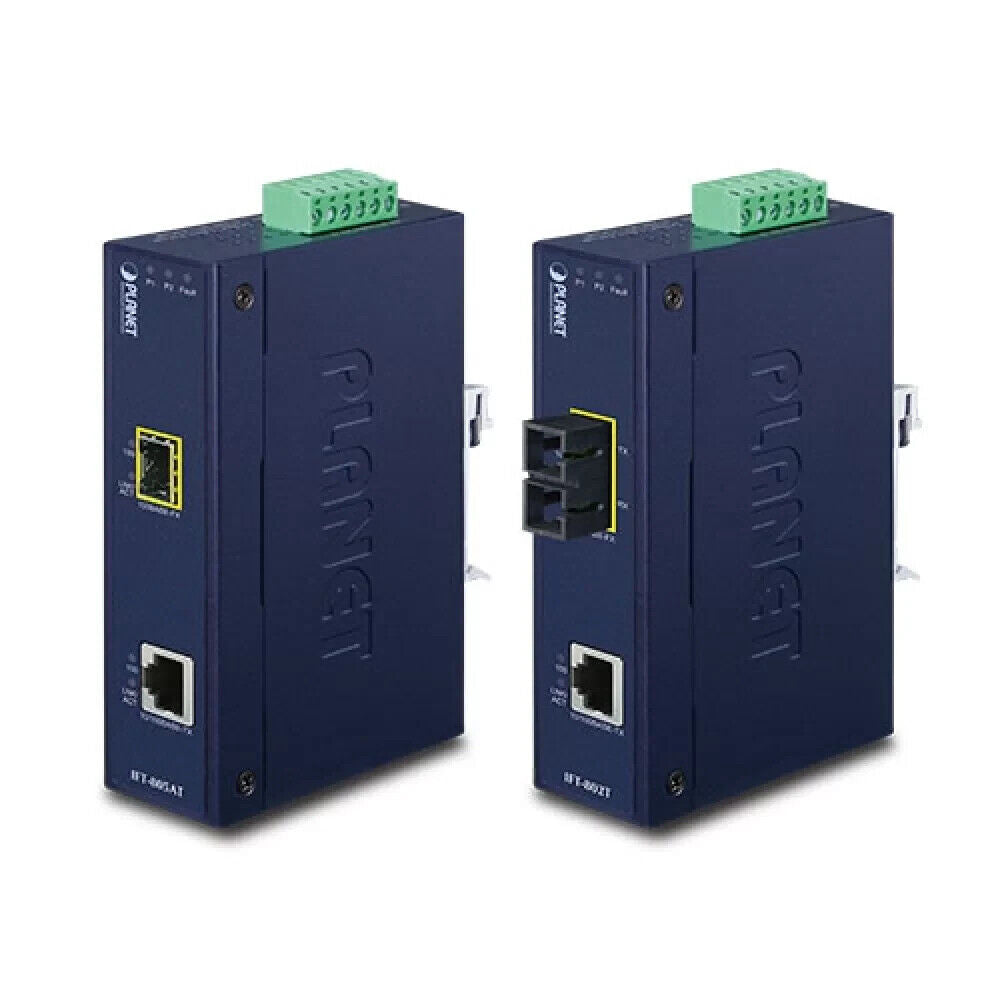

| 100Base-FX Port | IFT-802T: 1 SC interface IFT-802TS15: 1 SC interface IFT-805AT: 1 SFP slot |
| Fiber Port Type | IFT-802T: SC / multi-mode IFT-802TS15: SC / single-mode IFT-805AT: Vary on module |
| Cable Distance | IFT-802T: 2km IFT-802TS15: 15km IFT-805AT: Vary on module |
| Optical Frequency | IFT-802T: 1310nm IFT-802TS15: 1310nm IFT-805AT: Vary on module |
| Launch Power (dBm) |
Max IFT-802T: -14 IFT-802TS15: 0
Min Vary on module |
| Receive Sensitivity (dBm) | IFT-802T: -32 IFT-802TS15: -32 IFT-805AT: Vary on module |
| Maximum Input Power (dBm) | IFT-802T: -14 IFT-802TS15: 0 IFT-805AT: Vary on module |
| Dimensions (W x D x H) | 135 x 85 x 32 mm |
| Weight | 430g |
| Installation | DIN rail kit and wall mount ear |
| Maximum Frame Size | 1522bytes packet size |
| Flow Control | Back pressure for half duplex, IEEE 802.3x pause frame for full duplex |
| Enclosure | IP-30 slim type metal case |
| LED Indicator |
System: Power 1 (Green) Power 2 (Green) Fault (Green) 1 x copper port: 10/100 (Green) LNK/ACT (Green) 1 x 100FX port: 100 (Green) LNK/ACT (Green) |

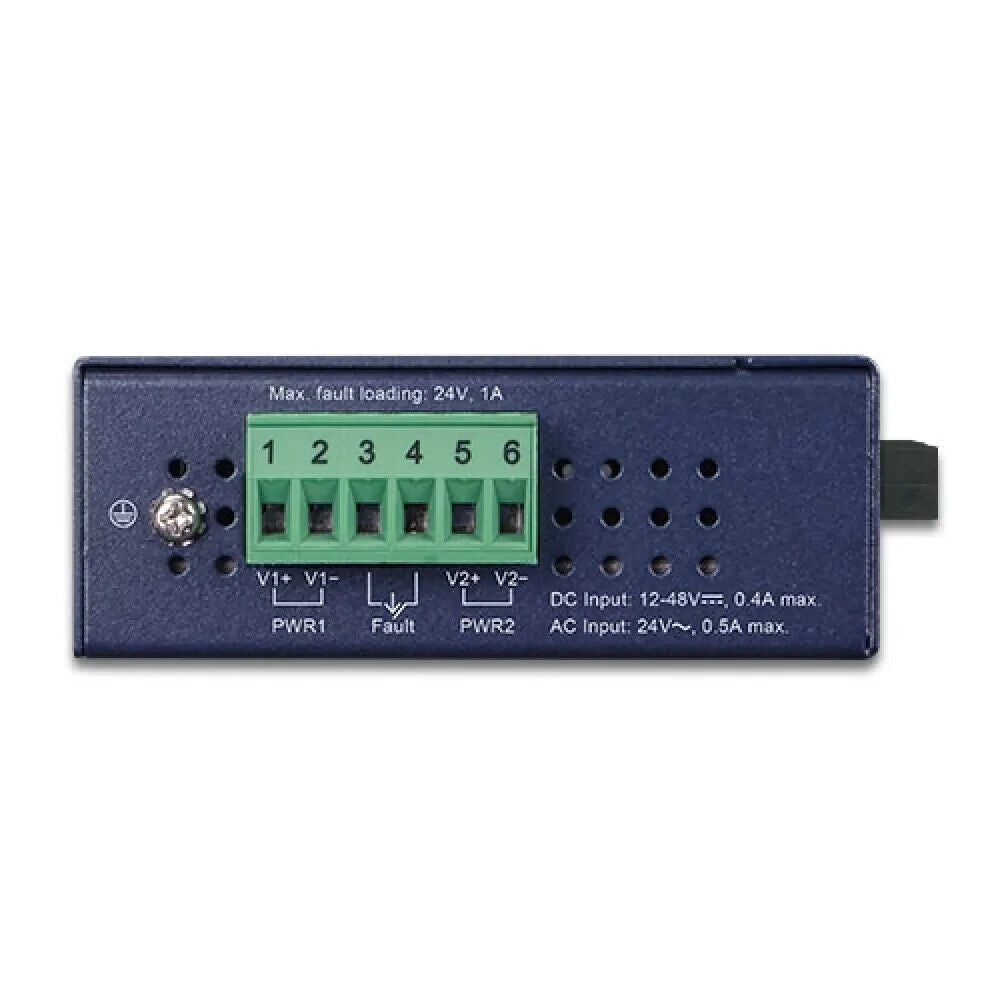

| Power Input | 12 to 48V DC, redundant power input with polarity reverse protection |
| Power Consumption | 3 watts/ 10BTU (maximum) |
| Protection | ESD (Ethernet): 6KV DC Surge (Power): 6KV DC |
| Speed |
Twisted-pair: 10/20Mbps for half / full-duplex 100/200Mbps for half / full duplex Fiber-optic: 200Mbps for full-duplex |
| Network cables |
10/100Base-TX: 2-pair UTP Cat. 3, 4, 5 (100 meters, max.) EIA/TIA-568 100-ohm STP (100 meters, max.) 100Base-FX: IFT-802T: Multi-mode optical fiber 62.5/125μm / 50/125μm (2km) IFT-802TS15: Single-mode optical fiber 9/125μm (15km) IFT-805AT: SFP slot (depending on SFP module) |
| Standards Conformance | |
| Emissions | FCC Class A, CE Class A |
| Standards Compliance | IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX / 100Base-FX IEEE 802.3x flow control and back pressure |
| Stability Testing | IEC60068-2-32 (Free Fall) IEC60068-2-27 (Shock) IEC60068-2-6 (Vibration) |
| Environment | |
| Operating Temperature | -40~75 degrees C |
| Operating Humidity | 5~90% non-condensing |
| Storage Temperature | -40~85 degrees C |
| Storage Humidity | 5~90% non-condensing |
